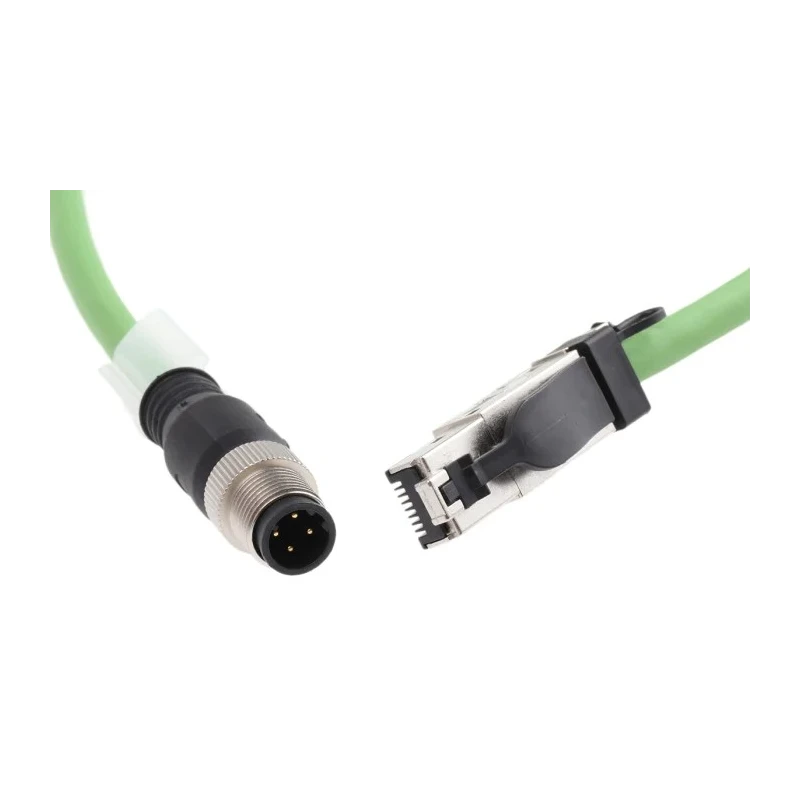

Weidmüller Cat5 Ethernet Cable 4 Core, Green, 1.5 m, SF/UTP Screened, Polyurethane Cat5
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 600V |
| Brand | Weidmüller |
| CROSS SECTIONAL AREA | 22AWG |
| Model | Cat5 |
| Cable Length | 1.5m |
| Outside diameter | 6.7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Wire Material | DIN EN 13602 Cu-ETP-A |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Polyurethane |
| Shield Type | SF/UTP |
| Standards/Approvals | UL |
| Jacket Colour | Green |
| Fire Behaviour | Halogen Free |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| LAN Category | Cat5 |
| Insulating Material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Terminated/Unterminated | Terminated |
| Shielding Material | DIN EN 13602 Cu-ETP-A..B |
| Halogen | to IEC 60754-2 |
| Resistance to spread of flame | to IEC 60332-1 |
| Resistance to oils | acc. to IEC 60811-2-1 |
Key Features
- The cable length is precisely 1.5 meters, suitable for short-distance connections.
- It features 4 stranded tin copper wire cores for reliable signal transmission.
- The SF/UTP screened shielding ensures minimal electromagnetic interference.
- The polyurethane jacket provides strong mechanical protection and flexibility.
- Operates reliably between -50°C and 70°C temperature range.
- The cable is halogen-free, meeting safety standards for fire behavior.
- Standard diameter of 6.7 mm with a conductor cross-sectional area of 22AWG.
- Rated for 600V voltage applications in industrial and automation settings.
Product Description
Weidmüller Cat5 Ethernet Cable Cat5 is a high-quality networking cable engineered for industrial and automation applications. This 1.5-meter cable features 4 stranded cores made of tin copper wire, housed within a durable green polyurethane jacket designed for toughness and flexibility in demanding environments.
The cable is equipped with SF/UTP screening, providing effective shielding against electromagnetic interference, ensuring signal integrity and reliable data transmission. Suitable for operating temperatures from -50°C to 70°C, it maintains performance across a wide ambient temperature range.
Constructed to comply with UL standards and various IEC norms such as IEC 60754-2 for halogen content and IEC 60332-1 for flame resistance, it offers enhanced safety in industrial installations. The cable diameter is 6.7 mm with a 22AWG conductor cross-section, rated for use at up to 600 volts, making it ideal for automation and electrical control systems.
Terminated with connectors meeting IEC 61076-2-101 and IEC 60603-7-51, the cable ensures compatibility with standard Ethernet networking equipment. Its halogen-free and flame-retardant properties make it a safe choice for industrial environments.
Applications include use in PROFINET and ethernet networking for industrial automation, control cabinets, machinery wiring, and data transmission in harsh environmental conditions. Its robust polyurethane jacket protects against oils, chemicals, and mechanical wear.
The cable length is precisely 1.5 meters, suitable for short-distance connections. It features 4 stranded tin copper wire cores for reliable signal transmission. The SF/UTP screened shielding ensures minimal electromagnetic interference.
The polyurethane jacket provides strong mechanical protection and flexibility. Operates reliably between -50°C and 70°C temperature range. The cable is halogen-free, meeting safety standards for fire behavior. Standard diameter of 6.7 mm with a conductor cross-sectional area of 22AWG.
Rated for 600V voltage applications in industrial and automation settings. Designed with terminated connectors compliant with IEC 61076-2-101 and IEC 60603-7-51 standards. Manufactured in Romania with UL approval and meets various international standards.
Explore more high-performance Ethernet Cables and networking solutions in the Electronics & Electricals category at EnvMart, engineered for commercial, industrial, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C.
This Ethernet cable has a length of 1.5 meters, making it suitable for short-distance connections.
It features SF/UTP screened shielding, which helps minimize electromagnetic interference for reliable signal transmission.
The cable is made with stranded tin copper wire for effective signal transmission.
The outside diameter of the cable is 6.7 mm, and it has a conductor cross-sectional area of 22AWG.
Yes, this model is halogen-free, meeting safety standards for fire behavior.
It complies with UL standards and various IEC norms, including IEC 60754-2 for halogen content and IEC 60332-1 for flame resistance.
The cable is rated for use at up to 600 volts, suitable for industrial and automation applications.
The minimum operating temperature for this Ethernet cable is -50°C.
It is suitable for use in PROFINET and Ethernet networking for industrial automation, control cabinets, and machinery wiring.
The jacket is made of polyurethane, providing strong mechanical protection and flexibility.
This Ethernet cable is terminated, ensuring compatibility with standard Ethernet networking equipment.
