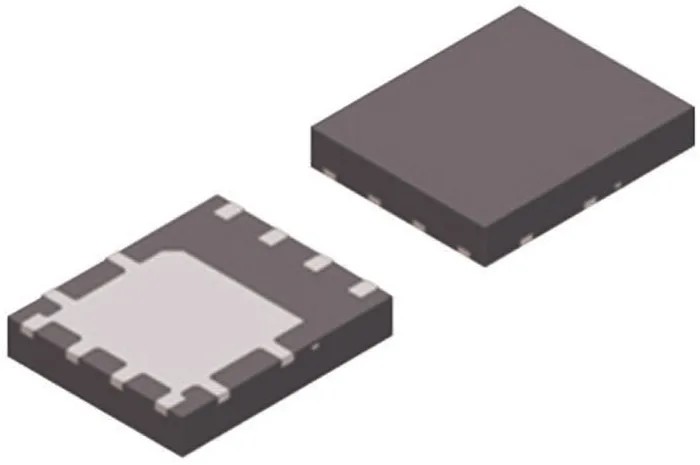

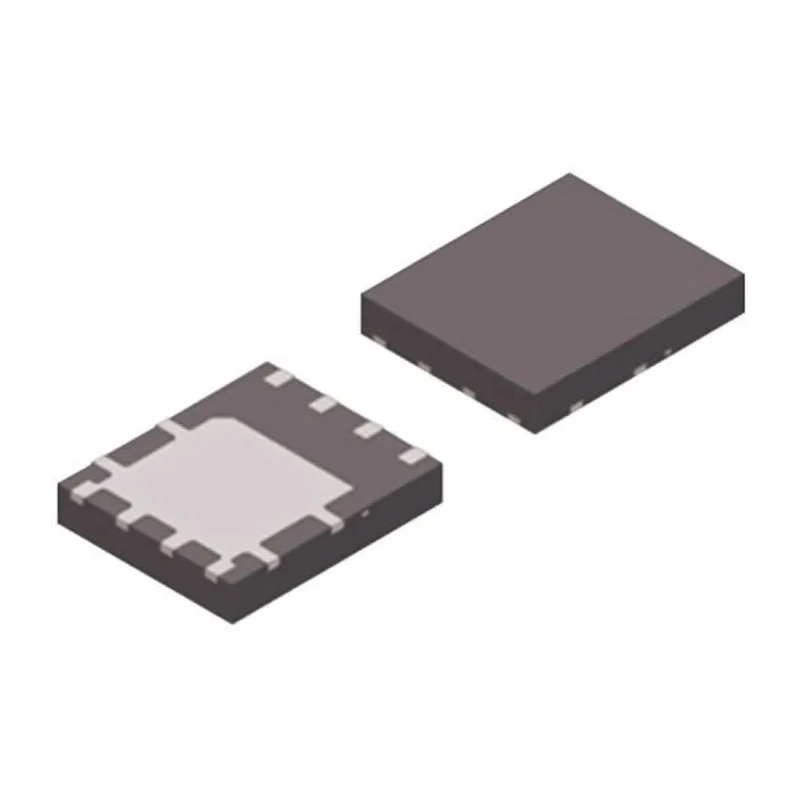

STMicroelectronics 30 V 30 A Schottky Diode PowerFLAT 8-Pin Surface Mount STPS30L30DJF-TR

The STMicroelectronics STPS30L30DJF-TR is a robust Schottky Diode designed for surface mount applications requiring efficient power rectification. Its PowerFLAT 8-pin package ensures compact mounting and excellent thermal management in power electronic circuits.

Engineered to handle a maximum continuous forward current of 30 A and peak reverse repetitive voltage of 30 V, this diode offers optimal performance in high-current environments. The peak non-repetitive forward surge current of 250 A supports transient overload conditions, ensuring reliability and longevity.

With a low maximum forward voltage of 510 mV, the diode minimizes conduction losses, contributing to improved system efficiency. The operational temperature range from -65°C to 150°C allows deployment across a broad spectrum of industrial and commercial applications, including power supplies, inverters, and motor drives.

The diode’s compact dimensions (6.15 mm length x 5.2 mm width x 0.95 mm height) enable space-saving PCB layouts, while the single diode configuration supports diverse rectification and switching needs.

Applications include industrial power conversion, telecommunications power supplies, renewable energy systems, and switching power regulators where efficient recovery and fast switching are critical.

Rated for 30 amperes of maximum continuous forward current. Peak reverse repetitive voltage of 30 volts for secure reverse-bias operation. PowerFLAT 8-pin surface mount package facilitates high-density PCB designs. Supports high surge currents up to 250 amperes for transient events.

Low forward voltage drop of 510 mV reduces heat generation and energy loss. Wide temperature operating range ensures performance in harsh environments. Compact form factor with dimensions of 6.15 mm by 5.2 mm by 0.95 mm.

EnvMart offers this diode for industrial, electronic component manufacturing, and power management applications. Explore more semiconductor components and diodes in our extensive catalog for your design and manufacturing needs.
