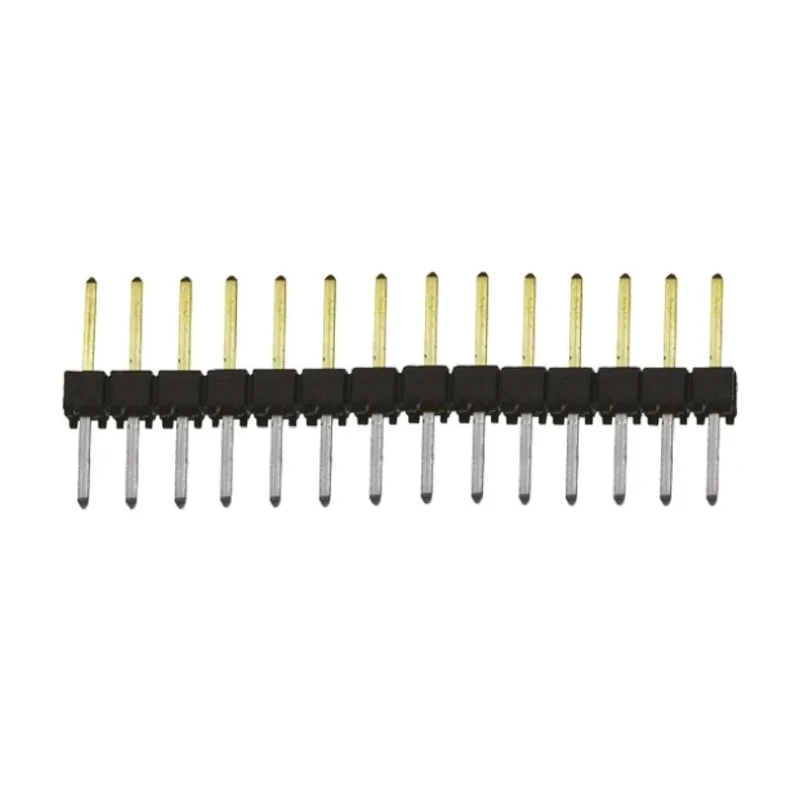

Samtec TSW Series Straight Through Hole Pin Header, 14 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSW-114-08-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-114-08-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 5.08mm |
| Mating Pin Length | 5.84mm |
Key Features
- Constructed with a glass filled polyester housing for durability and insulation.
- Features phosphor bronze contacts plated in gold for reliable conductivity.
- Rated for a maximum current of 7.6 A and voltage of 550 V.
- Designed for through hole mounting on printed circuit boards.
- Operates reliably within a temperature range of -55°C to 125°C.
- Includes 5.08 mm tail pin length and 5.84 mm mating pin length.
- Utilized in board-to-board and wire-to-board connection systems.
- Single row layout, straight orientation, and male contact gender.
Product Description
Samtec TSW-114-08-L-S is a high-quality straight through hole pin header designed for secure electrical connections in electronic applications. It comprises 14 gold-plated phosphor bronze contacts with a 2.54 mm pitch and a single row configuration. The black glass filled polyester housing ensures robust mechanical strength and excellent insulation properties.
This connector supports board-to-board and wire-to-board systems and is intended for through hole mounting onto PCBs, providing reliable solder termination. Its operating temperature range from -55°C to 125°C allows stable performance across various environments.
The pin header handles a current rating of 7.6 A and voltage up to 550 V. The contact and tail pin lengths are 5.84 mm and 5.08 mm respectively, suitable for a variety of electronic assembly requirements.
TSW series headers are unshrouded and feature a male contact gender with a straight orientation, ideal for multiple PCB interconnection needs in industrial, electronic manufacturing, and assembly use cases.
Constructed with glass filled polyester housing for durability and insulation. Gold plated phosphor bronze contacts ensure reliable electrical conductivity. Rated for 7.6 A current and 550 V voltage. Supports board-to-board and wire-to-board connection systems.
Single row with 14 contacts and 2.54 mm pitch. Operates in temperature range -55°C to 125°C. Through hole mounting with solder termination type. Pin header with straight orientation and male contact gender.
This Samtec TSW-114-08-L-S pin header is widely used in electronics manufacturing, industrial equipment, and power connector applications. EnvMart offers this premium PCB header for engineering and production needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header is rated for a maximum current of 7.6 A and a voltage of 550 V.
This model features a 2.54 mm pitch and has 14 contacts.
It is constructed with a glass filled polyester housing and features phosphor bronze contacts plated in gold for conductivity.
It operates reliably within a temperature range of -55°C to 125°C.
This connector is designed for through hole mounting on printed circuit boards, utilizing a solder termination type.
The pin header has a straight orientation and features a male contact gender.
The tail pin length is 5.08 mm, while the mating pin length is 5.84 mm.
It is utilized in board-to-board and wire-to-board connection systems, commonly found in electronics manufacturing and industrial equipment.
This model is unshrouded, allowing for easier access during connections.
This pin header supports both board-to-board and wire-to-board connection systems.
This pin header belongs to the TSW series.
The country of origin for this pin header is India.
