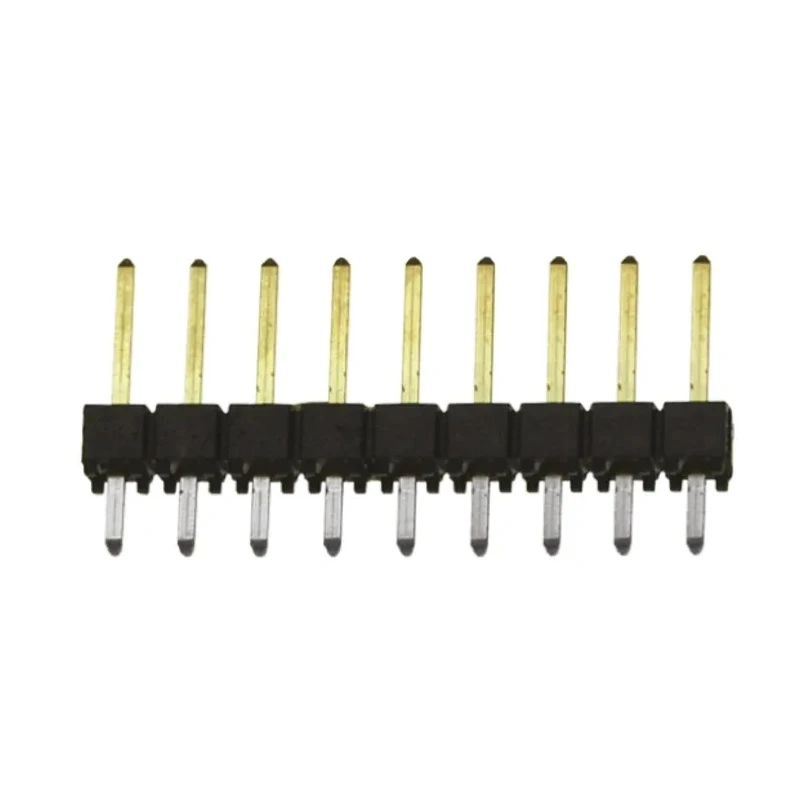

Samtec TSW Series 9 Contact Straight Through Hole Pin Header 2.54 mm Pitch 1 Row Unshrouded TSW-109-07-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-109-07-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
Key Features
- Features 9 gold-plated phosphor bronze male contacts for reliable conductivity.
- Constructed with a black glass filled polyester housing for robust insulation.
- Supports continuous current of 7.6A and a voltage rating up to 550V.
- Designed for through hole mounting with a tail pin length of 2.54 mm and mating pin length of 5.84 mm.
- Operating temperature range from -55°C to 125°C ensures performance in harsh environments.
- Unshrouded, straight orientation suitable for various PCB configurations.
- Termination type is solder, ensuring secure connections on PCB.
- Compatible with Samtec’s range of mating sockets for enhanced flexibility.
Product Description
Samtec TSW-109-07-L-S is a precision-engineered 9 contact straight through hole pin header featuring a standard 2.54 mm pitch and single row configuration. This unshrouded header is designed for through hole mounting, making it ideal for both board-to-board and wire-to-board electronic applications.
The device supports a rated current of 7.6 amperes and a maximum voltage of 550 volts. It tolerates operating temperatures from -55°C up to 125°C, suitable for industrial, commercial, and professional electronics environments. Its termination method is soldered, providing a reliable and lasting mechanical and electrical connection on printed circuit boards.
The pin header includes 9 male contacts with a tail pin length of 2.54 mm and a mating pin length of 5.84 mm. The straight orientation optimizes board layout flexibility and assembly ease. This pin header is compatible with various Samtec series mating sockets, increasing versatility and enabling secure connector solutions for control, instrumentation, communication, and automation systems.
9 gold-plated phosphor bronze contacts provide excellent conductivity and durability. Black glass filled polyester housing offers robust electrical insulation and mechanical strength. Through hole mount type for secure PCB integration.
Operating temperature range from -55°C to 125°C suits demanding application environments. Connector system supports both board-to-board and wire-to-board connections. Unshrouded, straight male contact design for versatile PCB applications.
Voltage rating of 550V and current of 7.6A ensure electrical performance and safety. Solder termination type ensures reliable, permanent mounting.
This Samtec TSW Series pin header is widely used in electronic manufacturing, industrial automation, instrumentation panels, and control circuitry requiring precise, rugged, and high-performance connector solutions. The component's compatibility with multiple Samtec socket types broadens its applicability across many industries. Environmentally friendly RoHS compliant design ensures usage in green manufacturing processes.
Explore more from Samtec pin header offerings and select the right PCB connector solutions at EnvMart for your electronics assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this pin header is 550V.
It supports a continuous current of 7.6A.
The pitch size is 2.54 mm.
The housing is made of black glass filled polyester, and the contacts are composed of gold-plated phosphor bronze.
It operates within a temperature range of -55°C to 125°C.
This model features 9 male contacts.
It utilizes a solder termination type for secure connections on the PCB.
This pin header is unshrouded with a straight orientation.
The tail pin length is 2.54 mm.
It supports both board-to-board and wire-to-board connections.
The country of origin for this pin header is India.
It is suitable for applications in electronic manufacturing, industrial automation, instrumentation panels, and control circuitry.
