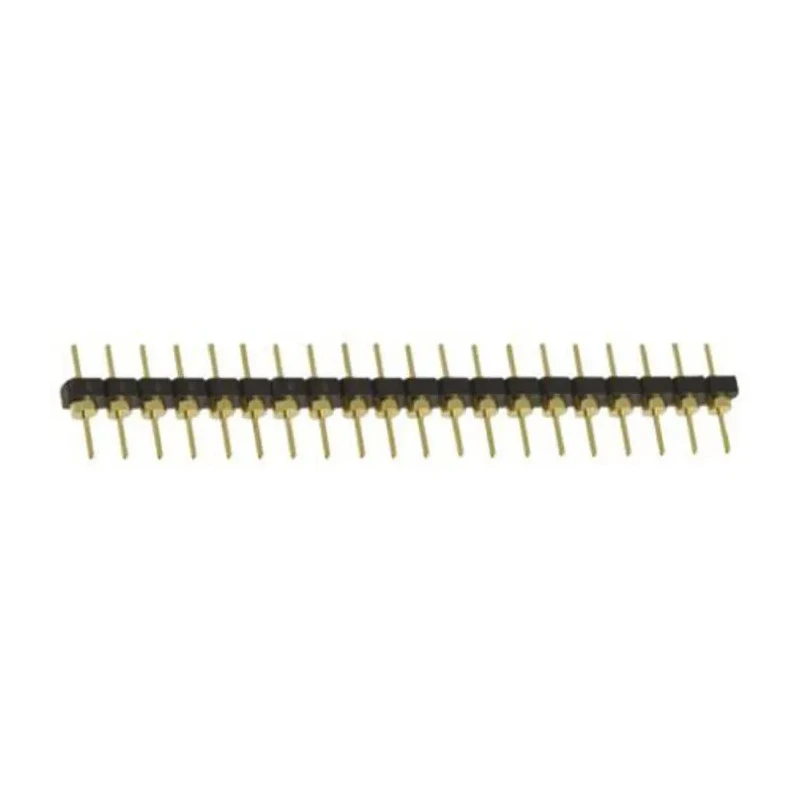

Samtec BBL Series Straight Through Hole Pin Header, 20 Contact, 2.54 mm Pitch, 1 Row, Unshrouded BBL-120-G-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-120-G-F |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 3.1mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- Comprises 20 gold-plated brass contacts for reliable conductivity.
- Designed with a 2.54 mm pitch and single row orientation for compact PCB layouts.
- Constructed with a black glass-filled polyester polymer housing for durability.
- Suitable for operating temperatures ranging from -55°C to 125°C.
- Includes solder termination and a tail pin length of 3.18 mm for secure mounting.
- Compatible with SL series low profile socket strips and SS series socket strips.
- Ensures a low profile board spacing of 3.89 mm when mated with compatible sockets.
- Ideal for industrial and electronic applications requiring precise board-to-board interfacing.
Product Description
Samtec BBL-120-G-F is a high-quality straight through hole pin header designed for board-to-board electronic connections. This single row header features 20 male contacts with a 2.54 mm pitch, housed in a robust black glass-filled polyester polymer. The contacts are brass with a 0.51 μm gold plating, ensuring reliable conductivity and corrosion resistance.
Engineered for durability, this pin header operates effectively in temperature ranges from -55°C to a maximum of 125°C, supporting demanding industrial environments. Its design incorporates a 3.18 mm tail pin length for easy soldering and mounting on printed circuit boards via through-hole technology.
The BBL series low profile stacking terminal strips provide a minimal board spacing of 3.89 mm when paired with SL series low profile socket strips, making this header ideal for space-constrained applications. It is also compatible with SS series socket strips, enhancing its versatility.
This component is widely used in industries such as manufacturing, electronics assembly, telecommunications, and automation systems, where reliable and efficient board-to-board connectivity is critical.
20 gold-plated brass contacts ensure long-lasting electrical performance. 2.54 mm pitch and single row layout for easy integration into standard PCBs. Black glass-filled polyester housing delivers mechanical strength and stability.
Wide operational temperature range makes it suitable for various industrial settings. Solder termination type allows robust PCB mounting. Designed to mate with specific Samtec low profile socket strips for reduced spacing.
Supports applications in electronics manufacturing, industrial automation, and telecommunications. Explore more high-performance PCB header solutions on EnvMart to optimize your electronic designs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, designed for compact PCB layouts.
This model features 20 gold-plated brass contacts, ensuring reliable conductivity.
It operates effectively within a temperature range of -55°C to 125°C, suitable for various industrial environments.
This pin header uses a solder termination type for secure mounting on printed circuit boards.
The tail pin length is 3.18 mm, facilitating easy soldering and mounting.
Yes, it is compatible with SL series low profile socket strips and SS series socket strips.
The housing is constructed from black glass-filled polyester polymer, providing mechanical strength and stability.
This pin header has a current rating of 1A, suitable for various electronic applications.
This model features a single row design, making it suitable for space-constrained applications.
The contact gender of this pin header is male, designed for board-to-board connections.
The contacts are plated with 0.51 μm of gold, ensuring reliable conductivity and corrosion resistance.
The country of origin for this product is India.
