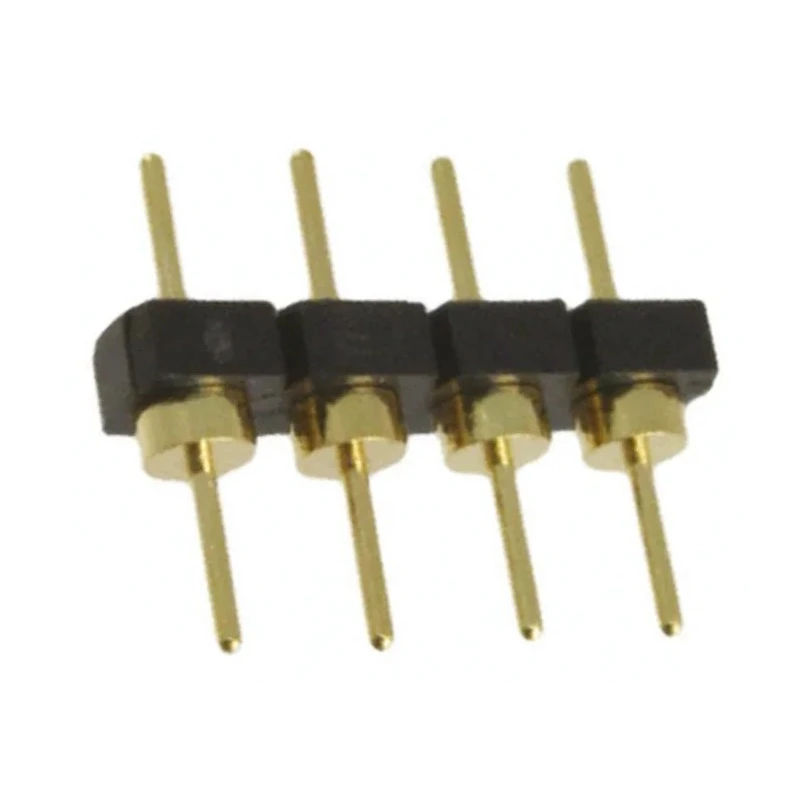

Samtec BBL Series Straight Through Hole Pin Header 4 Contact 2.54 mm Pitch 1 Row Unshrouded BBL-104-G-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-104-G-F |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 3.1mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- Low profile through hole stacking design suitable for PCB applications.
- Housing made from black glass filled polyester for durability.
- Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
- Operates reliably within temperature range of -55°C to 125°C.
- Features 3.18 mm tail pin length and 3.1 mm mating pin length for stable connections.
- Supports a current rating of 1A, ideal for low power electronic circuits.
- Single row configuration with 2.54 mm pitch for standard spacing compatibility.
- Compatible with SL and SS series low profile socket strips for versatile mating options.
Product Description
Samtec BBL-104-G-F is a precision-engineered straight through hole pin header from the BBL Series, featuring 4 contacts arranged in a single row with a 2.54 mm pitch. This unshrouded connector is designed for board-to-board applications requiring robust and low profile connections. The body is constructed from black glass filled polyester, providing excellent mechanical strength and durability in industrial environments.
The contacts are made from brass with a 0.51μm gold plating to offer superior electrical conductivity along with corrosion resistance. The header operates reliably between -55°C and 125°C, ensuring suitability for a wide range of industrial, electronics manufacturing, laboratory, and commercial applications. It supports a current capacity of 1A, making it ideal for modest power electronic systems.
This specific pin header has a tail pin length of 3.18 mm and mating pin length of 3.1 mm, optimized for secure solder termination and mating with SL series low profile socket strips or SS series socket strips, allowing flexible system configurations. The low profile design achieves a 3.89 mm board spacing when mated, facilitating compact PCB layouts.
The BBL-104-G-F model is unshrouded with straight orientation and through hole mount type, allowing easy installation and reliable mechanical fastening. Its consistent pitch of 2.54 mm conforms to industry standards, making it compatible with a broad range of PCBs and connectors.
Low profile through hole stacking header with 2.54 mm pitch. Black glass filled polyester housing ensuring robust durability. Gold-plated brass contacts provide reliable electrical performance. Operating temperature from -55°C to 125°C for industrial reliability.
Single row, 4 contact, unshrouded configuration. Through hole mount type with straight orientation. Compatible with SL and SS series low profile socket strips. Ideal for industrial, electronics manufacturing, and laboratory use.
Find this pin header and other PCB connectors in the Electronics & Electricals category at EnvMart for comprehensive industrial component sourcing.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, which conforms to standard spacing compatibility for PCB applications.
The BBL-104-G-F supports a current rating of 1A, making it suitable for low power electronic circuits.
This model operates reliably within a temperature range of -55°C to 125°C, suitable for various industrial applications.
The housing is made from black glass filled polyester for durability, and the contacts are brass with a gold plating for excellent conductivity and corrosion resistance.
This pin header features 4 contacts arranged in a single row configuration.
The tail pin length of the BBL-104-G-F is 3.18 mm, optimized for secure solder termination.
This model is unshrouded, allowing for easy mating with compatible socket strips.
The BBL-104-G-F uses a through hole mount type, facilitating reliable mechanical fastening during installation.
It is compatible with SL series low profile socket strips and SS series socket strips for versatile mating options.
The mating pin length is 3.1 mm, designed for stable connections with compatible sockets.
The BBL-104-G-F supports a board-to-board connector system, making it suitable for various PCB applications.
This pin header is manufactured in India, ensuring compliance with industrial standards.
