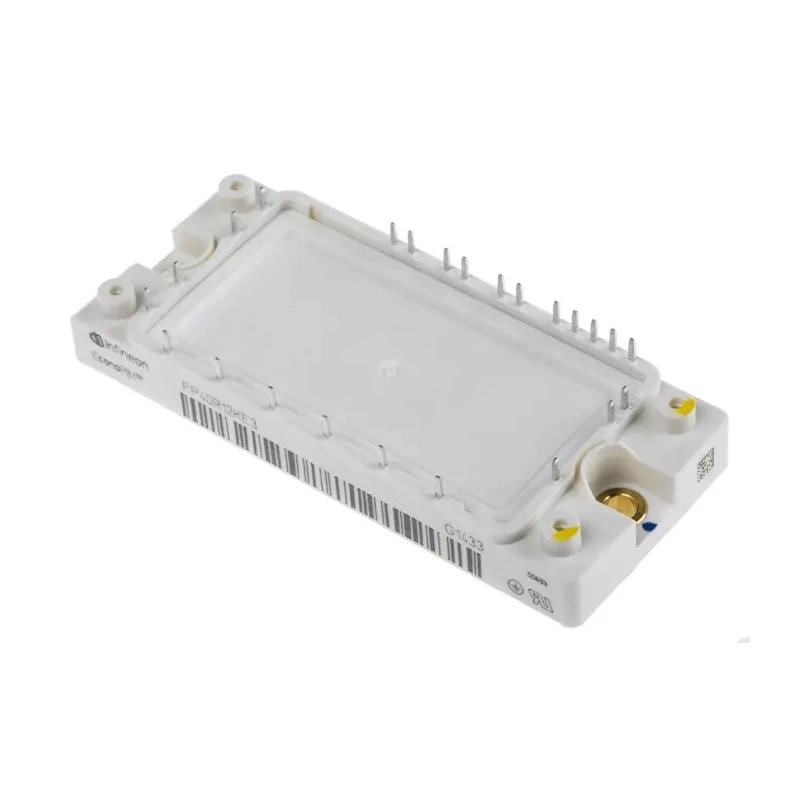

Infineon N-Channel IGBT Module 55 A 1200 V 24-Pin EconoPIM2 Clamp FP40R12KE3BOSA1

Infineon FP40R12KE3BOSA1 N-Channel IGBT Module 24-Pin EconoPIM2 Clamp is engineered to deliver low switching losses at frequencies up to 60 kHz. This module combines high continuous current capacity of 55 A with a collector emitter voltage rating of 1200 V, optimized for power semiconductor applications.

The EconoPIM2 package provides a compact and robust clamp mounting solution ensuring reliable performance under variable operating conditions. With a maximum power dissipation of 210 W, this IGBT module maintains efficiency and longevity across a wide temperature range from -40°C to 150°C.

The 24-pin configuration and low saturation voltage of 2.15 V reduce conduction losses, contributing to enhanced system efficiency. The module is suitable for industrial drives, uninterruptible power supplies (UPS), inverters, and other applications requiring rapid switching and efficient power management.

It supports both hard-switching and soft-switching requirements, accommodating diverse electronic design criteria.

Package styles related to this family include various Econopack and PrimePACK options, providing flexible integration in power modules. This product adheres to quality and technical standards for modern semiconductor components, with no specific automotive or industry certifications indicated.

This IGBT Module utilizes the EconoPIM2 package with a clamp mount type for secure installation. The maximum power dissipation is rated at 210 W, suitable for demanding applications. Designed for operating temperatures from -40°C up to 150°C ensuring durability in harsh environments.

The module features 24 pins and supports a maximum gate emitter voltage of 20 V. Low saturation voltage of 2.15 V helps improve overall system efficiency. Compact dimensions of 107.5 mm length, 45 mm width, and 17 mm height enable easy integration.

Suitable for industrial, commercial, construction, and agricultural electronics applications. Optimized for both hard and soft switching in inverters, UPS systems, and industrial drives. Explore the Infineon product category for more power semiconductor solutions and related electronic components on EnvMart.
