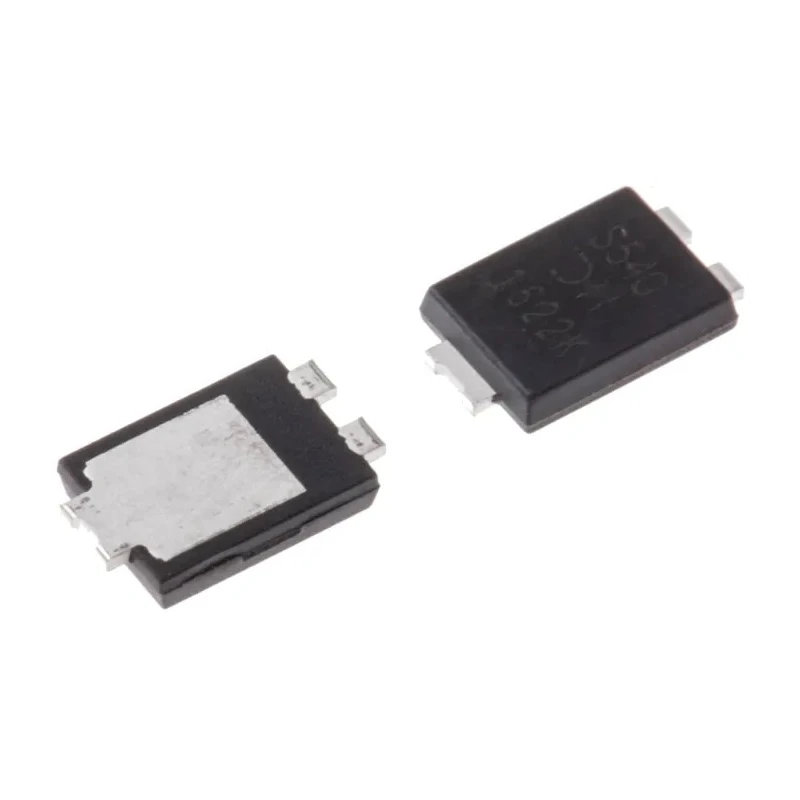

DiodesZetex 40 V 5 A Schottky Diode Surface Mount PowerDI5 3-Pin PDS540-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | PDS540-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Series | PDS540 |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 650mV |
Key Features
- Offers a maximum continuous forward current of 5 amperes.
- Supports peak reverse repetitive voltage of 40 volts.
- Low forward voltage drop of 650 millivolts for efficient operation.
- Capable of withstanding peak non-repetitive forward surge current up to 150 amperes.
- Operates reliably from -65°C to 150°C temperature range.
- Complies with automotive standard AEC-Q101 and FBI approvals.
- Single diode configuration suitable for rectifier and protection circuits.
- Ideal for industrial, automotive, and power electronics applications.
Product Description
DiodesZetex PDS540-13 is a Schottky barrier diode with a rated maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 40 V. This single diode device is configured with 3 pins in a PowerDI5 surface mount package, featuring compact dimensions (length 4.05 mm, width 5.45 mm, height 1.15 mm) making it suitable for modern PCB assembly.
It has a low forward voltage drop of 650 mV, improving efficiency and reducing heat generation in power rectification and protection circuits. The device is designed to handle a peak non-repetitive forward surge current of 150 A, ensuring robustness under transient overloads.
The diode supports a wide operating temperature range from -65°C up to 150°C, suitable for demanding industrial and automotive environments. The PDS540-13 complies with the automotive-grade standard AEC-Q101 and Federal Bureau of Investigation (FBI) approvals, reflecting its reliability and quality assurance for high-performance applications.
This Schottky diode is ideal for use in power supply circuits, power rectification, reverse polarity protection, and various semiconductor switching applications. The surface mount design allows for compact and efficient PCB layouts in production volume environments.
Maximum continuous forward current of 5 amperes. Peak reverse repetitive voltage of 40 volts. Forward voltage drop of 650 millivolts. Peak non-repetitive forward surge current up to 150 amperes. Operating temperature range from -65°C to 150°C.
Dimensions: 4.05 mm length, 5.45 mm width, 1.15 mm height. Automotive standard AEC-Q101 compliant. Surface mount PowerDI5 package with 3 pins. Single diode configuration suitable for power and automotive applications. Discover more semiconductor and Schottky diode components in the Electronics & Electricals category at EnvMart for reliable industrial and automotive solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the PDS540-13 is 5 amperes.
This diode supports a peak reverse repetitive voltage of 40 volts.
The forward voltage drop for this model is 650 millivolts.
It can withstand a peak non-repetitive forward surge current of up to 150 amperes.
The operating temperature range for the PDS540-13 is from -65°C to 150°C.
The dimensions of the PowerDI5 package are 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height.
This model features a single diode configuration suitable for rectifier and protection circuits.
The PDS540-13 complies with the automotive standard AEC-Q101.
This diode has a pin count of 3.
It is ideal for use in power supply circuits, power rectification, and reverse polarity protection.
This diode has FBI approvals, indicating its reliability and quality assurance.
The maximum forward voltage rating for this model is 650 millivolts.
