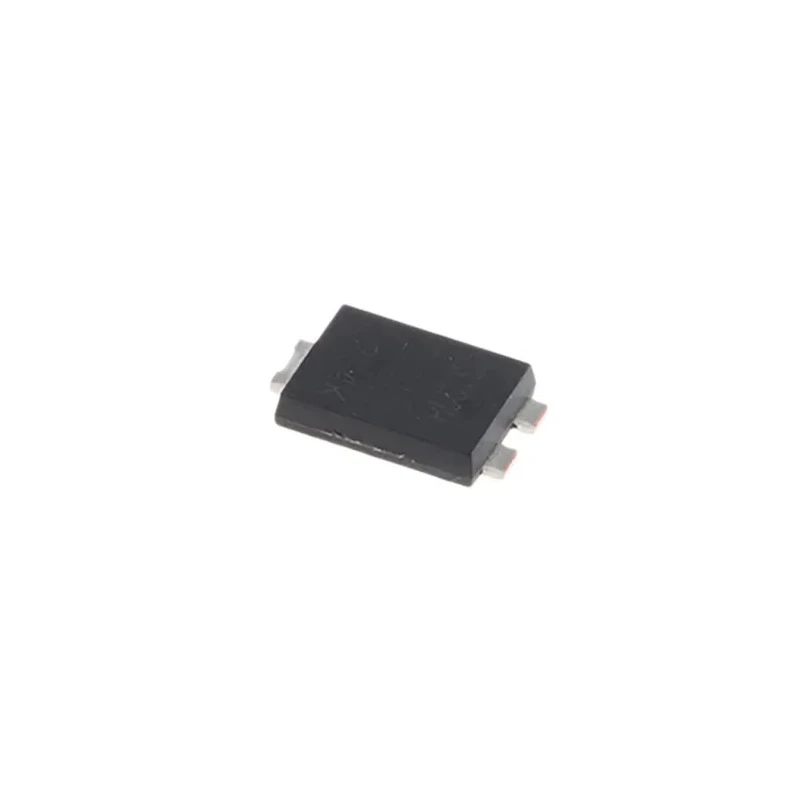

DiodesZetex 100 V 5 A Schottky Diode 3-Pin Surface Mount PowerDI5 PDS5100H-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | PDS5100H-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 4.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 800mV |
Key Features
- This Schottky diode features a peak reverse repetitive voltage of 100 V.
- Capable of handling a maximum continuous forward current of 5 A.
- Designed with a PowerDI5 3-pin surface mount package for efficient PCB assembly.
- Maximum forward voltage drop is 800 mV ensuring efficient conduction.
- Supports a peak non-repetitive forward surge current of 250 A for transient protection.
- Operational temperature range from -65°C to 175°C ensures reliability in harsh environments.
- Complies with automotive standard AEC-Q101 for high-quality automotive applications.
- Compact dimensions measure 4.05 mm (length) x 5.45 mm (width) x 1.15 mm (height).
Product Description
DiodesZetex PDS5100H-13 is a high-performance Schottky diode designed for surface mount applications with a PowerDI5 3-pin package. It supports a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 100 V. The diode has a low forward voltage drop of 800 mV, making it highly efficient for power rectification tasks in industrial and automotive settings.
This diode operates reliably over a wide temperature range from -65°C to 175°C, ensuring robust performance under extreme environmental conditions. It supports a peak non-repetitive forward surge current of 250 A, providing transient surge protection in power circuits.
The compact physical dimensions of 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height allow for space-saving PCB designs. The product complies with the automotive AEC-Q101 standard, making it suitable for automotive and industrial electronic applications requiring high reliability and quality.
This Schottky diode is widely used in power supply rectification, switching power supplies, and automotive electronic circuits where fast switching and low forward voltage characteristics are critical. Its single diode configuration and three-pin layout make it practical for surface mount manufacturing processes.
This Schottky diode features a peak reverse repetitive voltage of 100 V. Capable of handling a maximum continuous forward current of 5 A. Designed with a PowerDI5 3-pin surface mount package for efficient PCB assembly. Maximum forward voltage drop is 800 mV ensuring efficient conduction.
Supports a peak non-repetitive forward surge current of 250 A for transient protection. Operational temperature range from -65°C to 175°C ensures reliability in harsh environments. Complies with automotive standard AEC-Q101 for high-quality automotive applications.
Compact dimensions measure 4.05 mm (length) x 5.45 mm (width) x 1.15 mm (height). Explore more semiconductor and diode products from EnvMart to meet your advanced electronic and industrial project requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5 A.
It has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop is 800 mV, ensuring efficient conduction.
This diode operates over a temperature range from -65°C to 175°C.
It is designed with a PowerDI5 3-pin surface mount package.
The diode supports a peak non-repetitive forward surge current of 250 A.
The dimensions of this model are 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height.
Yes, it complies with the automotive standard AEC-Q101.
This model is a Schottky rectifier, designed for efficient power rectification tasks.
The peak reverse current is rated at 4.5 mA.
This diode has a pin count of 3.
It is widely used in power supply rectification and automotive electronic circuits where fast switching is critical.
