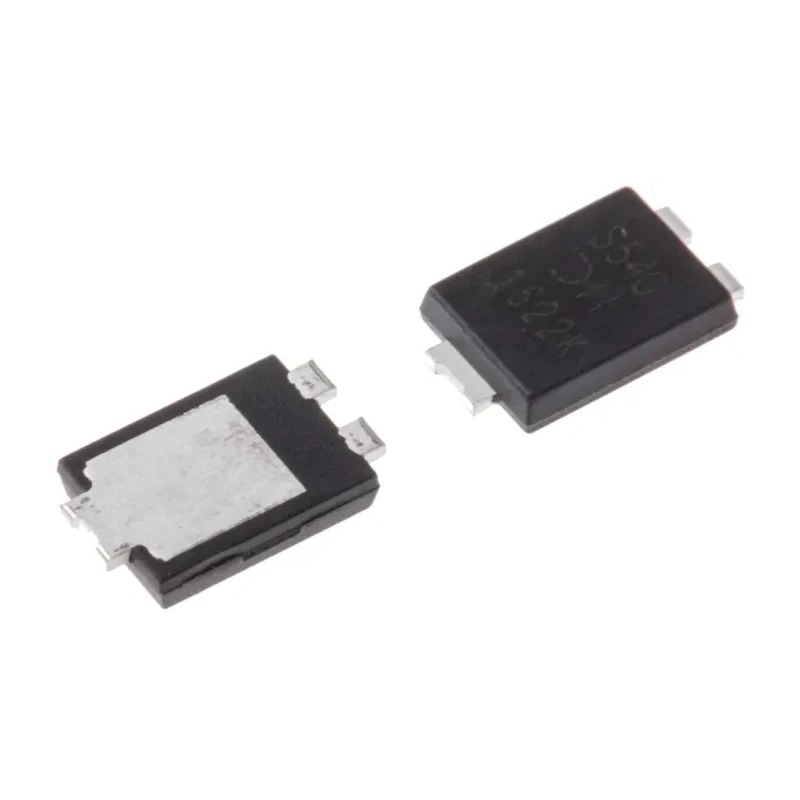

DiodesZetex 40 V 5 A Schottky Diode Surface Mount PowerDI5 3-Pin Diode PowerDI5
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | PowerDI5 |
| Width | 5.45mm |
| Mount Type | Surface |
| Series | PDS540 |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 650mV |
Key Features
- Supports a maximum continuous forward current of 5 amperes.
- Designed to withstand a peak reverse repetitive voltage of 40 volts.
- Utilizes a single diode configuration optimized for Schottky rectification.
- Features a compact PowerDI5 package with dimensions of 4.05 mm length, 5.45 mm width, and 1.15 mm height.
- Capable of enduring peak non-repetitive forward surge current up to 150 amperes.
- Operates reliably within a temperature range of -65°C to 150°C.
- Maximum forward voltage drop is rated at 650 millivolts, improving efficiency.
- Complies with FBI standards and automotive-grade AEC-Q101 certification.
Product Description
DiodesZetex PowerDI5 Schottky Diode PDS540-13 is a high-performance surface mount diode designed for power applications requiring low forward voltage drop and high reliability. Operating at 40 V peak reverse voltage and capable of handling continuous forward current of 5 A, this diode features a compact PowerDI5 package with three pins, measuring 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height.
Engineered for industrial, automotive, and electronic power conversion uses, it provides excellent thermal stability and high surge current capability up to 150 A peak non-repetitive forward surge current. The device meets FBI quality standards and is certified under automotive standard AEC-Q101, ensuring suitability for demanding automotive environments.
Its single diode configuration offers efficient rectification with a maximum forward voltage drop of 650 mV, minimizing power losses and improving overall system efficiency. The diode operates effectively over a wide temperature range from -65°C to 150°C, making it suitable for harsh environmental conditions.
Applications include use in power supplies, battery management, solar inverters, motor drives, and general industrial electronics where robust and efficient Schottky diode performance is required.
Supports a maximum continuous forward current of 5 amperes. Designed to withstand a peak reverse repetitive voltage of 40 volts. Utilizes a single diode configuration optimized for Schottky rectification. Features a compact PowerDI5 package with precise dimensions and form factor.
Capable of enduring peak non-repetitive forward surge current up to 150 amperes. Operates reliably within a temperature range of -65°C to 150°C. Maximum forward voltage drop is rated at 650 millivolts. Complies with FBI standards and automotive-grade AEC-Q101 certification.
Ideal for industrial, automotive, and electronic applications requiring thermal stability and high efficiency.
This diode is an essential component in discrete semiconductor applications and power rectification tasks. Explore more Schottky diodes and rectifiers to suit diverse technical requirements in the EnvMart Electronics & Electricals section.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 amperes.
This diode is designed to withstand a peak reverse repetitive voltage of 40 volts.
The maximum forward voltage drop is rated at 650 millivolts, which helps improve efficiency.
It can endure a peak non-repetitive forward surge current of up to 150 amperes.
The PowerDI5 package dimensions are 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height.
This model operates reliably within a temperature range of -65°C to 150°C.
It features a surface mount design.
It complies with the automotive-grade AEC-Q101 certification.
This diode utilizes a single diode configuration optimized for Schottky rectification.
It complies with FBI standards, ensuring quality and reliability.
The peak reverse current is rated at 40 milliamperes.
It is suitable for applications in power supplies, battery management, solar inverters, and motor drives.
