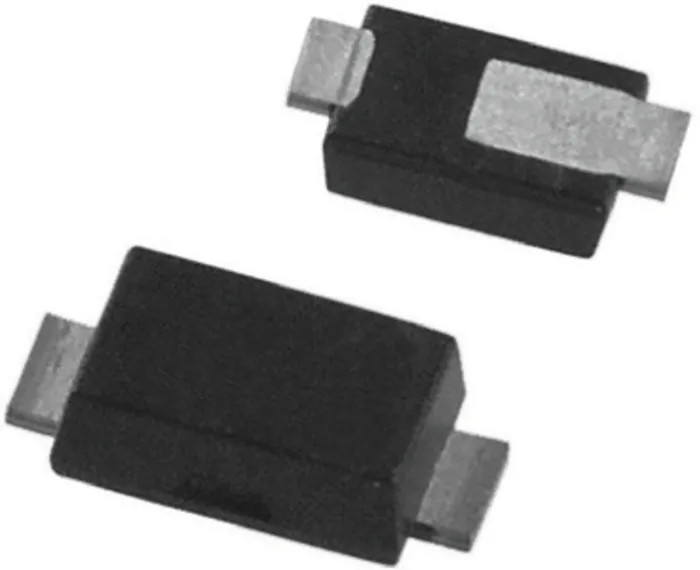

DiodesZetex 30 V 1 A Schottky Diode Single Configuration PowerDI123 Surface Mount DFLS130-7

DiodesZetex DFLS130-7 is a high-performance Schottky diode configured as a single diode, designed to provide efficient rectification with a maximum continuous forward current of 1 ampere and a peak reverse voltage of 30 volts. Manufactured with a PowerDI123 surface mount package, its compact dimensions (3 mm length, 1.93 mm width, and 1 mm height) make it ideal for use in dense electronic assemblies.

Operating over a wide temperature range from -55°C to 125°C, this diode maintains excellent thermal stability needed for demanding industrial and automotive environments. The low maximum forward voltage of 420 millivolts reduces power losses and heat generation, enhancing overall circuit efficiency. It withstands peak non-repetitive forward surge currents up to 35 amperes, ensuring reliability under transient stress conditions.

DiodesZetex DFLS130-7 adheres to the AEC-Q101 automotive standard, confirming its suitability for automotive electronic systems where enhanced robustness and quality are essential. This diode belongs to the Schottky Barrier Diodes family, known for fast switching speeds and low forward voltage drop, making it a preferred choice for power management and signal conditioning in industrial, automotive, and consumer electronics applications.

This diode features a low forward voltage drop of 420 mV for improved efficiency. It operates reliably within a temperature range from -55°C to 125°C. Constructed in a compact 3 mm by 1.93 mm by 1 mm package, ideal for tight circuit designs.

Peak non-repetitive forward surge current rating is 35 A, suitable for transient conditions. Certified to the automotive standard AEC-Q101 for enhanced durability in automotive applications. The device is configured as a single Schottky barrier diode ensuring fast switching and low losses.

It offers excellent thermal stability and high reliability characteristics suitable for industrial electronics. Package type PowerDI123 surface mounting enables automated assembly for efficient manufacturing.

This diode is widely used in industrial electronics, automotive power management, consumer electronics, and telecommunications where efficient power conversion and low forward voltage drop are crucial. Its surface mount design supports high-volume automated manufacturing processes, reducing production costs and increasing reliability.
