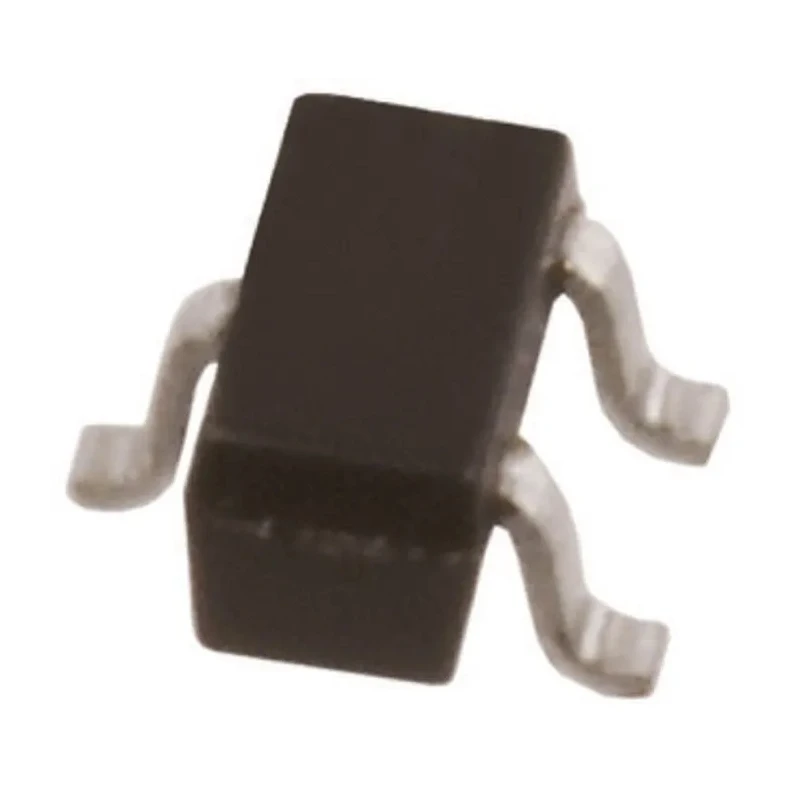

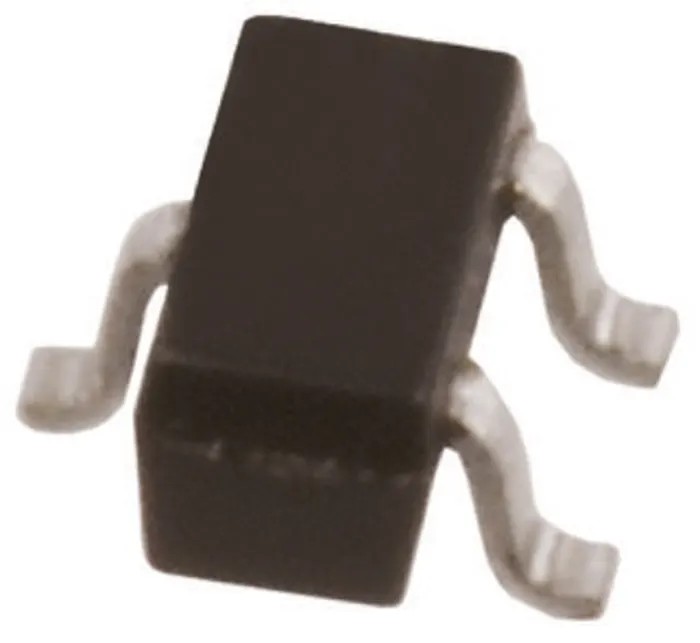

DiodesZetex 30 V 200 mA Surface Mount Switching Schottky Diode 3-Pin SOT-523 BAT54CT-7-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.8mm |
| Length | 1.7mm |
| Model | BAT54CT-7-F |
| Width | 0.85mm |
| Mount Type | Surface |
| Series | BAT54CT |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-523 (SC-89) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |
Key Features
- Offers a maximum continuous forward current of 200 mA for reliable performance.
- Features a peak reverse repetitive voltage rating of 30 V to withstand reverse voltage spikes.
- Equipped with a common cathode diode configuration suitable for various circuit topologies.
- Designed with a switching rectifier type for high-speed switching operations.
- Provides a low maximum forward voltage of 1 V, promoting energy efficiency.
- Has a fast peak reverse recovery time of 5 ns to minimize switching losses.
- Operates reliably across a temperature range from -65°C to 125°C.
- Compact with dimensions Height 0.8 mm, Length 1.7 mm, Width 0.85 mm, suitable for high-density PCB layouts.
Product Description
DiodesZetex BAT54CT-7-F is a high-quality surface mount switching Schottky diode designed for low forward voltage drop and fast switching speeds in electronic circuits. This diode supports a maximum continuous forward current of 200 mA and can handle peak reverse repetitive voltages up to 30 V, making it suitable for rectification and switching tasks in power management, signal processing, and automotive electronics.
The device’s 3-pin SOT-523 (SC-89) package offers a compact footprint with dimensions of 0.8 mm height, 1.7 mm length, and 0.85 mm width, enabling use in space-constrained and high-density PCB assemblies. Its common cathode configuration facilitates integration in diode arrays or bridge rectifiers effectively.
With a maximum forward voltage drop of just 1 V and a peak reverse recovery time of 5 ns, the BAT54CT-7-F diode provides energy-efficient and rapid switching performance. It supports robust operation in extreme environments, with an operating temperature range from -65°C to 125°C and compliance with the automotive standard AEC-Q101, which assures reliability in automotive and industrial applications.
This Schottky barrier diode is ideal for industrial, automotive, consumer electronics, and power supply applications requiring efficient switching and low losses. Offers a maximum continuous forward current of 200 mA for reliable performance.
Features a peak reverse repetitive voltage rating of 30 V to withstand reverse voltage spikes. Equipped with a common cathode diode configuration suitable for various circuit topologies. Designed with a switching rectifier type for high-speed switching operations.
Provides a low maximum forward voltage of 1 V, promoting energy efficiency. Has a fast peak reverse recovery time of 5 ns to minimize switching losses. Operates reliably across a temperature range from -65°C to 125°C. Compact with dimensions Height 0.8 mm, Length 1.7 mm, Width 0.85 mm, suitable for high-density PCB layouts.
Conforms to the automotive standard AEC-Q101 for quality and reliability in automotive applications. Manufactured in China ensuring consistent quality control. Explore more in the Electronics & Electricals category on EnvMart for a wide range of semiconductor components and Schottky diodes from leading brands like DiodesZetex.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the BAT54CT-7-F is 200 mA.
This model has a peak reverse repetitive voltage rating of 30 V.
The dimensions of this diode are 0.8 mm in height, 1.7 mm in length, and 0.85 mm in width.
It operates reliably across a temperature range from -65°C to 125°C.
The maximum forward voltage drop for the BAT54CT-7-F is 1 V.
This diode features a common cathode configuration suitable for various circuit topologies.
The peak reverse recovery time is 5 ns, which helps minimize switching losses.
This diode is packaged in a SOT-523 (SC-89) type, which is compact for high-density PCB layouts.
Yes, it conforms to the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The peak non-repetitive forward surge current is rated at 600 mA.
This model is designed as a switching rectifier, suitable for high-speed switching operations.
The peak reverse current for the BAT54CT-7-F is 2 μA.
