| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAS70W-04-7-F |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAS70W |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Series |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

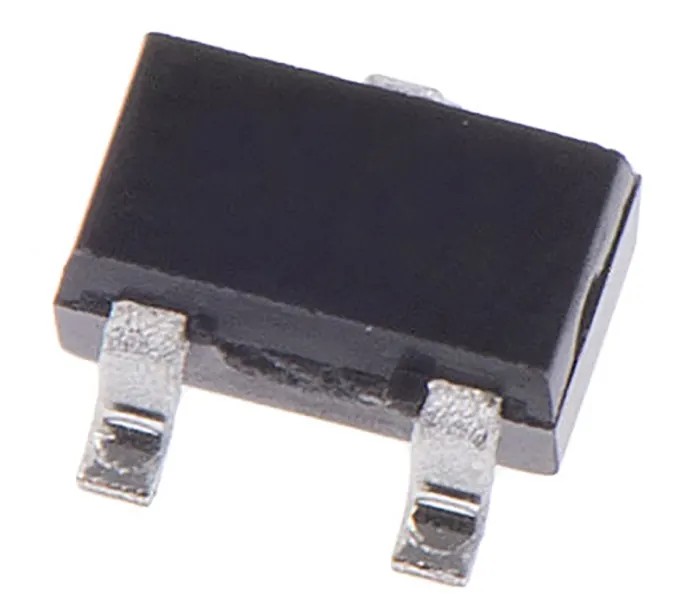

DiodesZetex BAS70W-04-7-F is a Schottky barrier switching diode engineered for efficient low voltage, low current rectification applications. Featuring a 3-pin SC-70 surface mount package, it is designed for compact and reliable use in semiconductor devices.
This diode supports a maximum continuous forward current of 70 mA and provides a peak reverse repetitive voltage rating of 70 V, making it suitable for various electronic and automotive circuits where voltage blocking and rectification are required.
Its low forward voltage drop of 1 V enhances power efficiency while the exceptionally fast peak reverse recovery time of 5 nanoseconds enables high-speed switching performance. The diode's rugged operating temperature range from -55°C to 125°C meets the demands of industrial and automotive environments, validated by compliance with the automotive AEC-Q101 standard.
The compact SC-70 package dimensions (2.2 mm length x 1.35 mm width x 1 mm height) ensure minimal PCB space occupation, suitable for modern electronic designs. Peak surge current handling of 100 mA allows resilience against transient surges.
Low forward voltage drop and high switching speed optimize circuit efficiency. 3-pin SC-70 surface mount package for space-saving PCB designs. Wide operating temperature range supports automotive and industrial use cases.
Automotive standard AEC-Q101 certified for high reliability. Compact dimensions enable integration into dense circuitry. Peak surge current supports transient condition robustness. Ideal for power management, signal rectification, and low voltage switching tasks.
This switching diode is ideal for use in power & connectors, semiconductor applications including discrete and automotive electronics. It is an essential component for electronic engineers designing efficient switching and rectification solutions.
Explore more semiconductor and diode products for your industrial and electronic needs on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
