DiodesZetex Schottky Barrier Diode Switching 70 V 70 mA Surface Mount SC-70 BAS70W-04-7-F

DiodesZetex BAS70W-04-7-F is a high-performance Schottky Barrier Diode designed for switching applications. It operates with a peak reverse repetitive voltage of 70 V and a continuous forward current of 70 mA, packaged in a small SC-70 surface mount format suitable for space-constrained electronic designs.

This device offers a low forward voltage drop of 1 V and fast reverse recovery time of 5 ns, optimizing power efficiency and switching speed in semiconductor circuits. Its peak reverse current is minimal at 100 nA, reducing unwanted leakage during operation.

Engineered for durability, the diode withstands a broad temperature range from -55°C to 125°C, making it ideal for automotive and industrial environments where temperature reliability is critical. The diode meets the automotive standard AEC-Q101, ensuring compliance with rigorous quality metrics for automotive electronics.

Compact physical dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height enable easy integration on modern printed circuit boards, especially where size and weight are limiting factors. The surface mount design supports automated assembly processes, improving production efficiency.

Typical applications include power management circuits, protection devices, and switching regulators within electronics, industrial controls, and automotive systems. The device is sourced directly from manufacturers and maintains new condition status.

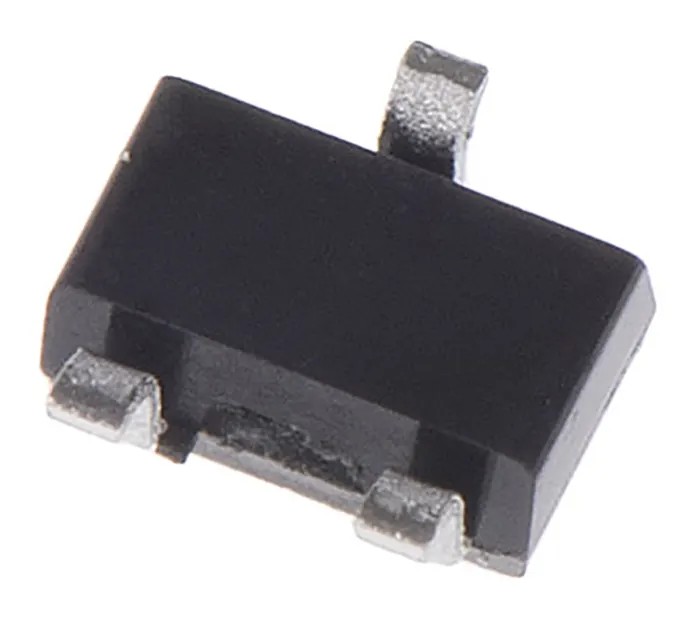

Compact 3-pin SC-70 surface mount package eases PCB integration. Maximum continuous forward current of 70 mA for efficient performance. Peak reverse repetitive voltage rating of 70 V ensures reliable operation. Low forward voltage drop improves power efficiency.

Wide operating temperature range from -55°C to 125°C guarantees durability. Peak reverse current of just 100 nA minimizes leakage current losses. Quick reverse recovery time of 5 nanoseconds supports high-frequency switching.

Complies with automotive AEC-Q101 standard for stringent quality requirements. Compact size with 2.2 mm length, 1.35 mm width, and 1 mm height. Manufactured in China with new product condition ensured. Explore our extensive range of Schottky diodes and semiconductor components at EnvMart for industrial, automotive, and electronic manufacturing needs.
