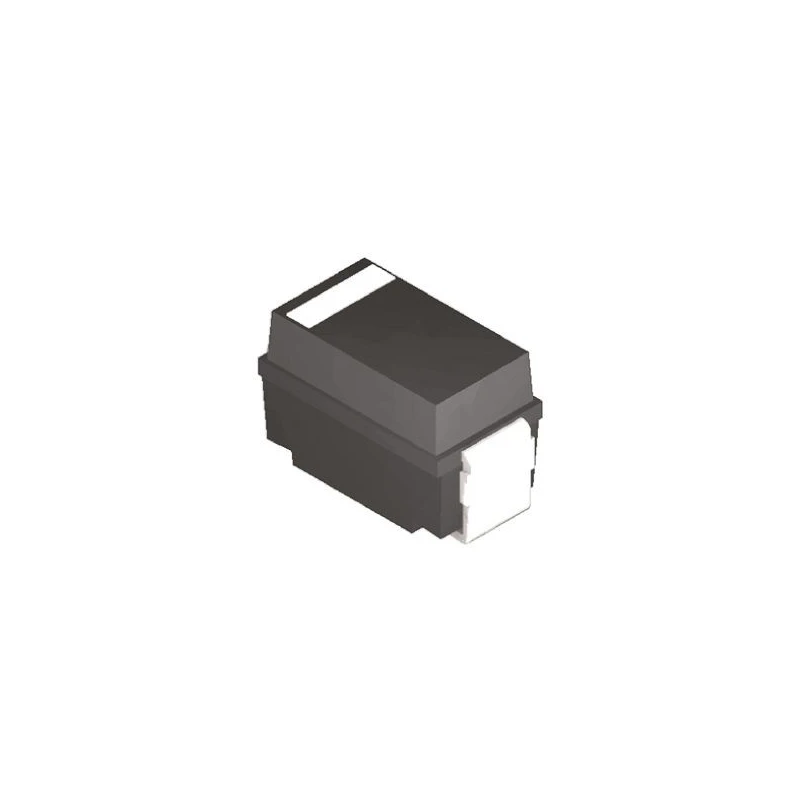

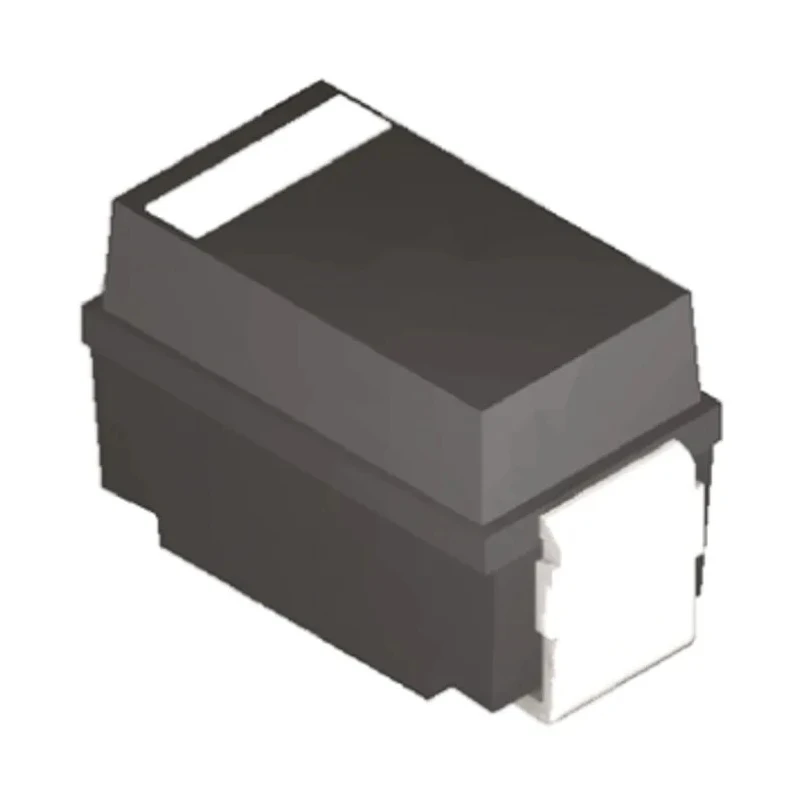

DiodesZetex 50 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AC B250A-13-F

Name: DiodesZetex 50 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AC B250A-13-F
Brand: DiodesZetex
SKU: 363516
Price: 0.26 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	2.1mm
Length	4.6mm
Model	B250A-13-F
Width	2.92mm
Mount Type	Surface
Series	B250A
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	50V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	700mV

Key Features

Maximum continuous forward current of 2 A ensures reliable performance in power applications.
Peak reverse repetitive voltage rating of 50 V provides effective voltage blocking capability.
Low maximum forward voltage of 700 mV optimizes energy efficiency.
Operating temperature range from -65°C to 150°C for robust thermal stability.
Compact dimensions of 4.6 mm length, 2.92 mm width, and 2.1 mm height enable efficient PCB space utilization.
Two-pin DO-214AC package supports surface mount assembly and automated production.
Complies with FBI standards and automotive grade AEC-Q101 certification.
Peak non-repetitive forward surge current rating of 50 A for transient robustness.

Product Description

DiodesZetex B250A-13-F is a high performance Schottky diode designed for surface mount applications, featuring a maximum continuous forward current of 2 A and peak reverse voltage capability of 50 V. This 2-pin device housed in a compact DO-214AC package offers excellent thermal stability with an operating temperature spectrum from -65°C to 150°C, making it ideal for industrial, automotive, and power management applications.

The diode is characterized by a low maximum forward voltage of 700 mV that reduces power losses and improves overall efficiency in electronic circuits. Its peak non-repetitive forward surge current of 50 A provides reliable protection during transient overload conditions. Dimensions of 4.6 mm length, 2.92 mm width, and 2.1 mm height promote dense PCB designs while maintaining mechanical robustness.

Certified to meet FBI and automotive AEC-Q101 standards, the B250A-13-F Schottky diode is suitable for stringent industrial uses including power supply rectification, switching, and voltage clamping in automotive and electronic equipment.

Maximum continuous forward current of 2 A ensures reliable performance in power applications. Peak reverse repetitive voltage rating of 50 V provides effective voltage blocking capability. Low maximum forward voltage of 700 mV optimizes energy efficiency.

Operating temperature range from -65°C to 150°C for robust thermal stability. Compact dimensions of 4.6 mm length, 2.92 mm width, and 2.1 mm height enable efficient PCB space utilization. Two-pin DO-214AC package supports surface mount assembly and automated production.

Complies with FBI standards and automotive grade AEC-Q101 certification. Peak non-repetitive forward surge current rating of 50 A for transient robustness.

This diode fits a wide spectrum of industrial, automotive, and commercial electronic systems requiring robust semiconductor rectifiers with low forward voltage drop and automotive-grade reliability. EnvMart stocks this premium DiodesZetex component to support engineering, manufacturing, and repair activities with assured quality and technical performance.
