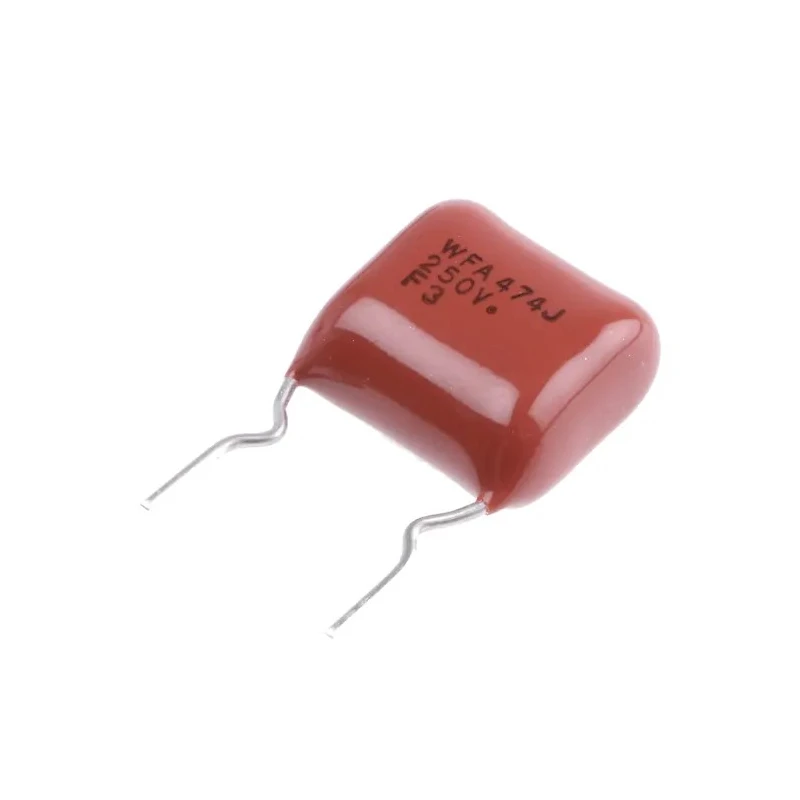

Panasonic ECWF(A) Film Capacitor, ±5 %, 470 nF, 250 V dc 250 V ac, Through Hole ECWF2474JAQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 22.1mm |
| Length | 13mm |
| Model | ECWF2474JAQ |
| Packaging | Bag |
| Width | 8.4mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 727-0007Brand: PanasonicManufacturers Part No.: ECWF2474JAQDistrelec Article No.: 304-45-735 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Capacitance value of 470 nF ensures reliable performance in electronic circuits.
- Rated DC and AC voltages of 250 V support high current applications.
- Tolerance of ±5 % provides precision in capacitance value.
- Constructed with metallized polypropylene film for low loss and low noise operation.
- Designed for high frequency and high current circuits including active filter applications.
- Encapsulated in self-extinguishing UL94V-0 compliant material for safety.
- Compliance with CSA, EN, and UL standards ensures reliability and safety.
- Lead pitch of 10 mm and lead diameter of 0.6 mm suitable for through hole PCB mounting.
Product Description
Panasonic ECWF2474JAQ film capacitor is a specialized passive electronic component designed for high current and high frequency applications. Featuring a capacitance of 470 nanofarads with a tolerance of ±5 %, it is rated for both 250 V DC and 250 V AC voltages, making it ideal for demanding electronic circuits such as high frequency filters and power circuits.
This capacitor utilizes metallized polypropylene film technology, which offers excellent electrical characteristics including low dissipation factor (0.1 %) and low hum noise, ensuring stable and efficient circuit operation. It is encapsulated in a powder resin coating and self-extinguishing UL94V-0 compliant material for enhanced safety and durability in industrial and commercial applications.
The ECWF(A) series is approximately 50 % smaller than analog series like ECQE(H), allowing for compact PCB designs. The through hole mounting with 10 mm lead pitch and 0.6 mm lead diameter ensures secure and reliable mechanical and electrical connections on printed circuit boards.
Key technical specifications include compliance with automotive standard AEC-Q200 and electrical safety approvals such as CSA E60384-14, EN 60384-14, and UL 60384-14. The operational temperature range from -40°C to +105°C makes it suitable for use in harsh environments including industrial, automotive, and consumer electronics.
Capacitance: 470 nF with ±5 % tolerance. Rated DC and AC voltage: 250 V. Metallized polypropylene film technology for low loss and noise. Compact size and lightweight design. Through hole mount with 10 mm lead pitch. Self-extinguishing encapsulation for safety.
Operating temperature range: -40°C to 105°C. Compliance with multiple international safety and automotive standards.
This film capacitor is widely used in industrial electronics, power supplies, active filters, automotive circuits, and high frequency applications requiring high reliability and performance. Its compact design and excellent electrical properties make it an optimal choice for engineers and designers.
Explore more Film Capacitors and related components at EnvMart for your circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 470 nF with a tolerance of ±5 %.
It is rated for both 250 V DC and 250 V AC, making it suitable for high current applications.
The operational temperature range is from -40°C to +105°C, allowing its use in various environments.
This model features a through hole mounting type with a lead pitch of 10 mm and a lead diameter of 0.6 mm.
It is constructed with metallized polypropylene film technology, which provides low loss and low noise operation.
It complies with automotive standard AEC-Q200 and electrical safety approvals such as CSA, EN, and UL standards.
The dissipation factor for this model is 0.1 %, indicating efficient performance in electronic circuits.
The dimensions are 22.1 mm in height, 13 mm in length, and 8.4 mm in width.
It is widely used in industrial electronics, power supplies, active filters, automotive circuits, and high frequency applications.
This capacitor is packaged in a bag for distribution.
The encapsulation in self-extinguishing UL94V-0 compliant material enhances safety and durability in various applications.
Yes, it is designed for high frequency and high current circuits, including active filter applications.
