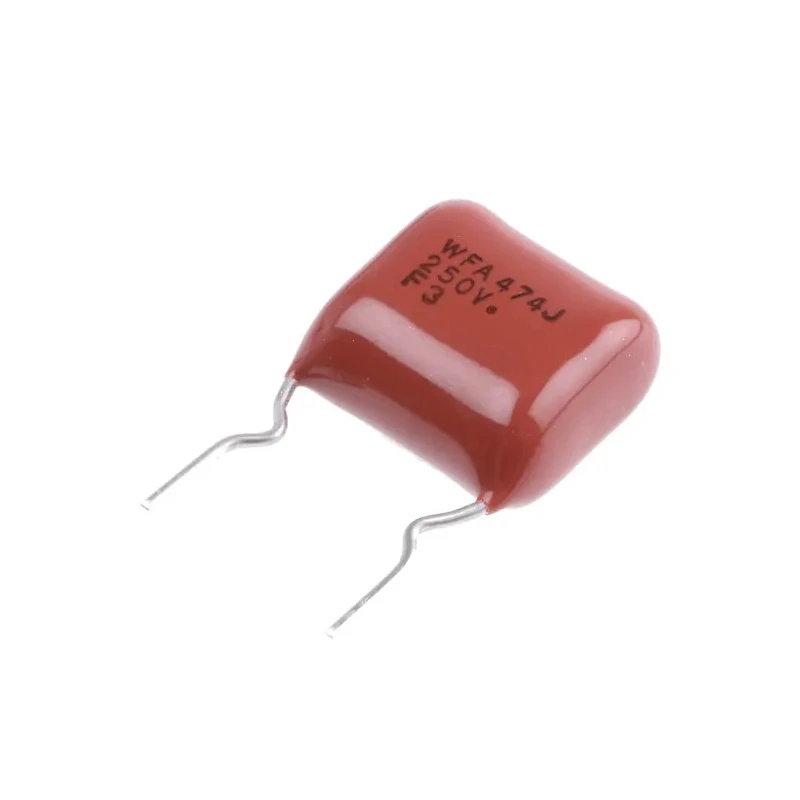

Panasonic ECWF(A) Film Capacitor, 470nF ±5%, 250V DC / 250V AC, Through Hole Mount ECWF2474JAQ

Panasonic ECWF2474JAQ is a metallised polypropylene film capacitor designed for demanding high frequency and high current electronic applications. With a capacitance of 470nF and a tight ±5% tolerance, this component ensures precise electrical performance. It is rated for a maximum DC and AC voltage of 250V, making it suitable for a broad range of industrial, automotive, and commercial electronic circuits.

The capacitor features a through hole mount type with a 10mm lead pitch and a 0.6mm lead diameter, providing robust mechanical and electrical connection on printed circuit boards. The product dimensions are compact with a height of 22.1mm, length of 13mm, and width of 8.4mm, enabling integration in space-constrained designs.

It operates reliably across a wide temperature range from -40°C to 105°C, supported by encapsulation in a self-extinguishing material compliant with UL94V-0 safety standards, ensuring durability and fire resistance in challenging environments.

Panasonic ECWF(A) Film Capacitors are recognized for their low loss and low noise characteristics, making them ideal for high current circuits, active filter circuits, and high frequency applications.

This capacitor is compliant with automotive standard AEC-Q200, showing its capacity for automotive electronics use, alongside meeting international safety standards CSA E60384-14, EN 60384-14, and UL 60384-14.

Packaging in bags facilitates efficient handling and storage, suitable for manufacturing and production environments. The capacitor provides excellent frequency response and low hum noise for enhanced circuit performance.

Its safety construction and compliance with global standards ensure reliability and quality assurance. Ideal applications include industrial electronics, automotive electronics, power supplies, and filtering circuits. Explore more Panasonic electronic components at EnvMart for high performance and reliability in your projects.
