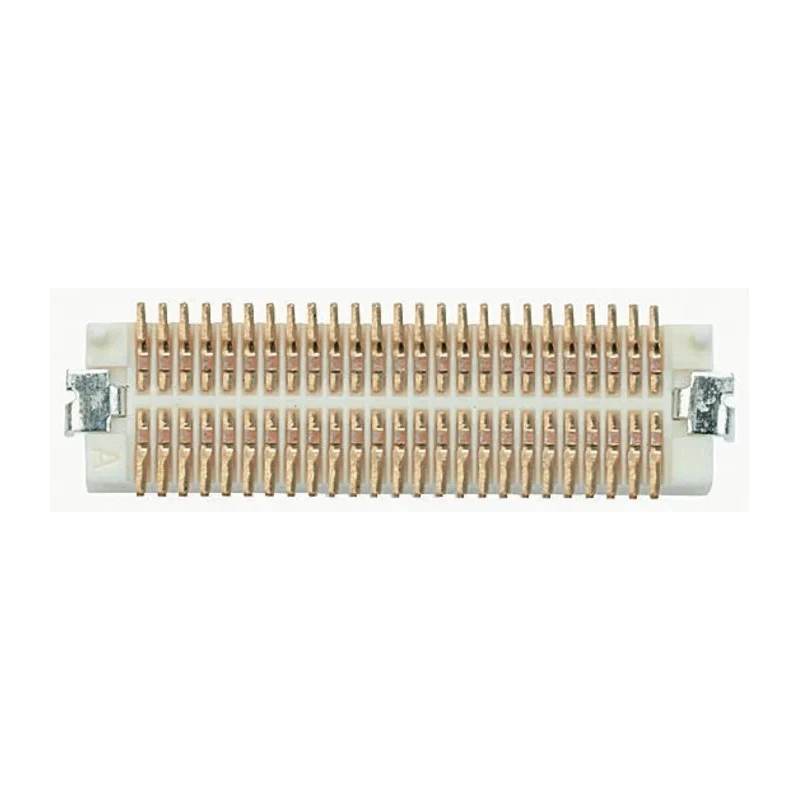

Hirose DF12 Series Straight Surface PCB Header, 50 Contacts, 0.5 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF12 Series Straight Surface PCB Header, 50 Contacts, 0.5 mm Pitch, 2 Row, Shrouded

Name: Hirose DF12 Series Straight Surface PCB Header, 50 Contacts, 0.5 mm Pitch, 2 Row, Shrouded
Brand: Hirose
SKU: 354729
Price: 2.75 USD
Availability: InStock



Category PCB Headers Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	Hirose
Orientation	Straight
Current	300mA
Model	DF12
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DF12
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	0.5mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	705-4997PBrand: HiroseManufacturers Part No.: DF12E(3.5)-50DP-0.5V(81)
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed with a polyamide housing for durability and UL94V-0 flame retardancy.
Features a shrouded two-row connector system ensuring secure and reliable connections.
Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Designed for a voltage rating of 50V and current capacity of 300mA.
Operates reliably between -40°C and 125°C for diverse environmental conditions.
Solder termination type and male contact gender for standard PCB mounting.
Suitable for mobile phones, LCDs, notebooks, and other compact electronic devices.
Available in varied stacking heights, with this model at 3.5 mm stacking height.

Product Description

Hirose DF12E(3.5)-50DP-0.5V(81) PCB Header is a high-precision, straight surface mount board-to-board connector designed with 50 male contacts arranged in two rows at a fine pitch of 0.5 mm. Its polyamide housing with UL94V-0 flame retardancy and gold-plated copper alloy contacts ensure durability, excellent conductivity, and resistance to corrosion.

Engineered to support a voltage of 50V and current up to 300mA, this connector operates efficiently in temperatures ranging from -40°C to 125°C, making it ideal for use in compact electronics such as mobile phones, LCD displays, and notebook PCs. Its shrouded design enhances safety and connection reliability by reducing mis-mating risks.

The solder termination type facilitates surface mounting on PCBs, suitable for high-volume manufacturing and automated assembly processes. Various stacking heights are available within the DF12 series, with this model featuring a 3.5 mm stacking height to accommodate various design requirements.

These connectors are widely applied in industrial, electronics manufacturing, telecommunications, and consumer electronics sectors, supporting high-density PCB layouts and demanding performance criteria. The robust design allows for seamless integration in challenging environments with stringent electrical and mechanical demands.

Polyamide housing delivers excellent mechanical strength and flame retardance. Gold plated copper alloy contacts provide superior electrical contact and longevity. Shrouded two-row connector system ensures reliable and safe connections.

0.5 mm pitch supports ultra-miniature high-density PCB designs. Temperature range from -40°C to 125°C suits diverse application conditions. Solder termination supports automated PCB assembly processes. Voltage rating of 50V and current rating of 300mA meet typical electronics application needs.

Ideal for mobile phone, LCD, and notebook PC connectivity solutions.

Set contains one Hirose DF12 Series PCB Header with 50 contacts, 0.5 mm pitch, 2 rows, and shrouded construction. Explore the extensive range of Hirose PCB connectors and headers on EnvMart for all your electronics component needs.

Explore more products in our PCB Headers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a voltage rating of 50V and a current capacity of 300mA.

The DF12 series connector features a 0.5 mm pitch and is designed with 50 contacts arranged in two rows.

It operates reliably between -40°C and 125°C, making it suitable for diverse environmental conditions.

The housing is made of polyamide, while the contacts are constructed from gold-plated copper alloy for excellent conductivity and corrosion resistance.

This unit features a solder termination type, facilitating surface mounting on PCBs.

It utilizes a shrouded two-row connector system, which enhances connection reliability and reduces mis-mating risks.

It is suitable for use in mobile phones, LCDs, notebooks, and other compact electronic devices.

This model has a straight orientation, designed for board-to-board connections.

The gold plating on the contacts provides superior electrical contact and longevity, enhancing the connector's performance.

This model features a stacking height of 3.5 mm, accommodating various design requirements.

The country of origin for this product is India.

This connector is engineered to support high-density PCB layouts in industrial, electronics manufacturing, telecommunications, and consumer electronics sectors.
