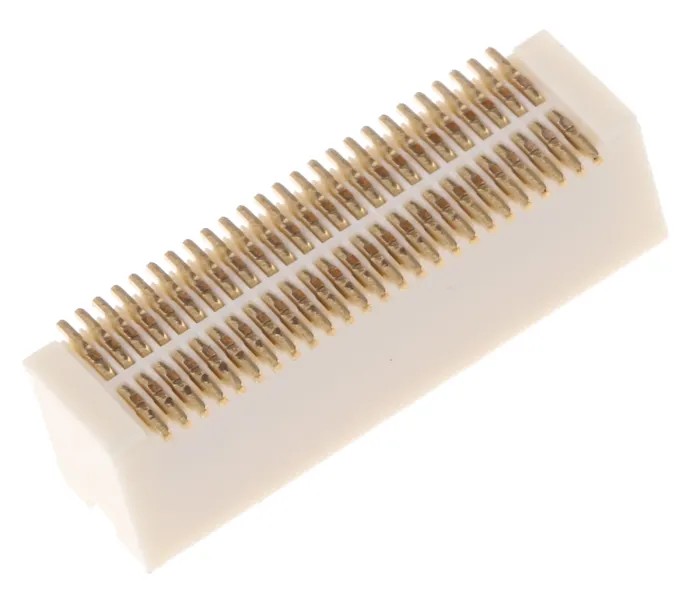

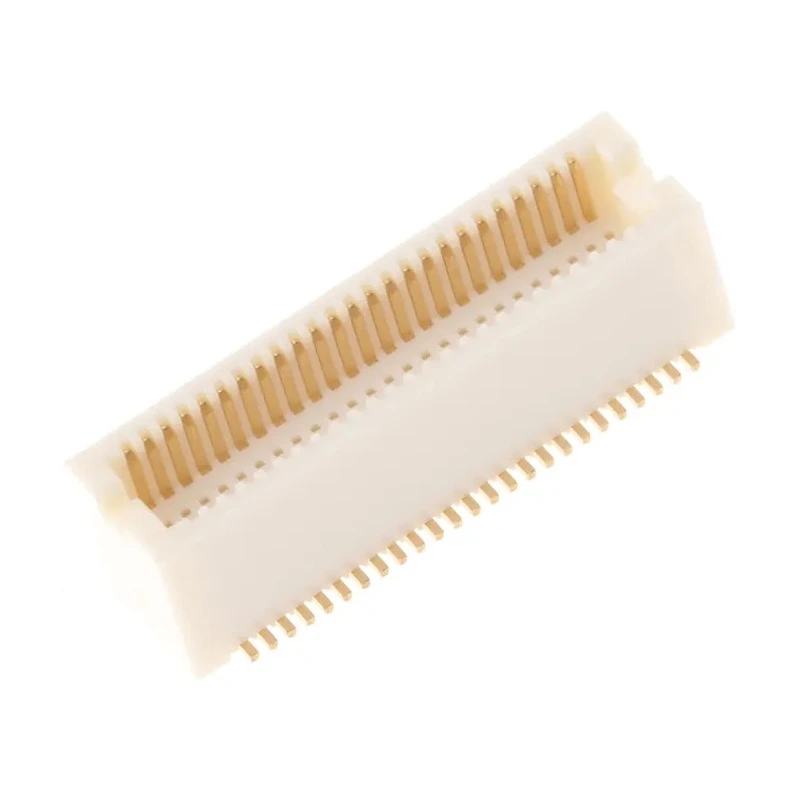

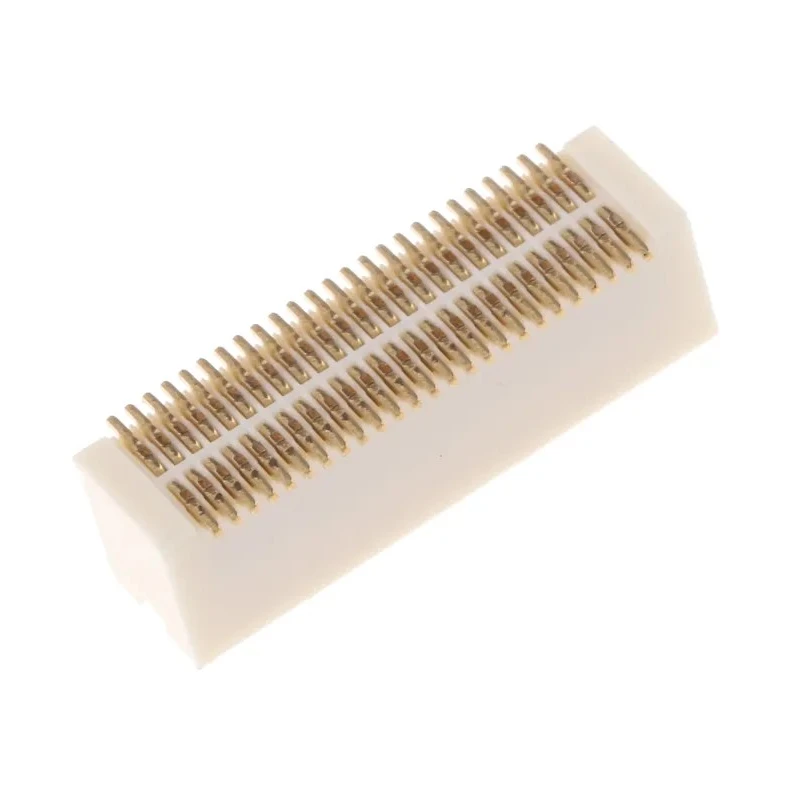

Hirose DF12 Series Straight Surface PCB Header 50 Contacts 0.5 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 705-4994Brand: HiroseManufacturers Part No.: DF12E(5.0)-50DP-0.5V(81) |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The connector features a gold plated copper alloy contact ensuring excellent conductivity.
- Polyamide housing provides durable insulation and meets UL94V-0 flammability standards.
- It supports a maximum operating temperature of 125°C and minimum of -40°C.
- Rated for 50 V operation and current carrying capacity of 300 mA.
- The termination type is solder, optimizing connection stability on PCB surfaces.
- Compact double row design with 0.5 mm pitch is ideal for ultra-miniature board-to-board applications.
- Shrouded design protects contacts against damage and accidental shorts.
- Connector system is specifically for board-to-board interface, enabling efficient electronic device assembly.
Product Description
Hirose DF12E(5.0)-50DP-0.5V(81) PCB Header is a precision engineered straight surface mount connector designed for advanced electronics applications. With 50 gold plated copper alloy contacts arranged in a double row at a 0.5 mm pitch, this shrouded header ensures optimal electrical performance and durability.
The polyamide housing is rated UL94V-0, offering excellent fire resistance and mechanical stability. This connector is suitable for operating temperature ranges from -40°C up to 125°C, making it reliable under harsh environmental conditions typical of industrial, telecommunications, and mobile electronics manufacturing.
Rated for 50 V and 300 mA current, the DF12 series header provides secure board-to-board connections essential for compact and high-density designs. The solder termination type simplifies PCB assembly and enhances connection integrity. The shrouded feature further guards pins from mechanical stress or accidental conductivity issues in dense circuit layouts.
The ultra-miniature size and versatile stacking heights available in DF12 series make it ideal for mobile phones, LCD panels, notebook PCs, and other compact electronic devices. Its robust construction supports high-frequency signals and frequent mating cycles, ensuring long-lasting performance.
Applications include industrial electronics, telecommunications equipment, medical devices, computing hardware, and other advanced electronic systems requiring reliable, miniature interconnect solutions.
Gold plated copper alloy contacts for superior conductivity. Durable polyamide housing compliant with UL94V-0 fire safety standards. Wide operating temperature range from -40°C to 125°C. Designed for 50 V voltage and 300 mA current.
Compact 0.5 mm pitch with 2-row shrouded design. Solder termination type for secure PCB assembly. Ideal for mobile phones, LCDs, notebooks, and industrial electronics. Supports efficient, high-density board-to-board connections.
Explore a wide range of Hirose connectors and PCB Headers at EnvMart to find the perfect component solutions for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This connector features a 0.5 mm pitch and has 50 contacts arranged in a double row.
The housing is made of polyamide, and the contacts are constructed from gold plated copper alloy.
It has a current carrying capacity of 300 mA.
This model utilizes a solder termination type, which optimizes connection stability on PCB surfaces.
This connector is shrouded, which helps protect the contacts against damage and accidental shorts.
It is rated for operation at 50 V.
This model is suitable for applications in industrial electronics, telecommunications equipment, medical devices, and computing hardware.
The orientation of this connector is straight.
The minimum operating temperature is -40°C.
The country of origin for this model is India.
This connector is designed for board-to-board interconnections.
