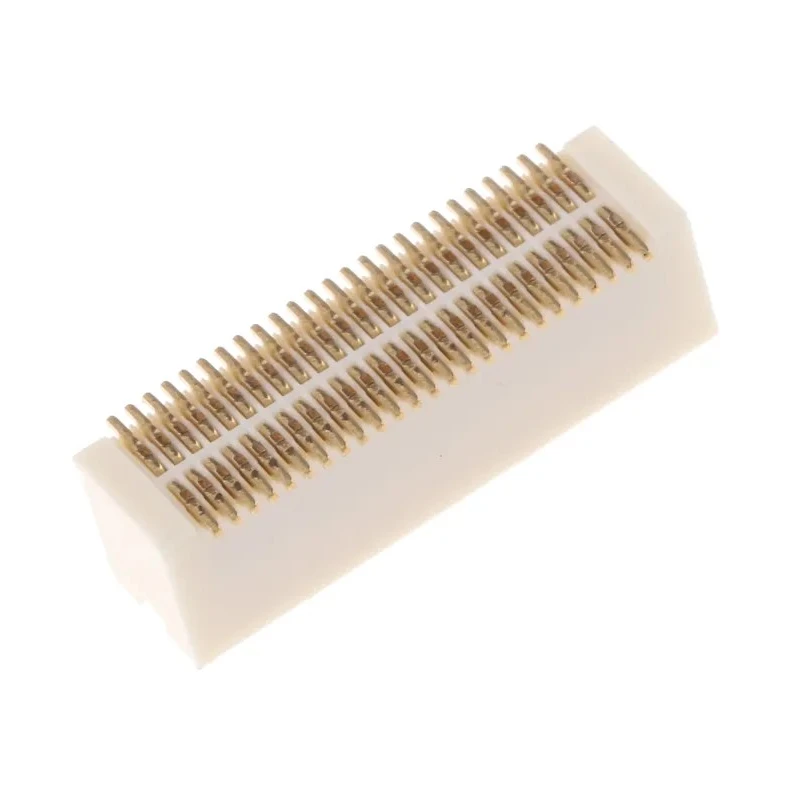

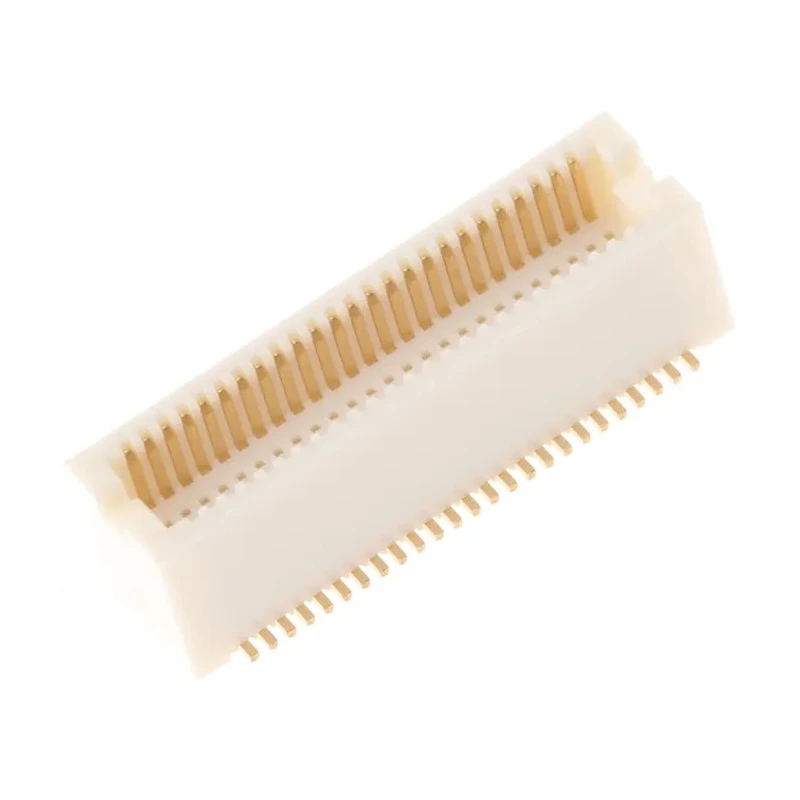

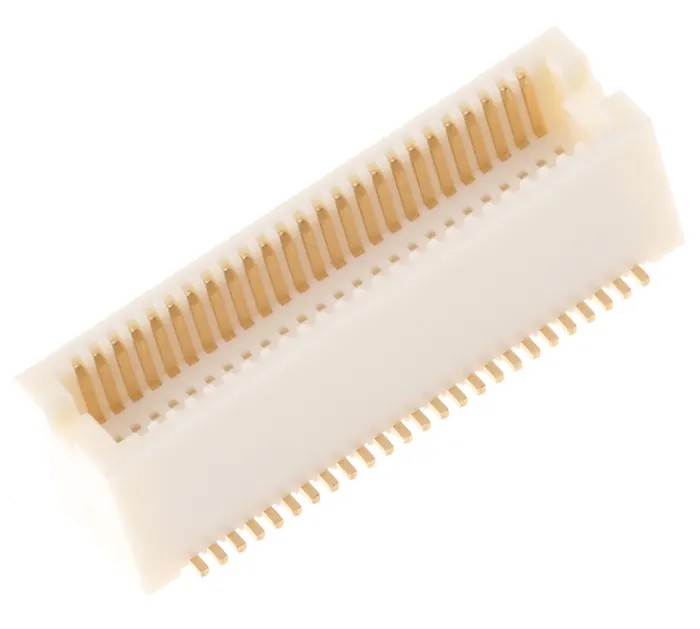

Hirose DF12 Series Straight Surface PCB Header, 50 Contacts, 0.5 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 705-4994PBrand: HiroseManufacturers Part No.: DF12E(5.0)-50DP-0.5V(81) |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Composed of polyamide housing providing durability and heat resistance.
- Features gold-plated copper alloy contacts for reliable conductivity.
- Operates reliably between -40°C and 125°C temperatures.
- Offers a rated voltage of 50V and current capacity up to 300mA.
- Designed for board-to-board connectivity with solder termination.
- Provides a fine 0.5 mm contact pitch for compact electronic assemblies.
- Shrouded, male contact gender design ensures stable mating and protection.
- Suitable for mobile phones, LCD, and note PC applications.
Product Description
Hirose DF12E(5.0)-50DP-0.5V(81) Series Straight Surface Mount PCB Header is designed for ultra-compact board-to-board connections in electronic assemblies. It features 50 gold-plated copper alloy contacts arranged in two straight rows with a fine 0.5 mm pitch. The header is housed in a UL94V-0 rated polyamide body ensuring flame resistance and durability.
This shrouded PCB header offers reliable electrical performance with a maximum operating voltage of 50V and current capacity of 300mA. It withstands a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial and consumer electronic environments.
The SMT surface mount design facilitates efficient PCB assembly processes. Its male contact gender and solder termination type provide secure and durable mating with complementary connectors.
Applications for this connector include mobile phones, LCD panels, and notebook PCs, where compactness and high-density connections are critical. The DF12 series supports various stacking heights, with this specific model featuring a 5.0 mm stacking height for improved design flexibility.
Durable polyamide housing ensures flame resistance and mechanical stability. Gold-plated copper alloy contacts deliver high conductivity and corrosion resistance. Wide operating temperature range from -40°C up to 125°C for versatility.
Compact 0.5 mm pitch accommodates fine-pitch PCB layouts. Surface mount technology simplifies automated assembly processes. Shrouded design provides protection and stability during mating. Male contact configuration supports standard mating with female headers.
Ideal for mobile phone and LCD electronic component connection applications.
Explore more high-quality PCB connectors and headers in EnvMart’s Electronics & Electricals category to find compatible components tailored to your specific industrial or commercial electronics projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this PCB header is 50V.
This connector has a current capacity of up to 300mA.
The contact pitch of this model is 0.5 mm, allowing for compact electronic assemblies.
It operates reliably between -40°C and 125°C, making it suitable for various environments.
This connector uses surface mount technology for efficient PCB assembly processes.
The DF12 Series header features 50 contacts arranged in two rows.
It is composed of a polyamide housing and features gold-plated copper alloy contacts for reliable conductivity.
The termination type for this model is solder, providing secure connections.
This connector has a male contact gender design, ensuring stable mating with female headers.
This model is suitable for applications in mobile phones, LCD panels, and notebook PCs.
The orientation of this PCB header is straight, facilitating easy integration into electronic assemblies.
The country of origin for this PCB header is India.
