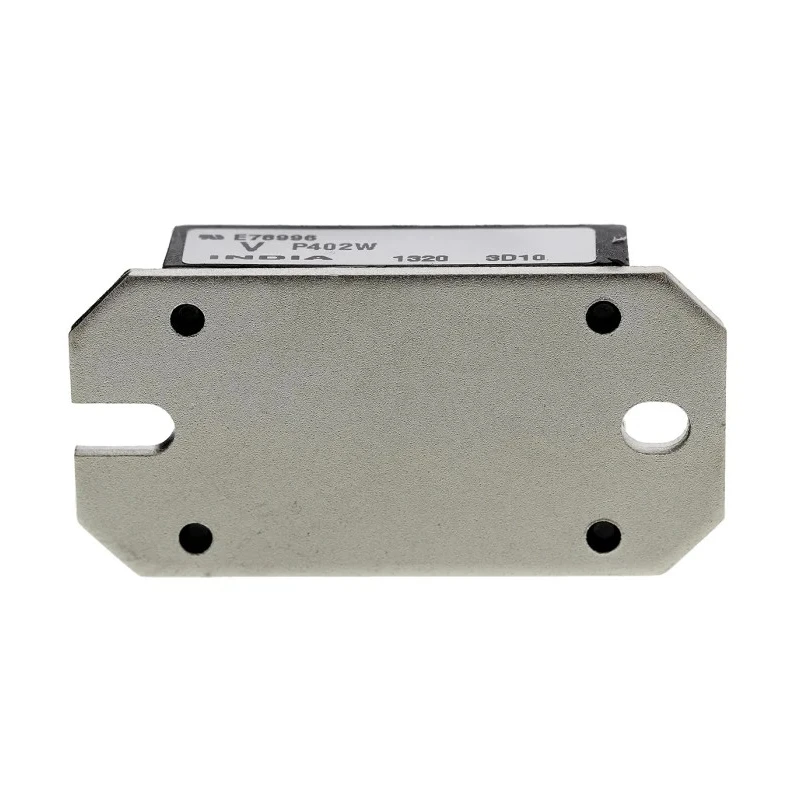

Vishay Thyristor Module VS-P402W 600 V 400 A Rated Current, Screw Mount, 6-Pin VS-P402W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15.5mm |
| Length | 63.5mm |
| Model | VS-P402W |
| Width | 32.5mm |
| Mount Type | Screw |
| Series | VS-P400 |
| Maximum Operating Temperature | 125°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5611Brand: VishayManufacturers Part No.: VS-P402W |
| Pin Count | 6 |
| Rated Average On-State Current Irms | 40A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 400A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 130mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.4V |
| Repetitive Peak Off-State Current | 0.1mA |
Key Features
- The module supports a rated average on-state current of 40 A.
- Equipped with a maximum gate trigger current of 60 mA for reliable operation.
- Features a screw mount type for secure installation.
- Compact dimensions of 63.5 mm length, 32.5 mm width, and 15.5 mm height.
- Maximum operating temperature rating of 125°C ensures durability in demanding environments.
- The module has 6 pins for electrical connectivity.
- Peak on-state voltage is 1.4 V for optimal performance.
- Part of the VS-P400 series suitable for single-phase and three-phase full bridge rectifiers.
Product Description
Vishay VS-P402W Thyristor Module is engineered for high current power control in industrial, electrical, and semiconductor applications. With a repetitive peak reverse voltage of 600 V and surge current rating of 400 A, this module delivers reliable switching performance under demanding conditions. The rated average on-state current of 40 A meets mid-range power control requirements.
The device features a screw mount configuration ensuring secure mechanical and electrical connection in assemblies. Its 6-pin design supports straightforward integration into control circuits. Measuring 63.5 mm in length, 32.5 mm in width, and 15.5 mm in height, the compact form factor helps save space in equipment layouts.
Designed to operate at a maximum temperature of 125°C, the Vishay VS-P402W exhibits excellent thermal tolerance, contributing to long-term stability and safety. The gate trigger current of 60 mA and peak on-state voltage of 1.4 V further enhance its efficiency and control accuracy.
This module belongs to the VS-P400 series, widely used in single-phase and three-phase fully controlled bridge rectifier configurations. Its isolated base plate and multiple connection options support versatile applications in power electronics.
The module supports a rated average on-state current of 40 A. Repetitive peak reverse voltage rating of 600 V. Screw mount type for secure installation. Maximum gate trigger current of 60 mA for reliable triggering. Compact dimensions: 63.5 mm length x 32.5 mm width x 15.5 mm height.
Operating temperature up to 125°C. 6-pin configuration for straightforward connectivity. Part of the VS-P400 series for controlled rectifier solutions. Ideal for industrial power control, motor drives, and power supply regulation in manufacturing, electrical distribution, and automation systems.
Explore more Vishay semiconductor products and modules in EnvMart’s Electronics & Electricals category for comprehensive power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this module is 125°C.
The rated average on-state current is 40 A.
The peak on-state voltage is 1.4 V.
This module features a 6-pin configuration for electrical connectivity.
The repetitive peak reverse voltage rating is 600 V.
The surge current rating is 400 A.
It uses a screw mount type for secure installation.
The dimensions are 63.5 mm in length, 32.5 mm in width, and 15.5 mm in height.
The maximum gate trigger current is 60 mA.
It is part of the VS-P400 series, suitable for controlled rectifier solutions.
This module is suitable for industrial power control, motor drives, and power supply regulation.
The maximum holding current is 130 mA.
