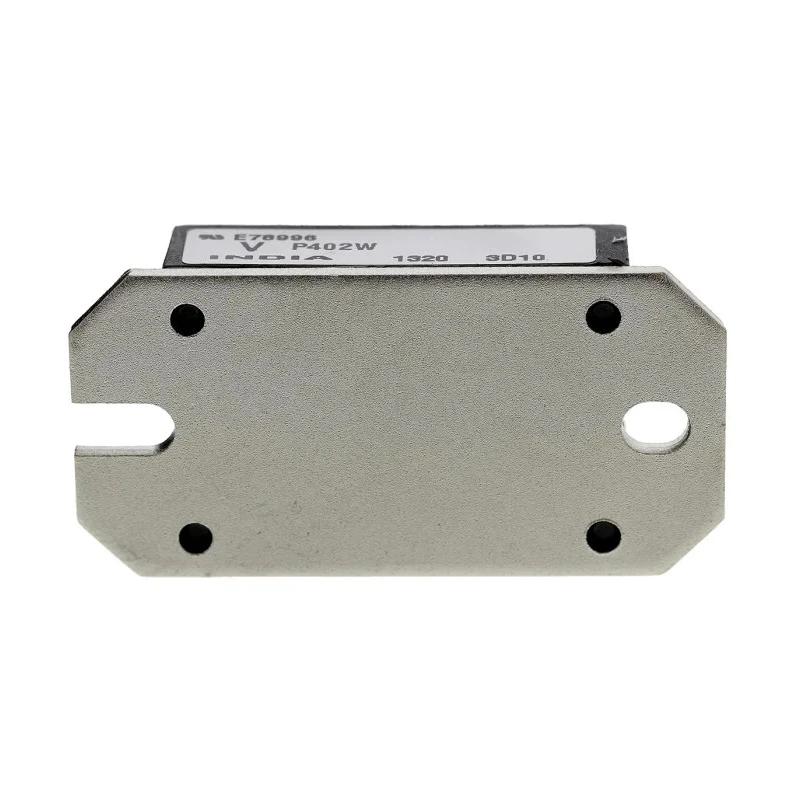

Vishay Thyristor Module 600 V 400 A Rated, 40 A Gate Trigger Current 60 mA VS-P402W

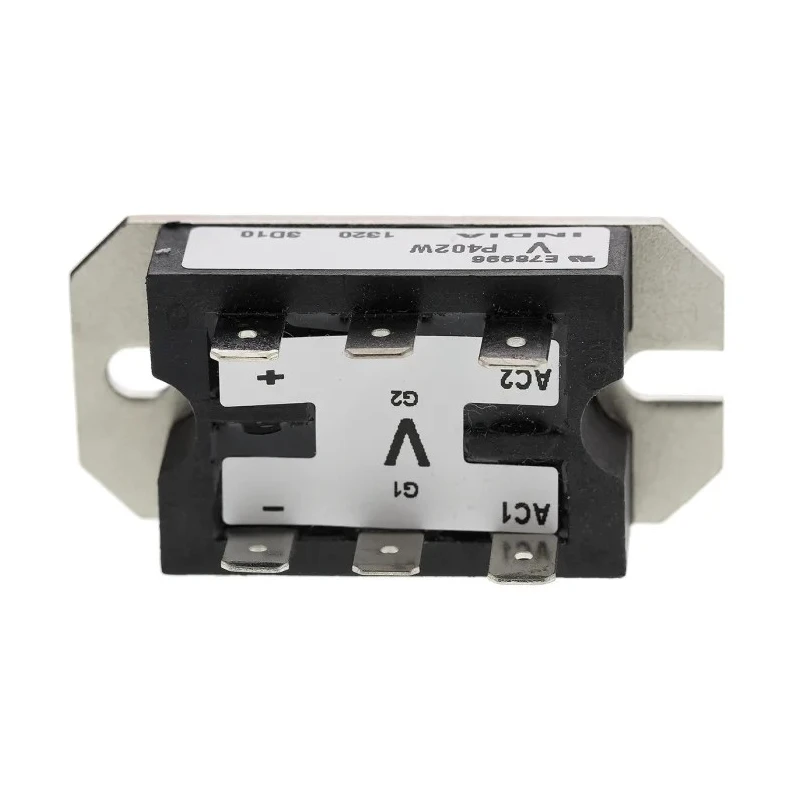

Vishay VS-P402W Thyristor Module is a robust semiconductor device designed for controlling high power electrical loads with a maximum repetitive peak reverse voltage of 600 V and surge current rating of 400 A. Its 6-pin design incorporates screw mounting, enhancing stability in electrical assemblies.

This module offers a gate trigger current threshold of 60 mA and a maximum holding current of 130 mA, allowing precise triggering control. It operates reliably at temperatures up to 125°C, making it suitable for demanding industrial and electronic applications.

With compact dimensions of 63.5 mm length, 32.5 mm width, and 15.5 mm height, the VS-P402W fits into space-conscious designs. It exhibits a low peak on-state voltage of 1.4 V to minimize power loss during conduction.

The product belongs to the VS-P400 series, which features single-phase and three-phase fully controlled bridge rectifiers with isolated base plates ideal for automation and power control systems. Screw terminal connection options allow flexible and secure installation.

Typical applications include industrial motor controls, power regulation units, switching devices in HVAC systems, and other manufacturing equipment requiring high current switching with precise control.

This module supports repetitive peak reverse voltage of 600 V. Surge current capability is rated at 400 A for transient load resilience. Maximum gate trigger current is 60 mA ensuring reliable activation. The device features 6 pins and screw mounting for installation flexibility.

Maximum operating temperature rated at 125°C for high-temperature environments. Physical dimensions compact at 63.5 mm x 32.5 mm x 15.5 mm. Low peak on-state voltage of 1.4 V reduces conduction losses. Part of the VS-P400 series for versatile bridge rectifier solutions.
