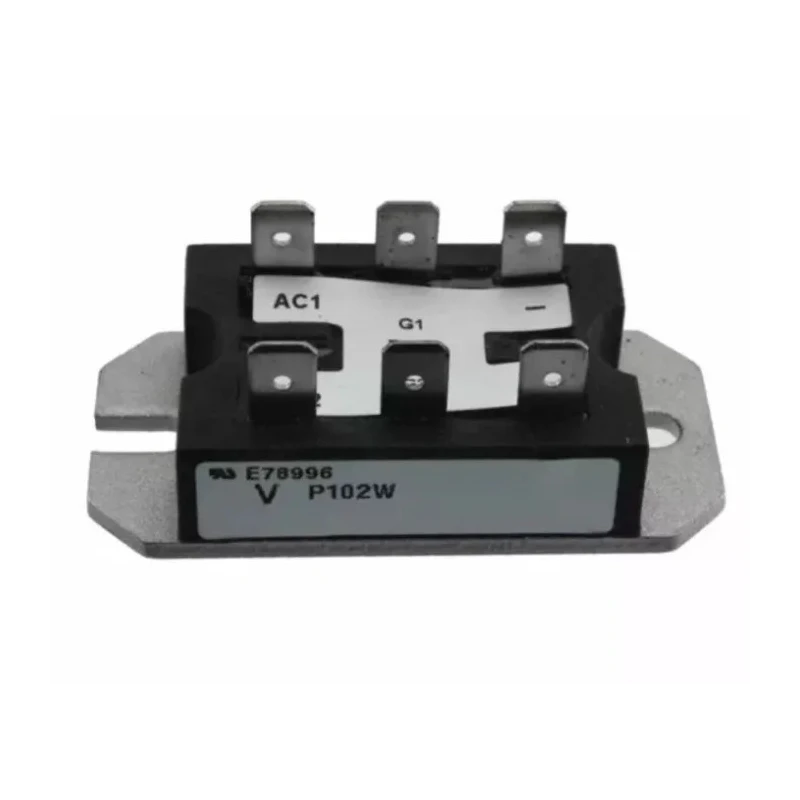

Vishay Thyristor Module VS-P102W 600 V 380 A 25 A Screw Mount 6-Pin VS-P102W

Vishay VS-P102W Thyristor Module is a high-performance semiconductor device rated at 600 V and 380 A, equipped with a screw mount for secure mechanical installation and a 6-pin configuration. It is engineered for industrial and power electronics applications requiring efficient and reliable control of high current and voltages.

The device supports a rated average on-state current of 25 A and has a surge current rating of 380 A, allowing it to handle transient high current conditions effectively. With a repetitive peak reverse voltage of 600 V, it is suitable for medium voltage power control systems.

The maximum gate trigger current is 60 mA and the gate trigger voltage is limited to 2 V, enabling precise triggering of the thyristor module. Its maximum holding current of 130 mA ensures that the device maintains conduction under load conditions.

Physically, the module measures 63.5 mm in length, 32.5 mm in width, and 15.5 mm in height, making it compact enough for integration into various electronic assemblies. It operates reliably in temperatures up to 125°C, ensuring durability in demanding industrial environments.

This product is part of the VS-P100 series of thyristor modules that include options for single-phase and 3-phase fully controlled bridge rectifiers with isolated base plates. The screw mount type facilitates easy installation in power control circuits.

Rated Average On-State Current of 25 A for electrical performance. Surge Current Rating of 380 A for transient durability. Repetitive Peak Reverse Voltage of 600 V for high voltage tolerance. Screw mount for secure installation.

Maximum Gate Trigger Current of 60 mA for precise activation. Compact 63.5 x 32.5 x 15.5 mm size. Maximum operating temperature of 125°C. 6-pin configuration for reliable electrical connection. Part of VS-P100 series for versatile use in power electronics.

This Vishay Thyristor Module suits industrial power electronics, semiconductor controls, automated manufacturing, and HVAC systems. It enables robust control of electrical power with high surge capacity and thermal endurance. Explore the extensive range of semiconductor modules on EnvMart for your industrial applications.
