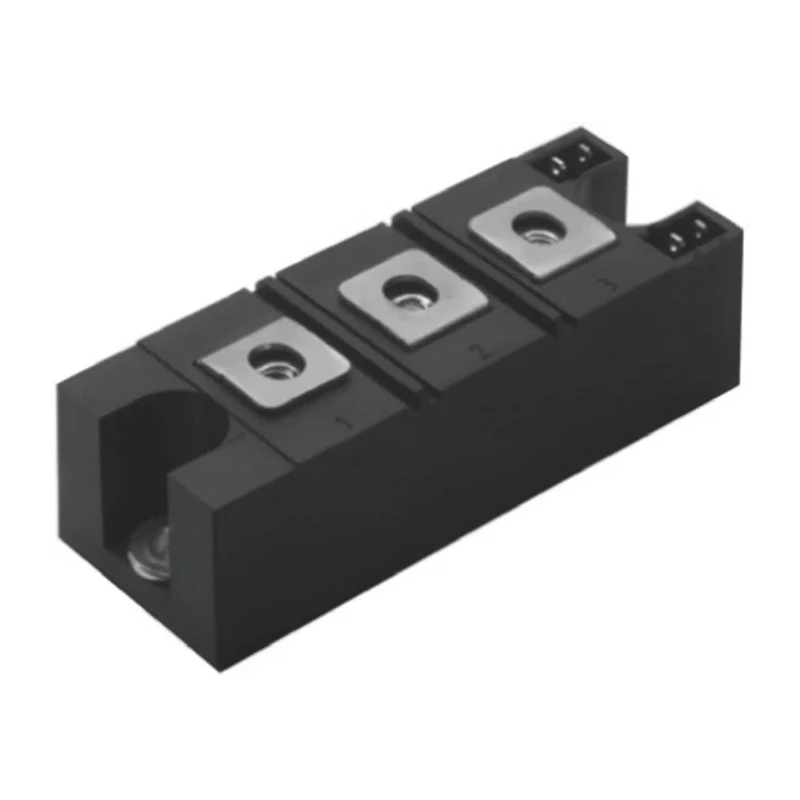

Vishay Thyristor Module 1600 V 5.1 kA 160 A 270 mA 1.54 V INT-A-PAK 7-Pin VS-VSKT162/16PBF

Vishay VS-VSKT162/16PBF Thyristor Module is a solid-state semiconductor device engineered for industrial applications requiring robust switching performance. Featuring a repetitive peak reverse voltage rating of 1600 V and a surge current rating of 5.1 kA, this module is suitable for use in demanding environments such as battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits.

This INT-A-PAK encapsulated module includes two Silicon-Controlled Rectifiers (SCRs) configured for high surge capability with electrical isolation achieved by a 3500 VRMS rated metal base. The device features a low peak on-state voltage of 1.54 V and maximum gate trigger current of 270 mA, permitting precise gate control. Operating temperatures can reach up to 125°C, ensuring reliable performance under industrial thermal loads.

The module’s compact design measures 94 mm in length, 35 mm in width, and 30 mm in height. It mounts easily to panels with its 7-pin interface. While it lacks automotive certification, it complies with UL approval file E78996, affirming its quality and safety standards for industrial semiconductor components.

Vishay’s VS-VSKT162/16PBF is ideal for industrial, manufacturing, and electrical applications demanding reliable high current control and isolation within power electronics systems.

Rated average on-state current of 160 A supports sustained conduction. Peak surge current capability of 5.1 kA ensures handling of transient loads. Industrial standard INT-A-PAK encapsulation provides robust protection and ease of integration.

Thermal rating up to 125°C accommodates harsh industrial environments. 7-pin panel mount design for secure installation and reliable connections. Explore more Vishay semiconductor modules and power components at EnvMart for your industrial and manufacturing engineering needs.
