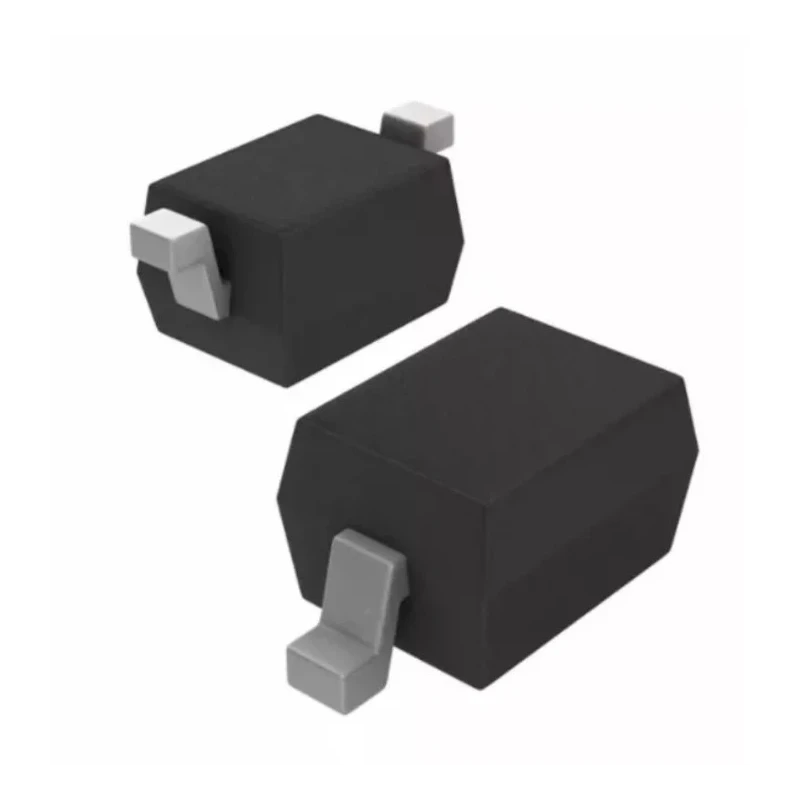

Vishay Silicon Junction Switching Diode 2-Pin SOD-323 150mA 75V 1N4148WS-E3-08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode 2-Pin SOD-323 150mA 75V 1N4148WS-E3-08

Name: Vishay Silicon Junction Switching Diode 2-Pin SOD-323 150mA 75V 1N4148WS-E3-08
Brand: Vishay
SKU: 352928
Price: 20.22 USD
Availability: InStock



Category Discrete Semiconductor Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.05mm
Length	1.95mm
Model	1N4148WS-E3-08
Width	1.5mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-323
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	700-3677 Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: 1N4148WS-E3-08 Distrelec Article No.: 30151988
Pin Count	2
Maximum Power Dissipation Pd	200mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	350mA
Maximum Forward Voltage Vf	1.2V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	150mA
Maximum Peak Reverse Repetitive Voltage Vrrm	75V

Key Features

Features a glass-passivated junction for high reliability and fast switching.
Supports a maximum power dissipation of 200mW with low leakage current below 0.2 μA.
Maximum forward voltage is 1.2V suitable for efficient rectification.
Operates within a temperature range of -55°C to 150°C for versatile environments.
Compact dimensions of 1.95mm length, 1.5mm width, and 1.05mm height ensure space-saving PCB design.
Matte tin plated leads for improved solderability and durability.
Superectifier structure enabling high forward surge capability up to 350mA.
Ideal for high voltage rectification, snubber circuits in camera flashes, and CRT TV grids.

Product Description

Vishay 1N4148WS-E3-08 is a reliable silicon junction switching diode designed for high-speed switching applications. It is rated for a maximum forward current of 150mA and a peak reverse voltage of 75V, making it suitable for various electronic circuits requiring rapid switching and low losses.

This diode features a glass-passivated junction and a superectifier structure that ensures high reliability and efficiency. The device exhibits a low forward voltage of up to 1.2V and a leakage current typically less than 0.2 μA, contributing to energy-efficient operation.

The compact SOD-323 surface-mount package measures just 1.95mm in length and 1.5mm in width with a height of 1.05mm, allowing for dense mounting in modern electronic assemblies. Matte tin-plated leads ensure excellent solderability in line with J-STD-002 standards.

Designed for operating temperatures from -55°C to 150°C, the diode withstands harsh industrial and commercial environments. It supports a maximum power dissipation of 200mW and a high forward surge current capability of 350mA, enabling it to handle transient conditions effectively.

Typical applications include high voltage rectification in G2 grid CRT and TV circuits, snubber circuits for camera flashes, and other fast switching use cases in electronic equipment. The diode meets RoHS compliance and commercial grade standards, ensuring both environmental safety and consistent performance.

Glass-passivated and cavity-free junction construction. Fast switching speed with peak reverse recovery time of 4ns. Robust mechanical design for long-term operation. Color band marking for cathode identification. Surface mount design for compact assemblies.

For electrical, laboratory, and industrial electronics applications, Vishay's 1N4148WS-E3-08 diode provides dependable and efficient performance optimized for modern device designs. Discover more products in our semiconductor category to match your project needs.
