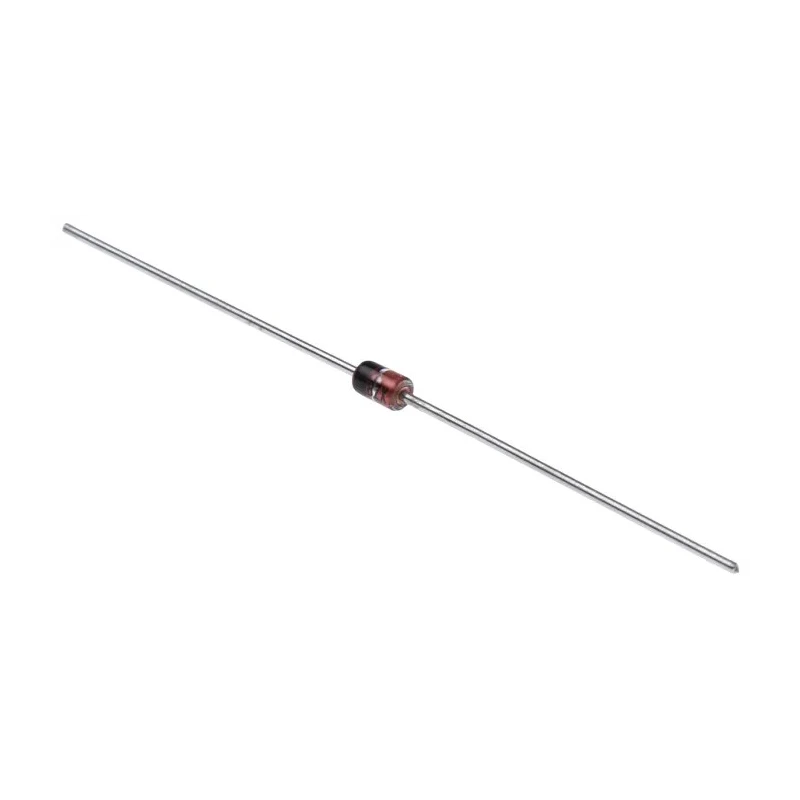

Vishay 18 V Zener Diode Single 1.3 W 6 % Tolerance Through Hole 2-Pin DO-41 BZX85C18-TAP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C18-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7834P Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: BZX85C18-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 15mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 18V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 20Ω |
Key Features
- The diode uses a through-hole mount in a 2-pin DO-41 package.
- Rated test current for the device is 15 mA.
- Maximum Zener impedance is 20 ohms ensuring effective voltage regulation.
- Maximum reverse leakage current is 500 nA, contributing to low leakage.
- Operational temperature range is from -55°C to 175°C for reliability in extreme conditions.
- The diode is part of the BZX85 series and meets automotive standard AEC-Q101.
- Physical dimensions include height of 2.6 mm and length of 4.1 mm.
- This Zener diode is suitable for stabilizing and clipping circuits with high power rating needs.
Product Description
Vishay BZX85C18-TAP is a single silicon planar power Zener diode designed for voltage regulation and protection purposes in electronic circuits. It features a nominal Zener voltage of 18 V with a power dissipation capacity of 1.3 W, supporting continuous stable operation under various conditions.
The diode is housed in a DO-41 through-hole package with two pins, making it compatible with standard PCB mounting techniques for industrial and commercial electronic assemblies. It exhibits a Zener voltage tolerance of ±6 % and a typical voltage temperature coefficient of 0.09%/°C, ensuring precise voltage regulation in circuits.
With a maximum Zener impedance of 20 ohms and a maximum reverse leakage current of only 500 nA, the device offers excellent voltage stability and low leakage, making it ideal for use in stabilizing and clipping circuits, and other voltage regulation applications requiring reliable performance.
This product complies with automotive standard AEC-Q101, making it suitable for automotive and industrial applications requiring high reliability. The operating temperature range from -55°C to 175°C allows usage in harsh environmental conditions.
The compact size with a height of 2.6 mm and length of 4.1 mm enables integration in space-constrained designs. The diode belongs to Vishay’s BZX85 series of Zener diodes known for their robust build and performance.
The diode uses a through-hole mount in a 2-pin DO-41 package. Nominal Zener voltage is 18 V with ±6 % tolerance. Maximum power dissipation of 1.3 W enhances circuit protection. Operating temperature range spans from -55°C to 175°C.
Typical applications include voltage stabilization and clipping circuits. Meets automotive standard AEC-Q101 for high reliability. Compact dimensions suit various industrial electronic assemblies.
This Zener diode is widely used in electronic components, power management, automotive electronics, and industrial control circuits. It provides dependable voltage regulation, making it essential for maintaining circuit integrity in demanding environments.
Explore more Zener Diodes and discrete semiconductor solutions in the Electronics & Electricals category at EnvMart for your industrial and commercial electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 18 V.
It has a maximum power dissipation capacity of 1.3 W.
The operating temperature range spans from -55°C to 175°C.
The maximum Zener impedance is 20 ohms.
This model has a height of 2.6 mm and a length of 4.1 mm.
It is housed in a DO-41 through-hole package with two pins.
This Zener diode meets the automotive standard AEC-Q101.
The rated test current for the device is 15 mA.
It is suitable for stabilizing and clipping circuits, as well as other voltage regulation applications.
This diode has one element per chip.
It is a single diode configuration.
