| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C24-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7843Brand: VishayManufacturers Part No.: BZX85C24-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 25Ω |

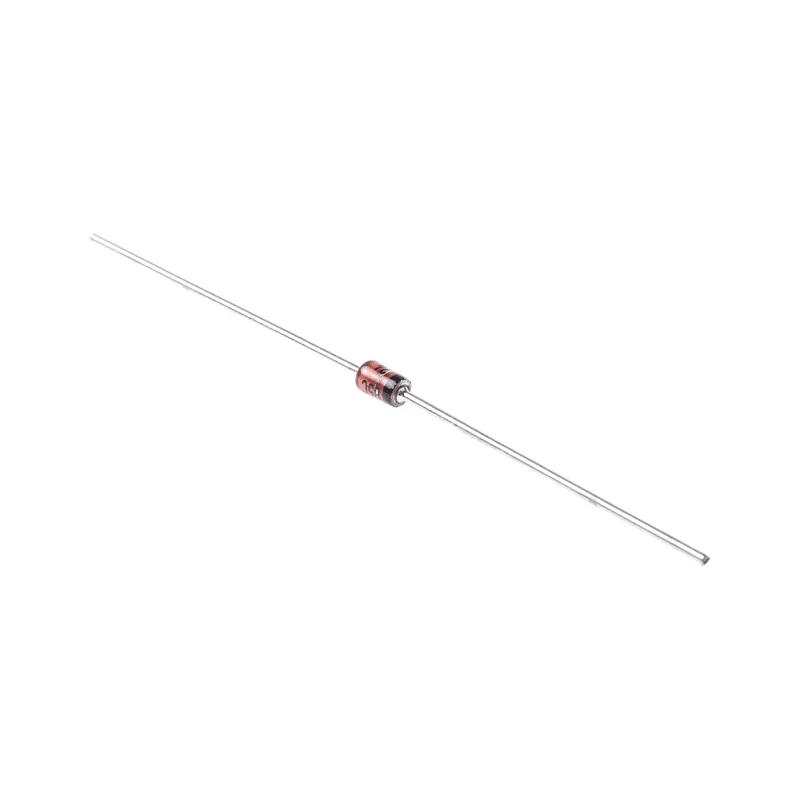

Vishay BZX85C24-TAP is a high-quality Zener Diode featuring a nominal Zener voltage of 24 volts and a maximum power dissipation of 1.3 watts. This single-element diode is packaged in a 2-pin DO-41 through-hole configuration, making it ideal for mounting on printed circuit boards in various electronic and industrial applications.
The diode ensures precise voltage regulation with a tolerance of ±6%, supported by a low Zener impedance of 25 Ω. It exhibits minimal leakage current, less than 500 nanoamperes, assuring efficient performance and low power drain in power-sensitive circuits.
Designed to operate reliably across a wide temperature range of -55°C to 175°C, this component is suitable for demanding environments including automotive and industrial electronics. It complies with the automotive standard AEC-Q101, indicating rigorous testing for harsh application use.
This Zener diode is commonly used in voltage stabilization, clipping, and switching circuits where a stable reference voltage is required. Its robust packaging and electrical characteristics enable secure and durable operation for power supplies, amplifiers, and other electronic components.
Designed for voltage regulation and stabilization in electronic circuits. Maximum power dissipation of 1.3 watts ensures reliable operation under load. Operating temperature range from -55°C to 175°C suitable for harsh environments.
Pin count of 2 and DO-41 package enable easy through-hole PCB mounting. Low maximum reverse leakage current of 500 nA for minimal power loss. Maximum Zener impedance of 25 Ω ensures stable voltage regulation. Test current of 10 mA for performance verification.
Conforms to automotive standard AEC-Q101 for reliability in automotive applications. Ideal for electronic manufacturing, prototype development, automotive circuits, and power supply regulation, this Vishay Zener Diode is a reliable component choice.
