| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C15-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7837Brand: VishayManufacturers Part No.: BZX85C15-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 15mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 15Ω |

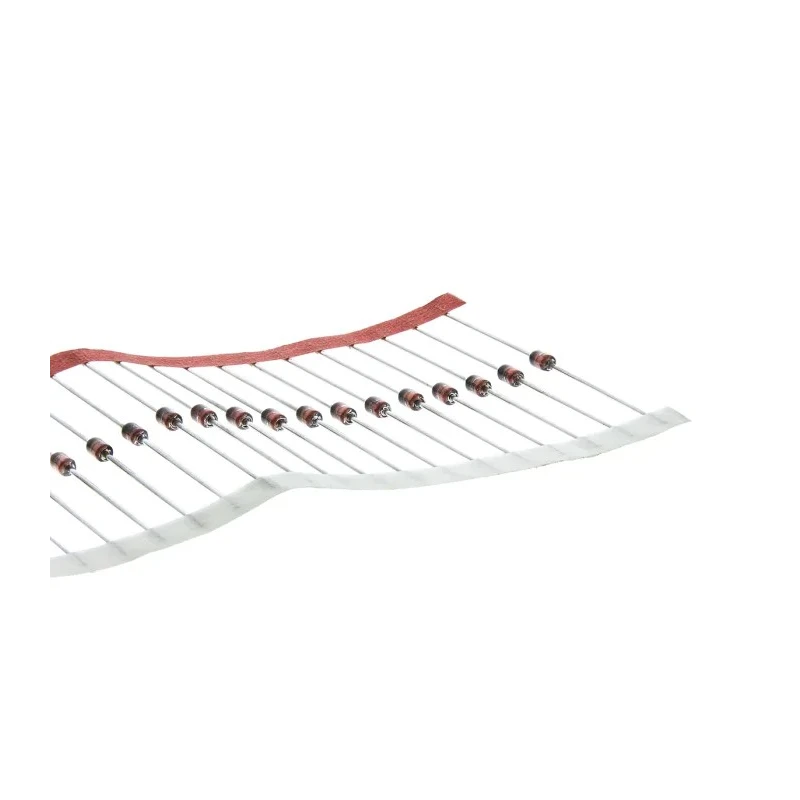

Vishay BZX85C15-TAP is a silicon planar power zener diode, designed for stable voltage regulation and clipping in industrial and electronic applications. This single diode features a nominal zener voltage of 15 volts and a maximum power rating of 1.3 watts, housed in a reliable DO-41 through-hole package measuring 4.1 mm in length and 2.6 mm in height.
Its low maximum reverse leakage current of 500 nA and maximum zener impedance of 15 ohms make it highly effective in stabilizing voltage across a circuit. This diode operates efficiently across a broad temperature range from -55°C to 175°C, suitable for demanding environments including automotive applications compliant with the AEC-Q101 standard.
The device supports a test current of 15 mA, ensuring consistent performance under standard testing procedures. The compact 2-pin configuration enables easy integration into through-hole circuit designs, enhancing production efficiency and reliability.
Nominal zener voltage of 15 volts for stable voltage regulation. Single diode configuration with 2-pin through-hole mounting. Maximum power dissipation of 1.3 W for high power applications. Compact DO-41 package with dimensions of 4.1 mm length and 2.6 mm height.
Operating temperature range from -55°C to 175°C providing durability in harsh conditions. Maximum reverse leakage current of 500 nA and zener impedance of 15 Ω for efficient performance. Test current rating of 15 mA for reliable testing consistency.
Conforms to AEC-Q101 automotive standards for high reliability.
This Vishay Zener diode is especially suitable for industrial electronic circuits requiring precise voltage clamping and stabilization, including use in power supply regulation and voltage referencing tasks in manufacturing, automotive electronics, and general industrial electrical equipment.
Explore additional Vishay semiconductor components and Zener Diodes for optimized circuit performance in the Electronics & Electricals category at EnvMart.
