Vishay 1.3 W 16 V Zener Diode Single Through Hole 2-Pin DO-41 BZX85C16-TAP

Free Delivery in India | Lowest Global Shipping Charges

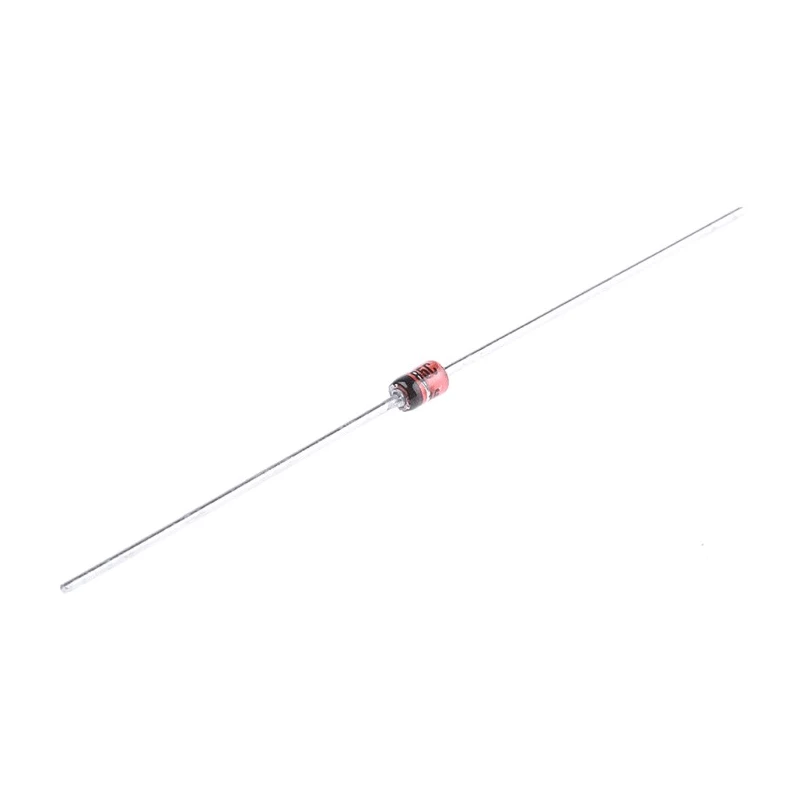

Vishay 1.3 W 16 V Zener Diode Single Through Hole 2-Pin DO-41 BZX85C16-TAP

Name: Vishay 1.3 W 16 V Zener Diode Single Through Hole 2-Pin DO-41 BZX85C16-TAP
Brand: Vishay
SKU: 352549
Price: 0.1 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	BZX85C16-TAP
Mount Type	Through Hole
Series	BZX85
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	699-7830PBrand: VishayManufacturers Part No.: BZX85C16-TAP
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	15mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	16V
Zener Type	Voltage Regulator
Maximum Zener Impedance	15Ω

Key Features

Silicon planar power Zener diode for voltage regulation applications.
Nominal Zener voltage of 16 V with a test current of 15 mA.
Maximum power dissipation of 1.3 W ensuring reliable performance.
Mount type is through hole with a DO-41 package and 2-pin count.
Operates within -55°C to 175°C temperature range for robust applications.
Maximum Zener impedance of 15 Ω and reverse leakage current of 500 nA.
Compliant with automotive standard AEC-Q101 ensuring automotive usability.

Product Description

Vishay BZX85C16-TAP is a single silicon planar power Zener diode designed for use in stabilising and clipping voltage regulator circuits. It offers a nominal Zener voltage of 16 V with an accuracy tolerance of ±6%, providing precise voltage regulation with high reliability.

This diode supports a maximum power dissipation of 1.3 W, making it suitable for high power rating applications in electronic and electrical systems. The device mounts via a through-hole method, housed in a compact DO-41 package with 2 pins, allowing easy integration into circuit boards.

Operating temperature ranges from -55°C to 175°C, enabling use in harsh industrial, automotive, and commercial environments. The maximum Zener impedance of 15 Ω and low reverse leakage current of 500 nA contribute to stable and efficient performance during voltage regulation.

Its dimensions, height 2.6 mm and length 4.1 mm, help maintain a compact footprint in densely packed assemblies. The diode conforms to the automotive AEC-Q101 standard, ensuring suitability for automotive power management applications.

Silicon planar Zener diode for voltage regulation. Nominal Zener voltage 16 V with ±6% tolerance. Power dissipation up to 1.3 W for robust performance. Through hole mount type and DO-41 package with 2 pins. Operating temperature from -55°C to 175°C.

Low impedance and reverse leakage current for stability. Compact size suitable for varied industrial applications. Meets automotive standard AEC-Q101 for reliable usage.

This Vishay Zener Diode is ideal for use in industrial electronics, automotive voltage regulation circuits, laboratory equipment, and power management systems. Its reliable characteristics enhance the stability and safety of electronic devices.
