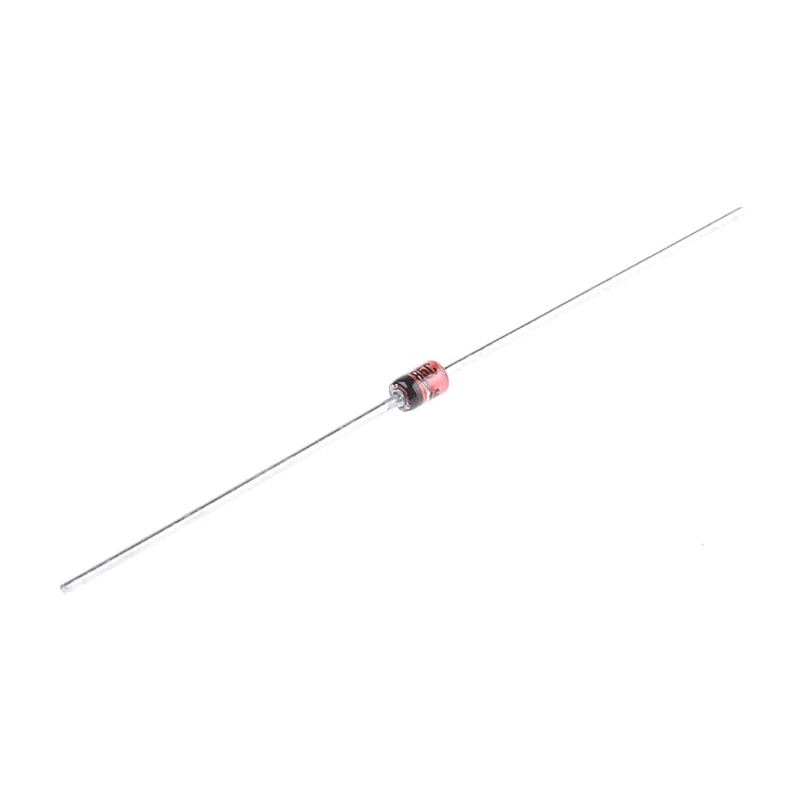

Vishay 16 V 1.3 W 6% Tolerance Through Hole 2-Pin DO-41 Zener Diode BZX85C16-TAP

Vishay BZX85C16-TAP is a robust silicon planar power Zener diode designed to provide voltage regulation and stabilization in various electronic circuits. It is part of the BZX85 series and features a nominal Zener voltage of 16 V with a tolerance of ±6%. The diode is optimized for applications requiring a power dissipation rating of up to 1.3 W, making it suitable for moderate power circuits.

This diode is configured as a single element with two pins and comes in a standard DO-41 through-hole package, facilitating easy mounting on PCBs and prototyping boards. It has a maximum test current of 15 mA and a low maximum reverse leakage current of 500 nA, which enhances its efficiency in regulation tasks.

The device operates reliably within a broad temperature range from -55°C to 175°C, complying with automotive industry standards AEC-Q101 for quality and durability under tough conditions. The maximum Zener impedance is 15 ohms, critical for maintaining stable voltage regulation under dynamic electrical loads.

Physically, the Zener diode measures 4.1 mm in length and 2.6 mm in height, making it compact for space-sensitive electronic designs. Its 2-pin configuration allows for straightforward integration into circuits requiring voltage clamping or reference voltage sources.

This Vishay zener diode is ideal for industrial, automotive, and consumer electronics, especially in voltage regulation, power supply stabilization, clipping, and waveform shaping applications. Its reliable performance and certified quality standards ensure dependable operation in electronic assemblies.

Choose this Vishay BZX85C16-TAP Zener Diode for precision voltage regulation tasks within power electronics and semiconductor applications, ensuring long-lasting and efficient circuit performance.

The diode features a nominal Zener voltage of 16 V with a tolerance of ±6%. It is configured as a single diode with 2 pins and packaged in a DO-41 through-hole type. This component supports a maximum power dissipation of 1.3 W for reliable performance.

Maximum Zener impedance is 15 ohms, and the test current is 15 mA. It operates effectively in a temperature range from -55°C to 175°C. Maximum reverse leakage current is 500 nA, ensuring low leakage during off state. This Zener Diode meets the automotive standard AEC-Q101.

Its physical dimensions include a length of 4.1 mm and a height of 2.6 mm. Browse EnvMart’s Electronics & Electricals category for more semiconductor solutions from leading brands like Vishay.
