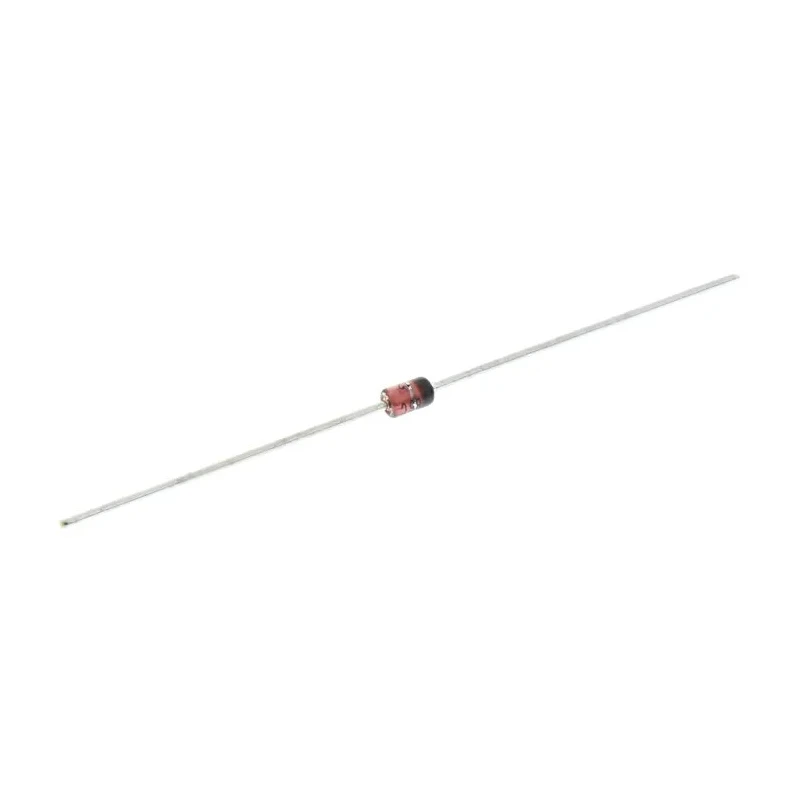

Vishay 12 V Zener Diode, Single 1.3 W 5% Tolerance Through Hole 2-Pin DO-41 BZX85C12-TAP

Free Delivery in India | Lowest Global Shipping Charges

Vishay 12 V Zener Diode, Single 1.3 W 5% Tolerance Through Hole 2-Pin DO-41 BZX85C12-TAP

Name: Vishay 12 V Zener Diode, Single 1.3 W 5% Tolerance Through Hole 2-Pin DO-41 BZX85C12-TAP
Brand: Vishay
SKU: 352547
Price: 0.1 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	BZX85C12-TAP
Mount Type	Through Hole
Series	BZX85
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	699-7824Brand: VishayManufacturers Part No.: BZX85C12-TAP
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	12V
Zener Type	Voltage Regulator
Maximum Zener Impedance	9Ω

Key Features

Nominal Zener voltage of 12 V with ±5% tolerance ensures precise voltage regulation.
Maximum power dissipation rating of 1.3 watts for reliable operation under load.
Low maximum reverse leakage current of 500 nA enhances efficiency.
Designed for operation in temperatures ranging from -55°C to 175°C for versatile use.
Constructed in a DO-41 through hole package allowing easy integration in circuits.
Test current specified at 20 mA for stable voltage performance.
Low maximum Zener impedance of 9 ohms supports rapid response to voltage changes.
Meet automotive standard AEC-Q101, suitable for automotive and industrial applications.

Product Description

Vishay BZX85C12-TAP Zener Diode is a single silicon planar power diode designed for voltage regulation and stabilizing applications. Rated at a nominal Zener voltage of 12 V and maximum power dissipation of 1.3 W, this component ensures precision voltage regulation with a tolerance of 5% in electronics circuits.

The diode is supplied in a standard through hole 2-pin DO-41 package, allowing straightforward mounting and integration into circuit boards. It supports a test current of 20 mA and features a low maximum reverse leakage current of 500 nA, which improves circuit efficiency and reduces leakage losses.

This diode operates reliably across a wide temperature range from -55°C to 175°C, making it suitable for use in harsh industrial and automotive environments. Its low maximum Zener impedance of 9 ohms offers rapid voltage response and stable regulation.

Designed to meet automotive industry standard AEC-Q101, the BZX85C12-TAP diode is well suited for industrial, automotive, manufacturing, and electronic device applications where precise voltage control is critical.

The robust silicon planar construction guarantees durability, while the compact DO-41 package with dimensions 4.1 mm length and 2.6 mm height facilitates easy installation in various electronic assemblies.

Nominal Zener voltage of 12 V with ±5% tolerance. Maximum power dissipation of 1.3 W. Maximum reverse leakage current of 500 nA. Operating temperature from -55°C to 175°C. Through hole DO-41 package type, 2-pin configuration.

Test current of 20 mA for voltage stability. Low maximum Zener impedance of 9 Ω. Compliant with AEC-Q101 automotive standard. This Vishay Zener Diode is ideal for voltage regulation and clipping circuits in industrial, automotive, laboratory, and manufacturing electronic systems.
