| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C18-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7795PBrand: VishayManufacturers Part No.: BZX55C18-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 18V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 170Ω |

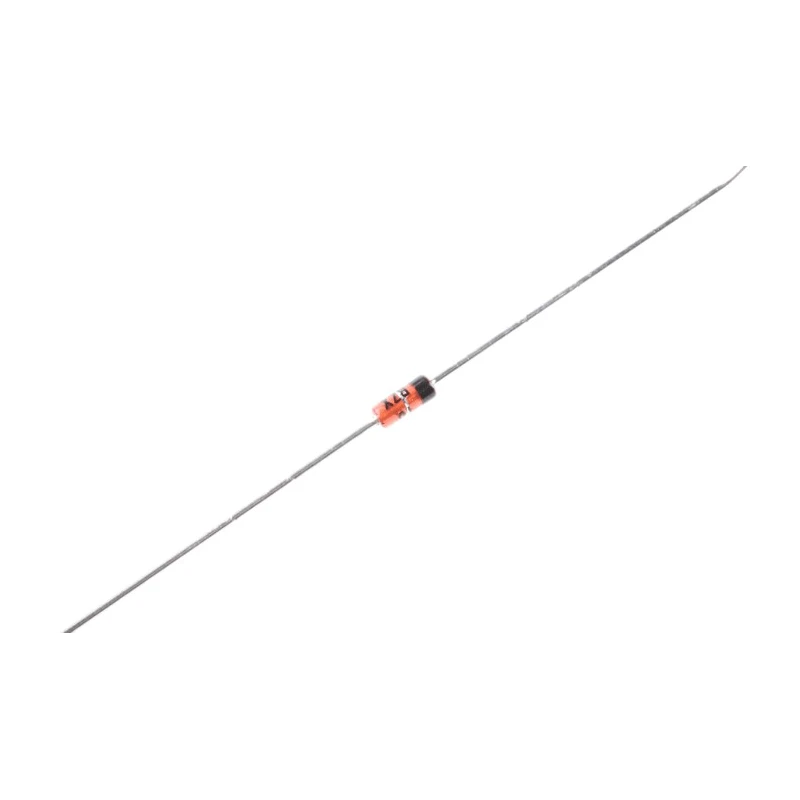

Vishay BZX55C18-TAP is a single element Zener Diode designed for voltage regulation applications, featuring a nominal Zener voltage of 18 V and a power dissipation rating of 500 mW. It is housed in a Through Hole SOD-27 package with 2 pins, allowing easy integration in electronic circuits that require stable voltage references.
This diode supports a test current of 5 mA and maintains a maximum Zener impedance of 170 ohms, delivering precise voltage regulation. Its operation remains reliable over a broad temperature range from -65°C to 175°C, making it suitable for automotive and industrial electronics requiring durability and thermal stability.
The product adheres to RoHS compliance and is qualified to the AEC-Q101 automotive standard, ensuring high reliability and environmentally conscious manufacturing practices. The compact size with a height of 1.7 mm and length of 3.9 mm makes it ideal for space-constrained circuit designs such as power supplies, voltage clamps, and protection circuits.
Nominal Zener voltage: 18 V with ±6% tolerance. Power dissipation: 500 mW rating for dependable energy handling. Through Hole mount type with durable SOD-27 package. Test current of 5 mA ensures accurate voltage regulation.
Wide operating temperature range (-65°C to 175°C) compatible with challenging environments. Low reverse leakage current enhances overall circuit efficiency. AEC-Q101 qualified for automotive-grade performance. RoHS compliant for environmental safety.
Compact physical dimensions suitable for modern electronic assemblies.
This Vishay Zener Diode is ideal for applications in industrial electronics, automotive systems, power supplies, and voltage regulation circuits that demand high precision and reliability.
