| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C10-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7789PBrand: VishayManufacturers Part No.: BZX55C10-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 70Ω |

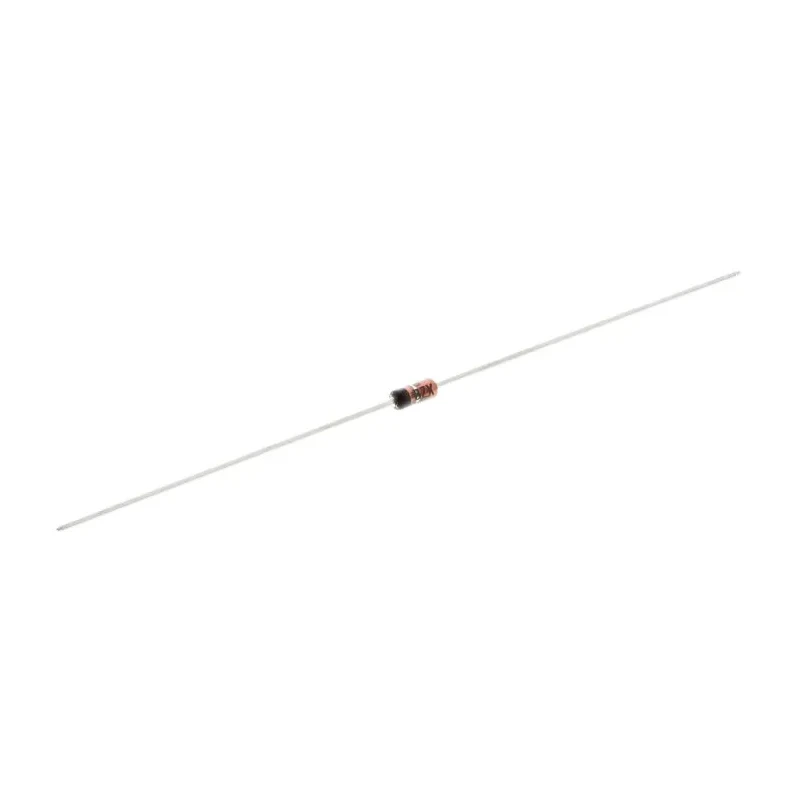

Vishay BZX55C10-TAP is a single-element 10 V zener diode designed for precise voltage regulation in various electronic and electrical applications. This component offers a nominal zener voltage of 10 V with a 6% tolerance, making it ideal for maintaining voltage stability in small signal circuits.
The diode features a through hole mount type in a 2-pin SOD-27 package, supporting easy and reliable PCB integration. Its maximum power dissipation of 500 mW enables it to handle moderate power loads while maintaining low noise and high stability characteristics.
Operating temperature ranges from -65°C to 175°C demonstrate this diode's capability to function reliably under harsh industrial, automotive, and commercial environmental conditions. The low reverse leakage current of 2 μA and maximum zener impedance of 70 Ω highlight its efficient performance with minimal energy loss.
This diode is AEC-Q101 qualified, meeting automotive standards for quality and reliability, and it complies with RoHS regulations ensuring it is environmentally safe. The extremely compact dimensions of 1.7 mm in height and 3.9 mm in length allow for compact device designs.
Features 6% voltage tolerance ensuring precise voltage control. Through hole mount type with 2-pin SOD-27 package for reliable installation. Maximum power dissipation of 500 mW supports small signal applications. Wide temperature operating range from -65°C to 175°C for robust performance.
Low maximum reverse leakage current of 2 μA minimizes power loss. Test current at 5 mA ensures accurate voltage rating. Maximum Zener impedance of 70 Ω provides stable voltage regulation. AEC-Q101 qualification suitable for automotive use.
Compact diode dimensions: height 1.7 mm and length 3.9 mm. Complies with RoHS environmental standards.
This Zener Diode is suitable for industrial, automotive, and commercial electronics where voltage regulation and reliability are critical. It is ideal for power management and regulation circuits in HVAC controls, manufacturing equipment, and automotive electronic systems.
Explore Vishay products and other discrete semiconductors at EnvMart for comprehensive solutions in power and signal management.
