| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C10-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7789Brand: VishayManufacturers Part No.: BZX55C10-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 70Ω |

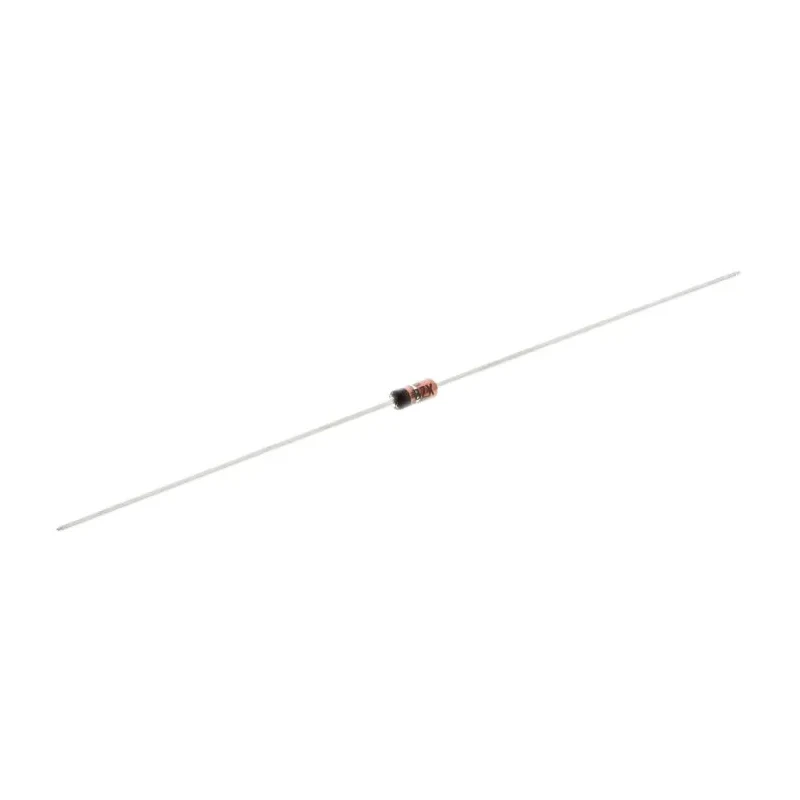

Vishay BZX55C10-TAP Zener Diode is a single-element voltage regulator diode with a nominal voltage of 10 V and a power dissipation of 500 mW. It is housed in a compact SOD-27 through-hole 2-pin package, specifically designed for stable voltage regulation and low noise applications.
The diode exhibits a low reverse leakage current of 2 μA and a maximum Zener impedance of 70 Ω, ensuring precision in voltage clamping and regulation. Its wide operating temperature range from -65°C to 175°C makes it suitable for industrial and automotive electronics where temperature stability is crucial.
This device is RoHS compliant and meets the stringent AEC-Q101 automotive qualification, highlighting its robustness and suitability for automotive semiconductor applications.
The small physical dimensions of 3.9 mm length and 1.7 mm height allow easy integration into compact electronic circuits and PCBs. Typical uses include voltage regulation, voltage reference, and protection circuits in industrial, automotive, and consumer electronics.
Key features of this Zener diode include a very sharp reverse characteristic, low noise, and high stability, making it ideal for sensitive electronic designs requiring reliable voltage regulation in harsh environments.
This diode features a nominal Zener voltage of 10 volts with a tolerance of ±6%. It has a maximum power dissipation rating of 500 mW suitable for small signal voltage regulation. The device comes in a small SOD-27 through-hole package with two pins.
Operating temperature range spans from -65°C to 175°C ensuring versatile application use. The diode exhibits a maximum reverse leakage current of 2 microamperes for efficient operation. Its maximum Zener impedance is 70 ohms providing very sharp reverse characteristic performance.
The product is RoHS compliant and AEC-Q101 qualified meeting automotive industry standards.
