| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C12-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7783PBrand: VishayManufacturers Part No.: BZX55C12-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 90Ω |

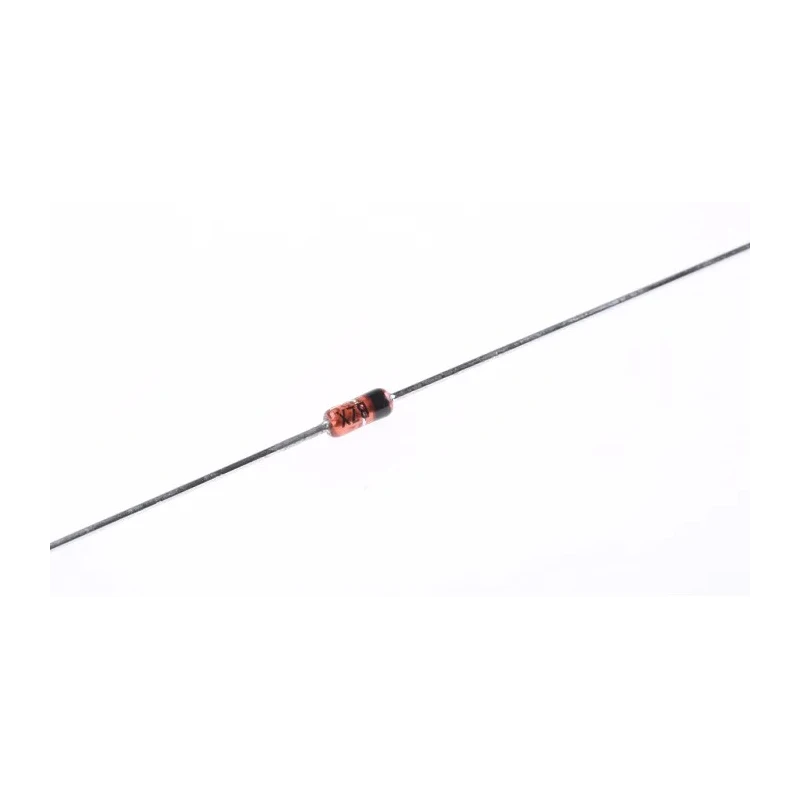

Vishay BZX55C12-TAP is a single configuration Zener diode designed for voltage regulation in electronic circuits. It offers a nominal Zener voltage of 12 V and a maximum power dissipation of 500 mW, making it suitable for low power regulation tasks. The component is housed in a 2-pin Through Hole SOD-27 package, facilitating easy mounting on printed circuit boards.
This Zener diode features a low reverse leakage current of 2μA and operates reliably within a wide temperature range from -65°C to 175°C, ensuring performance stability in diverse industrial, automotive, and electronic applications. It complies with the RoHS directive, emphasizing its environmental safety.
Its maximum Zener impedance of 90 Ω at a test current of 5 mA guarantees a precise voltage regulation characteristic, making it ideal for sensitive electronic power circuits. The device is AEC-Q101 qualified which confirms its robustness and suitability for automotive industry standards.
The BZX55 series is known for its sharp reverse characteristic, low noise, and high stability. This component fits well within power supply circuits, voltage regulators, and protective circuits in industrial, laboratory, and manufacturing environments.
This Zener diode operates as a voltage regulator with a nominal Zener voltage of 12 V. It features a pin count of 2 and is designed for through hole mounting. The maximum power dissipation is rated at 500 mW, ensuring stable operation.
The device is AEC-Q101 qualified, suitable for automotive applications. It has a Zener voltage tolerance of ±5% and a low reverse leakage current of 2μA. Operating temperature ranges from -65°C to 175°C, supporting a wide temperature range.
Package dimensions include a length of 3.9 mm and height of 1.7 mm. The maximum Zener impedance is rated at 90 Ω for specified test current of 5 mA. The diode is RoHS compliant, meeting environmental standards.
This Vishay BZX55C12-TAP Zener Diode provides a reliable and compact solution for voltage regulation within electronic circuits, suitable across industrial, automotive, laboratory, and electronic device manufacturing sectors. For more products like this, explore the Electronics & Electricals section on EnvMart.
