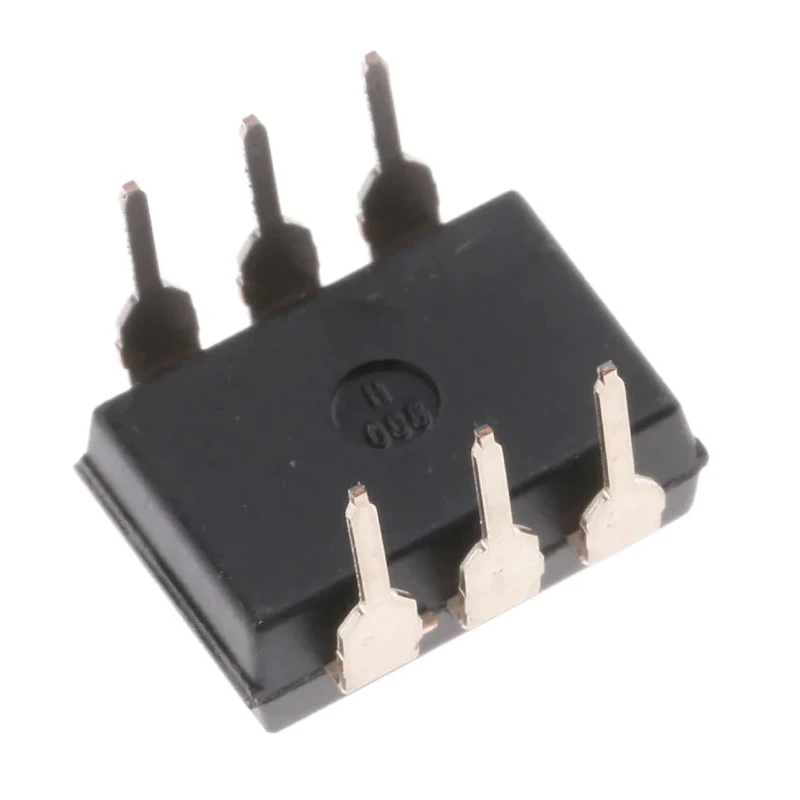

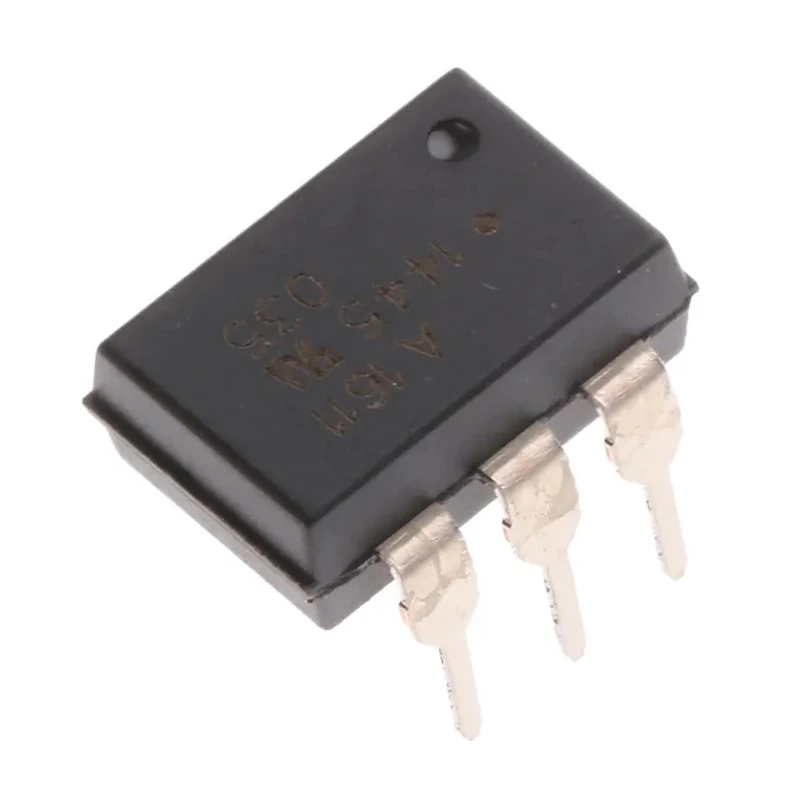

Broadcom ASSR-1611 Series Solid State Relay 2.5 A Load Current 60 V Load Voltage PCB Mount DIP-6 ASSR-1611-001E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.7mm |
| Length | 9.9mm |
| Model | ASSR-1611-001E |
| Width | 6.6mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | ASSR-1611 |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPST |
| Package Type | DIP-6 |
| Capacitance | 0.8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 6-Pin |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 2.5A |
| Standards/Approvals | CSA, IEC, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 693-6895PBrand: BroadcomManufacturers Part No.: ASSR-1611-001E |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 1.7V |
| Off State Leakage Current | 5μA |
| On State Resistance | 250Ω |
Key Features
- Designed for AC/DC switching applications with SPST contact configuration.
- DIP-6 package type with 6-pin terminal for easy PCB mounting.
- Operates reliably in temperature range from -40°C to +85°C.
- Low on-state resistance of 250Ω ensures efficient operation.
- Off state leakage current of 5μA minimizes power loss.
- Features photomos technology with infrared LED and MOSFET output for fast response.
- Complies with CSA, IEC standards and RoHS for quality and safety.
- Ideal for industrial automation, control systems, and electronic instrumentation.
Product Description
Broadcom ASSR-1611-001E Solid State Relay is a compact, high-performance photo MOSFET relay designed for robust electronic switching. It features a maximum load current of 2.5 A and can handle load voltages up to 60 V, making it suitable for a wide range of industrial and commercial PCB-mounted switching applications.
This relay employs a single pole single throw (SPST) contact configuration with MOSFET output type, ensuring fast switching and minimal contact wear. The DIP-6 package with 6-pin terminals allows straightforward integration onto printed circuit boards. Operating across temperatures from -40°C to +85°C, the relay ensures dependable performance in harsh environments.
With a low on-state resistance of 250Ω and off-state leakage current of only 5μA, it minimizes power loss and heat generation during operation. The capacitance is rated at 0.8pF, further supporting efficient signal transmission.
The ASSR Series relays from Broadcom utilize an infrared LED to activate the MOSFET output through a photovoltaic diode array and internal driver circuitry. This design ensures galvanic isolation, protecting control circuits from high voltages and enhancing safety.
Certified to meet CSA, IEC, and RoHS standards, this relay offers a reliable and compliant choice for electronic control in industrial automation, manufacturing machinery, and instrumentation panels.
Designed for AC/DC switching with SPST configuration. 6-Pin DIP-6 package for easy PCB mounting. Wide operating temperature range from -40°C to +85°C. Low on-state resistance and minimal leakage current. Compact dimensions suitable for space-constrained applications.
Photomos technology offers fast and safe switching suitable for industrial equipment. Compliance with international standards ensures quality and reliability. Ideal for use in industrial automation, control gear, and electronic circuits.
Explore our Solid State Relay selection at EnvMart for reliable, high-quality components designed to enhance operational efficiency and safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 2.5 A.
It can handle load voltages up to 60 V and down to -60 V.
This relay features a single pole single throw (SPST) contact configuration.
The operating temperature range is from -40°C to +85°C.
The on-state resistance is rated at 250Ω.
The off-state leakage current is 5μA, which minimizes power loss.
The capacitance is rated at 0.8pF.
It is designed for PCB mounting with a DIP-6 package type.
This model complies with CSA, IEC standards and is RoHS certified.
The minimum control voltage is 1.1V and the maximum control voltage is 1.7V.
It uses a MOSFET output type for switching.
This relay is suitable for industrial automation, control systems, and electronic instrumentation.
