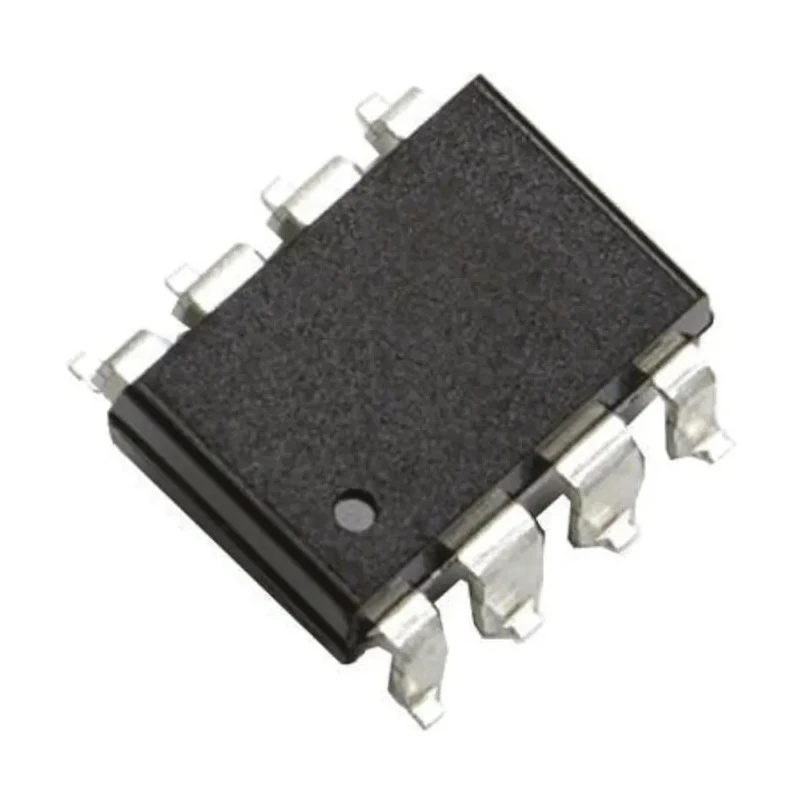

Broadcom ASSR Series Solid State Relay 0.6 A Load 60 V Load PCB Mount MOSFET Output ASSR-1420-302E

Broadcom ASSR-1420-302E is a precision solid state relay designed for efficient switching applications with a maximum load current of 0.6 A and a load voltage rating of 60 V. The relay’s compact DIP-8 package makes it suitable for printed circuit board (PCB) mounting in electronic and industrial automation systems.

This solid state relay employs advanced Photo MOSFET technology, combining an infrared LED input with a high-speed photovoltaic diode array and driver circuitry to operate two discrete high voltage MOSFETs. This design offers excellent switching characteristics and enhances reliability in AC/DC switching environments.

The device features a low on-state resistance of 0.2 ohms to minimize conduction losses and provides a single-pole single-throw (SPST) contact configuration, ideal for various control applications. It supports control voltages from 1.1 V to 1.7 V and exhibits minimal off-state leakage current of 0.5 nA, contributing to energy-efficient operation.

Operating temperature ranges from -40°C to +85°C, Broadcom ASSR-1420-302E ensures robust performance in harsh industrial conditions. The relay complies with recognized standards such as RoHS, CSA, IEC, and UL, ensuring safety and environmental compliance.

This relay is commonly used in industrial automation, signal conditioning, electronic instrumentation, and control systems requiring reliable and fast switching components. Its compact design and high-performance MOSFET output provide an ideal solution for modern electronic control applications.

Compact DIP-8 package for PCB mounting with secure and stable installation. Broad operating temperature range ensures suitability for diverse industrial environments. MOSFET output with low on-state resistance for efficient power handling.

Minimal off-state leakage current reduces energy consumption during standby. Meets major international standards including RoHS, CSA, IEC, and UL for quality assurance. Single-pole single-throw configuration offers versatile switching options.

Control voltage requirements allow compatibility with a wide range of control logic voltages. Explore the Broadcom brand selection within our Solid State Relays category for advanced electronic components suited to industrial and automation needs on EnvMart.
