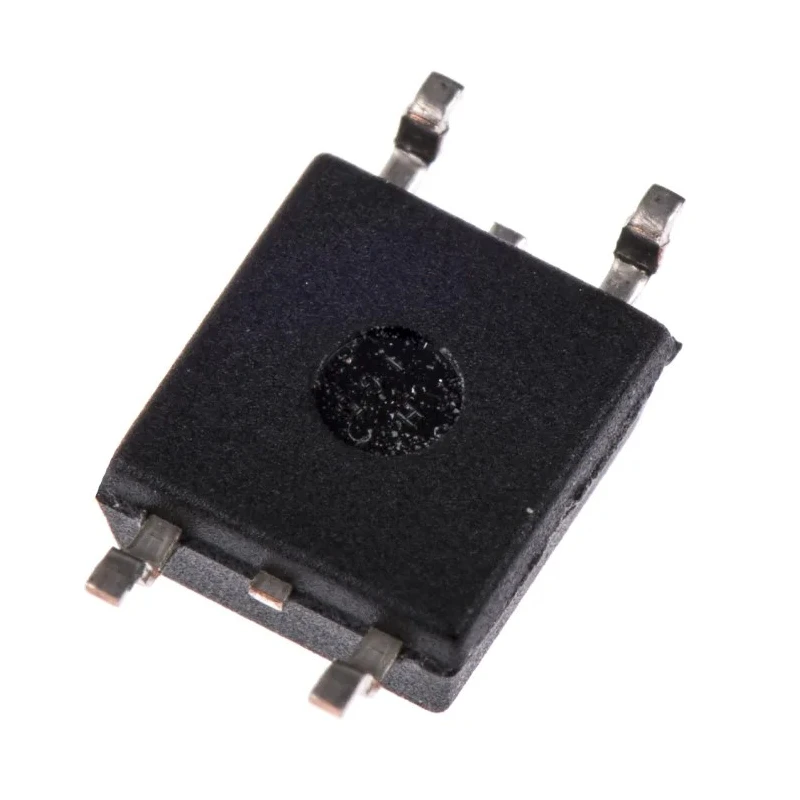

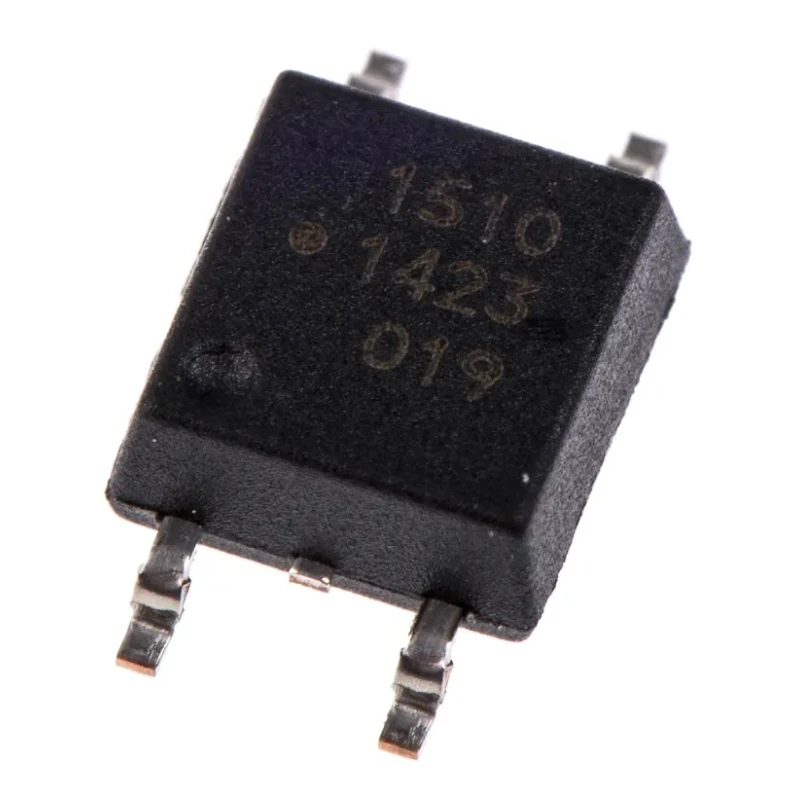

Broadcom ASSR Series Solid State Relay 1 A Load PCB Mount 60 V Load 1.7V Control ASSR-1510-003E

Broadcom ASSR-1510-003E Solid State Relay is a precise and reliable photo MOSFET relay designed for industrial and automation applications requiring efficient AC load switching. The device supports a maximum load current of 1 A and a maximum load voltage of 60 V, making it ideal for printed circuit board (PCB) mounting in compact electronic assemblies.

This solid state relay incorporates an infrared LED input and a high-speed photovoltaic diode array with integrated driver circuitry to switch two discrete high voltage MOSFETs. The minimum control voltage of 1.1 V and a maximum of 1.7 V ensures seamless interfacing with low-voltage control circuits.

Featuring a gull wing terminal design and SPST contact configuration, the device guarantees easy soldering and reliable switching performance. Its on-state resistance of 0.5 ohms minimizes conduction losses and heat generation. Broadcom’s relay maintains stable operation between temperatures of -40°C and 85°C, suitable for demanding industrial, automation, and instrumentation environments.

The compact SOP-4 package (4.3 mm length × 4.4 mm width × 2 mm height) supports space-saving PCB layouts. Off-state leakage current is remarkably low at 100 nA, ensuring minimal power consumption when switched off. MOSFET output technology contributes to fast switching speeds and increased reliability.

The product meets UL, RoHS, and CSA standards, confirming its quality and environmental compliance. This solid state relay is designed for applications including industrial automation systems, signal conditioning, and electrical control circuits where robust and silent switching is required.

The relay supports a minimum control voltage of 1.1 V and a maximum control voltage of 1.7 V. It features a gull wing terminal type with SPST contact configuration. The device has a low 0.5 ohm on-state resistance for efficient conduction.

Operating temperature ranges from -40°C to 85°C, suitable for varied environments. It comes in a compact SOP-4 package with dimensions 4.3 mm length, 4.4 mm width, and 2 mm height. The off-state leakage current is low at 100 nA ensuring minimal power loss.

The output stage uses MOSFET technology for fast and reliable switching. Certified to UL, RoHS, and CSA standards ensuring quality and compliance.
