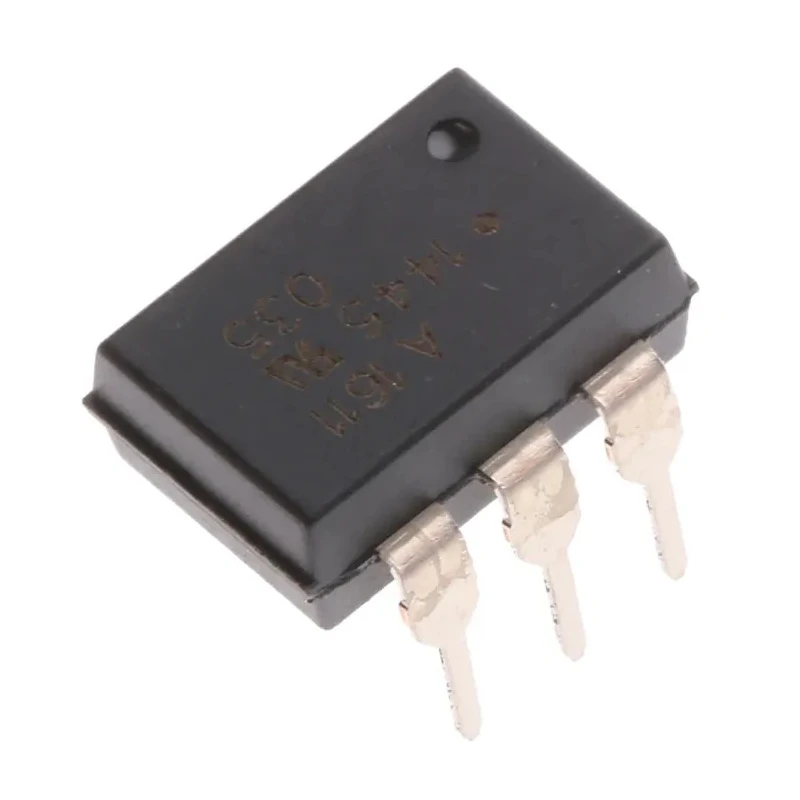

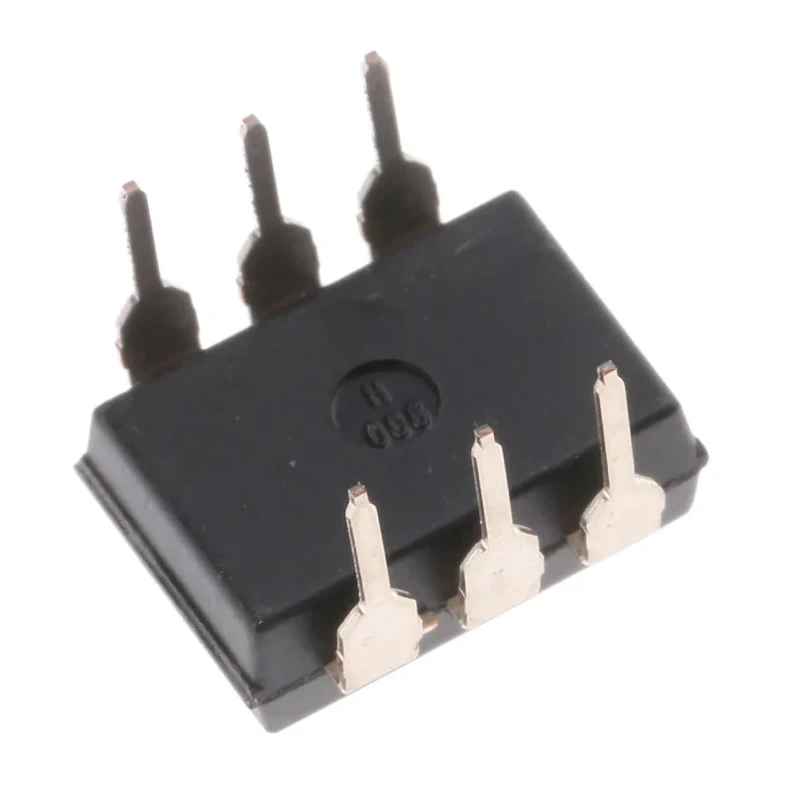

Broadcom Solid State Relay 2.5A Load PCB Mount 60V Load 1.7V Control ASSR-1611-001E

Broadcom ASSR-1611-001E Solid State Relay is a high-performance photo MOSFET type relay engineered for reliable and efficient switching of loads up to 2.5 amps.

Designed for PCB mounting, this DIP-6 package relay supports switching of both AC and DC loads with a maximum load voltage rating of 60 volts and a minimum load voltage of -60 volts.

The relay operates with a low control voltage between 1.1V minimum and 1.7V maximum, suitable for various control circuits. Featuring a 6-pin terminal type and a single-pole single-throw (SPST) contact configuration, it offers simple integration for industrial, electronic, and automation applications.

Its compact footprint with dimensions of 9.9mm length, 6.6mm width, and 3.7mm height allows use in space-constrained designs. The device exhibits low on-state resistance of 250 ohms and minimal off-state leakage current of 5 microamps, enabling energy-efficient operation.

Broadcom ensures component quality with compliance to CSA, IEC, and RoHS standards, making this relay suitable for professional industrial, laboratory, manufacturing, and control gear environments.

Supports maximum load current of 2.5A and maximum load voltage of 60V. Operates with control voltages between 1.1V and 1.7V. Compact DIP-6 package with 6-pin terminals for PCB mounting. SPST contact configuration allows single circuit switching.

Wide operating temperature range from -40°C to +85°C. Low on-state resistance and off-state leakage current for efficient switching. Certified to CSA, IEC, and RoHS standards. This relay is ideal for use in solid-state relay applications in industrial automation, electronic instrumentation, HVAC control, and manufacturing systems.
