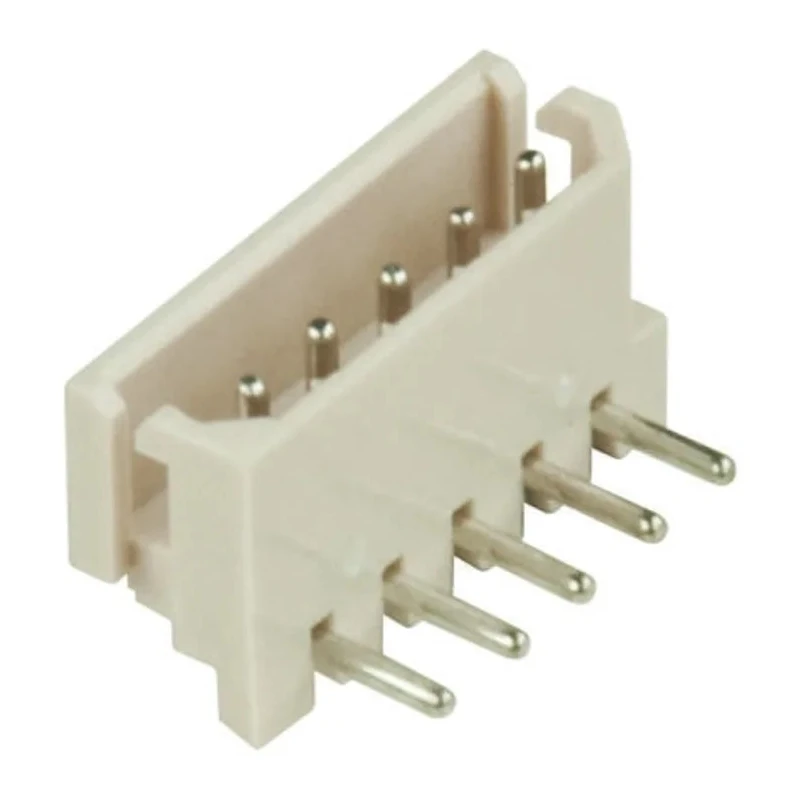

Molex SPOX Series Right Angle Through Hole Shrouded 10 Contact PCB Header 2.5 mm Pitch 22-05-7105

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Right Angle Through Hole Shrouded 10 Contact PCB Header 2.5 mm Pitch 22-05-7105

Name: Molex SPOX Series Right Angle Through Hole Shrouded 10 Contact PCB Header 2.5 mm Pitch 22-05-7105
Brand: Molex
SKU: 350601
Price: 0.48 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Current rating of 3 amps suitable for reliable electrical connections.
Housing made from durable nylon material ensuring long service life.
Single row configuration with 10 male contacts for effective board connections.
Right angle orientation with solder termination type for through hole mounting.
Brass contact material with tin plating ensures good conductivity and corrosion resistance.
Operating temperature range from -40°C to 105°C suitable for diverse environments.
Polarization and friction lock features prevent mismating and secure the connection.
Low profile shrouded design for compact circuit board assembly.

Product Description

Molex 22-05-7105 is a right angle through hole PCB header from the SPOX series, designed with 10 contacts and a 2.5 mm pitch. It features a shrouded, low profile design that enhances reliability and connection security in Printed Circuit Board assemblies.

The connector housing is constructed from high-quality nylon, providing durability and stability. The contacts are made of brass with tin plating to ensure excellent conductivity and corrosion resistance. Its single row configuration is designed for right angle mounting and solder-type termination compatible with through hole PCB mounting methods.

Operating reliably across a wide temperature range from -40°C to 105°C, this PCB header is rated for 3 amps current and 250 volts, making it suitable for various demanding electronic applications. The design includes polarization and friction lock features to prevent mismating and maintain a secure electrical connection during operation.

This header is part of the Molex SPOX 5267 and 5268 series connectors, compatible with the SPOX 5264 crimp housings for wire-to-board applications. It is widely used across industries including automotive, consumer electronics, data communications, industrial controls, medical devices, networking, and telecommunications.

Current rating of 3 amps for dependable electrical performance. Durable nylon housing supports long-term reliability. Shrouded design prevents accidental mismating of contacts. Single row, 10 contact configuration with 2.5 mm pitch for compact PCB assembly.

Solder termination type designed for through hole mounting on PCBs. Brass contacts with tin plating provide excellent conductivity and corrosion resistance. Wide operating temperature range from -40°C to 105°C for harsh environments.

Voltage rating of 250 volts suitable for various electronic circuits. Polarization and friction lock ensure secure mechanical and electrical connection. Ideal for automotive, industrial, medical, networking, and telecommunication applications.
