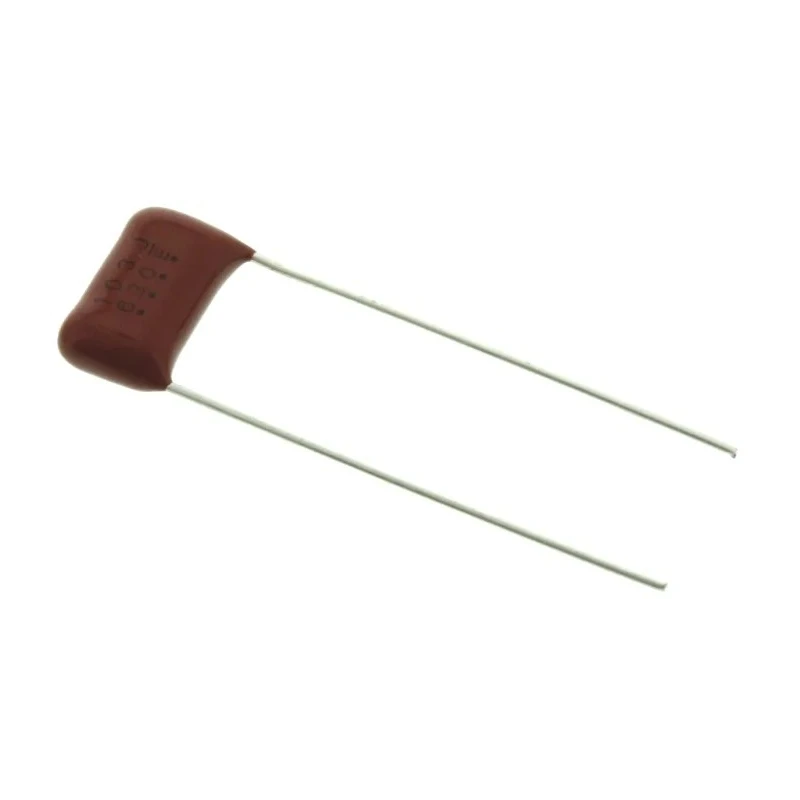

Panasonic ECQE(F) Film Capacitor 10 nF 630V AC 630 V DC Through Hole ECQE6103JF

Panasonic ECQE6103JF Film Capacitor is a high-quality polyester film capacitor designed for general purpose use in electronic circuits requiring stable capacitance and high reliability. It is rated for 10 nF capacitance with AC and DC voltage ratings of 630 volts each, making it suitable for a wide range of electronic applications including automotive electronics in compliance with AEC-Q200 standards.

The capacitor features a metallised polyester film construction with a flame retardant epoxy resin coating which provides superior safety and longevity. Its self-healing and non-inductive design enhances operational stability and electrical performance. The through-hole mount type with a 10 mm lead pitch allows for secure and easy board integration.

Operating temperature for this capacitor is rated up to 105°C, enabling it to maintain reliable performance under elevated temperature conditions. The compact form factor measures 12 mm in length, 4.5 mm in width, and 7.5 mm in height, with a lead diameter of 0.6 mm to support robust mechanical connections.

Metallised polyester film construction with self-healing properties. Flame retardant epoxy resin coating for enhanced safety. Rated 630V AC and 630V DC voltage for versatile use. Compliance with AEC-Q200 automotive standard for quality assurance.

Through-hole mount, 10 mm lead pitch for secure PCB attachment. Operating temperature up to 105°C suitable for diverse environments. Compact size facilitating integration in varied designs. Certified to CSA E60384-14, EN 60384-14, and UL 60384-14 electrical standards.

This capacitor is ideal for applications in industrial, automotive, consumer electronics, and other general electrical component assemblies requiring film capacitors with dependable performance.
