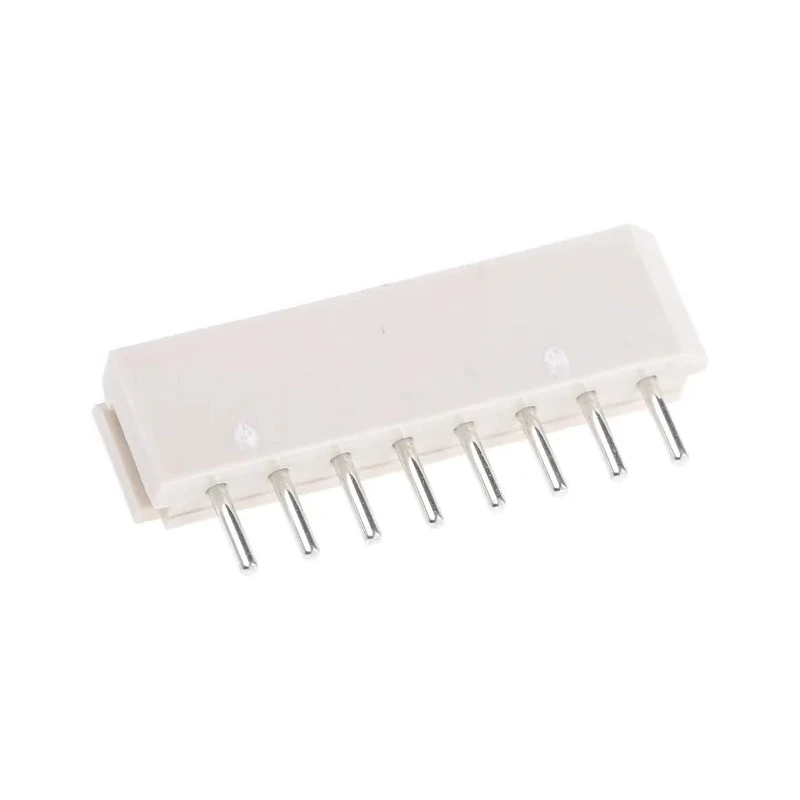

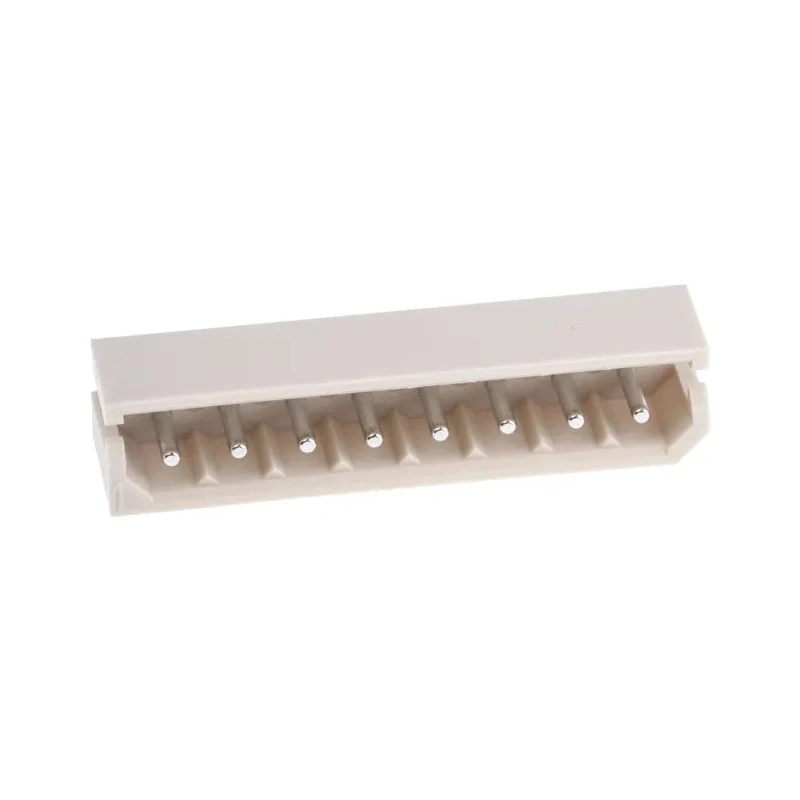

Molex SPOX Series Shrouded Straight Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Brass Tin-Plated 22-03-5085
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a 2.5 mm pitch and single-row configuration for compact PCB mounting.
- Constructed with brass contacts plated with tin to ensure reliable electrical conductivity.
- Shrouded design prevents mismating and offers polarization for secure connections.
- Supports up to 3A current and 250V voltage for versatile industrial applications.
- Tail pins are 3.5 mm long and use solder termination for robust PCB attachment.
- Suitable for automotive, industrial, medical, networking, and telecommunications uses.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Manufactured with nylon housing material providing mechanical strength and insulation.
Product Description
The Molex 22-03-5085 is part of the SPOX Series offering a high-quality shrouded straight through hole PCB header designed for wire-to-board applications. It features 8 brass contacts plated with tin, arranged in a single row at a 2.5 mm pitch, ensuring compact and space-efficient PCB mounting. The shrouded housing enhances reliability by preventing mismating through polarization and securing connections via a friction lock mechanism.
This PCB header supports a current of up to 3 amperes and operational voltage of 250 volts, making it suitable for a wide range of industrial, automotive, consumer electronics, data communications, medical devices, networking, and telecommunications applications. The contacts have a 3.5 mm tail pin length with a solder termination type to provide secure and durable mounting on the printed circuit board.
The nylon material of the housing delivers excellent mechanical strength and electrical insulation, while the operating temperature range of -40°C to 105°C ensures performance stability under varying environmental conditions. The product is compliant with industry needs but does not carry specific certification markings.
Compact 2.5 mm pitch for efficient PCB space usage. Brass contacts with tin plating for effective conductivity and corrosion resistance. Shrouded and polarized design to prevent mismating and ensure reliable connections.
Solder termination tail pins for strong PCB attachment. Wide operating temperature range suitable for numerous industrial environments. Wire-to-board connector system compatible with the SPOX series crimp housings. Ideal choice for automotive, medical, networking, and telecom applications.
Choose the Molex SPOX Series 22-03-5085 for dependable, industry-standard PCB Header solutions with a secure mating feature and robust material construction. Explore more industrial connectors and components through the EnvMart platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 3A and a voltage rating of 250V, making it suitable for various industrial applications.
It features a 2.5 mm pitch and a single-row configuration, allowing for compact PCB mounting.
The contacts are made of brass and are plated with tin to ensure reliable electrical conductivity and corrosion resistance.
The tail pins have a length of 3.5 mm, designed for solder termination to provide a secure attachment to the PCB.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
Yes, the shrouded design of this header prevents mismating and offers polarization for secure connections.
This model uses a through hole mounting type, which is common for PCB applications.
The housing is made of nylon, providing mechanical strength and electrical insulation.
It has a total of 8 contacts, arranged in a single row.
This PCB header is suitable for automotive, industrial, medical, networking, and telecommunications applications.
It is compatible with the wire-to-board connector system and can be used with SPOX series crimp housings.
The country of origin for this model is India.
