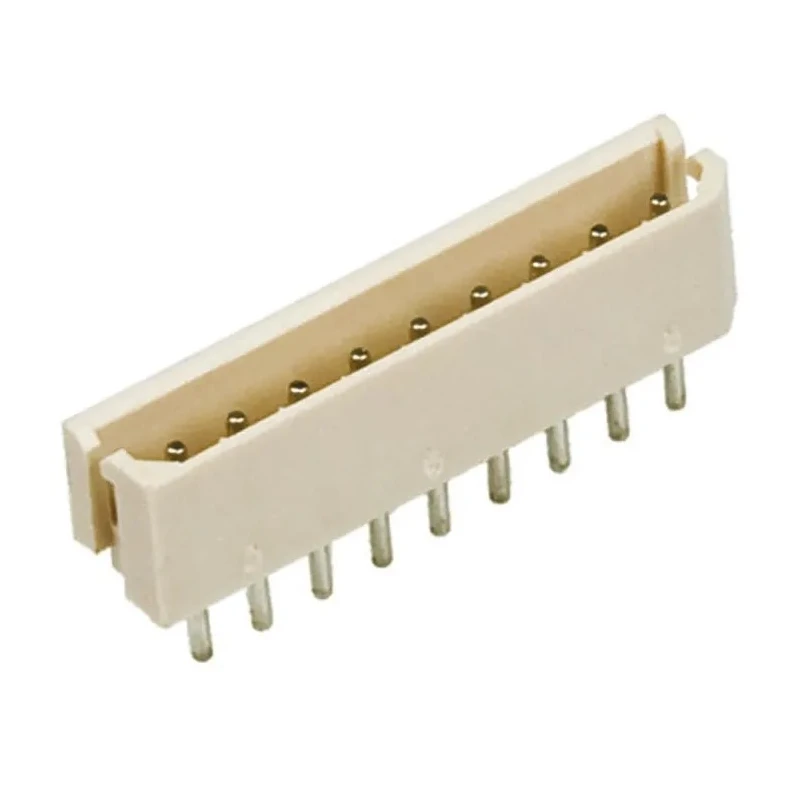

Molex SPOX Series Shrouded Straight Through Hole PCB Header, 14 Contacts, 2.5 mm Pitch, 1 Row, 250 V, 3 A 22-03-5145
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Constructed with a nylon housing for durability and insulation.
- Features brass contacts with tin plating for reliable electrical connection.
- Rated for 250 volts and 3 amperes current.
- Includes a friction lock mechanism and polarization to prevent mismating.
- Suitable for solder termination and offers a male contact gender.
- Operates reliably between -40°C and 105°C temperatures.
- Tail pin length measures 3.5 mm for secure PCB retention.
- Designed for low profile and secure mating in industrial and electronic applications.
Product Description
Molex 22-03-5145 is a SPOX Series shrouded straight through hole PCB header featuring 14 contacts arranged in a single row with a 2.5 mm pitch. This connector is designed for wire-to-board connectivity with a 250 V voltage rating and 3 A current capacity, making it suitable for various electronic and industrial applications.
The connector housing is made of durable nylon, providing excellent insulation and mechanical strength. Contacts are fabricated from brass and plated with tin to ensure reliable electrical performance and corrosion resistance. The shrouded design includes a polarization feature to prevent mismating and a friction lock mechanism for secure connections.
Termination is by solder with male contact gender, and the tail pin length is 3.5 mm to guarantee strong retention on the PCB. Operational temperature range from -40°C to 105°C allows usage in diverse environments.
This product is part of Molex's 5267 and 5268 SPOX series and is ideal for automotive, consumer electronics, data communications, industrial, medical, networking, and telecommunications sectors. The low profile and robust design help improve production efficiency and long-term reliability.
Constructed with a nylon housing for durability and insulation. Features brass contacts with tin plating for reliable electrical connection. Rated for 250 volts and 3 amperes current. Includes a friction lock mechanism and polarization to prevent mismating.
Suitable for solder termination and offers a male contact gender. Operates reliably between -40°C and 105°C temperatures. Tail pin length measures 3.5 mm for secure PCB retention. Designed for low profile and secure mating in industrial and electronic applications.
Packaging typically includes items supplied in a bag, ready for insertion into machinery, enhancing manufacturing efficiency. Explore related Molex connectors and PCB header products through EnvMart for comprehensive electronic component solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for 250 volts and 3 amperes of current.
The pitch size of this header is 2.5 mm.
The housing is made of nylon, while the contacts are fabricated from brass and plated with tin for reliable electrical performance.
The tail pin length measures 3.5 mm, ensuring strong retention on the PCB.
It operates reliably between -40°C and 105°C, making it suitable for diverse environments.
This model uses solder termination for secure connections.
Yes, it includes a friction lock mechanism and polarization to prevent mismating.
This header features 14 contacts arranged in a single row.
The connector system is designed for wire-to-board connectivity.
Yes, it is designed for various applications including industrial, automotive, and telecommunications.
The orientation of this header is straight.
The country of origin for this PCB header is India.
