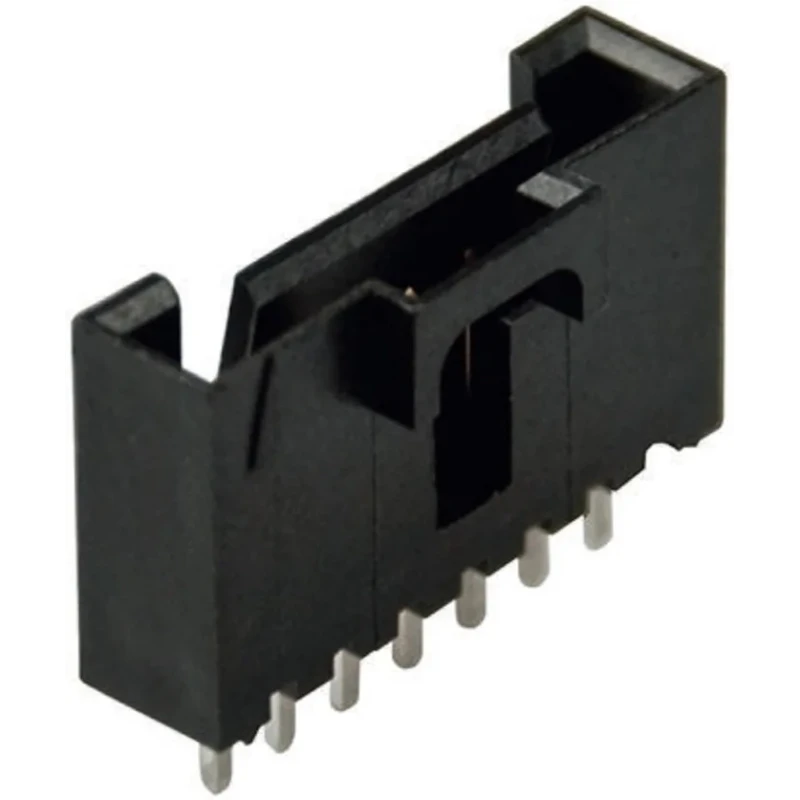

Molex SL Series Straight Through Hole PCB Header, 9 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0008
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Features a glass filled polyester housing for enhanced durability.
- Provides gold-plated phosphor bronze contacts with a current rating of 3A.
- Operates reliably within a temperature range from -40°C to 105°C.
- Through hole mount type ensures secure PCB attachment.
- Male contact gender with solder termination.
- Tail pin length of 3.3mm and mating pin length of 6.1mm.
- Designed for vertical mounting, compatible with Molex 70600G and 70600N series connectors.
- Shrouded design offers protection for contacts and improves connector alignment.
Product Description
Molex 70543-0008 SL Series Straight Through Hole PCB Header is a high-quality, 9 contact connector with a 2.54 mm pitch arranged in a single row. It features a shrouded design and a glass filled polyester housing, ensuring reliable performance in demanding electronic applications requiring wire-to-board connections.
This PCB header supports a current rating of 3A and operates within a wide temperature range from -40°C to 105°C, making it suitable for various industrial, manufacturing, and electronic assembly environments. The phosphor bronze male contacts are gold-plated for excellent conductivity and corrosion resistance, with solder termination type for secure PCB mounting.
It is designed for through hole mounting to provide mechanical stability and ease of installation. The tail pin length of 3.3mm and mating pin length of 6.1mm optimize connectivity with corresponding connectors, specifically the Molex 70600G and 70600N series, enhancing system compatibility.
Glass filled polyester housing enhances the mechanical strength and durability of the header. Gold-plated phosphor bronze contacts ensure low resistance and prolong service life. Shrouded structure protects contacts and improves safety and alignment.
Voltage rating of 250V supports various electronic circuitry requirements. Wide operating temperature range enables use in industrial and commercial electronic devices. Through hole mount provides strong fixture on printed circuit boards.
Compatible with standard Molex mating connectors for integration flexibility. Male contact gender and solder termination facilitate secure connections.
This Molex SL Series PCB Header is widely used in industries such as electronics manufacturing, industrial automation, and electronic equipment repair. It ensures robust and durable wire-to-board connections for PCBs in computers, controllers, and industrial machines.
Explore more Molex connectors and SL series products at EnvMart to find compatible components for your electronic assembly and design projects.
