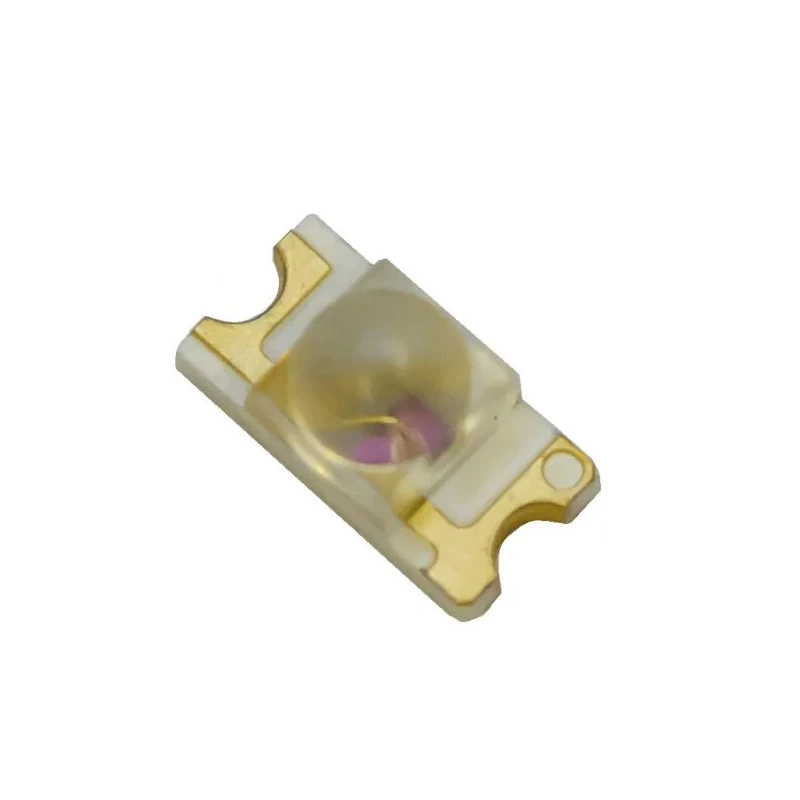

OSA Opto 855 nm Infrared LED Surface Mount 1206 Package OIS-330-IT855-X-TU
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.9mm |
| Brand | OSA Opto |
| Model | OIS-330-IT855-X-TU |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape |
| Mount Type | Surface |
| Series | OIS-330 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Peak Wavelength | 855nm |
| Radiant Flux | 27mW |
| LED Material | InGaN, GaAlAs, GaP, AlInGaP |
| Radiant Intensity | 30mW/sr |
| view angle | 40° |
| soldering pads | gold plated |
Key Features
- Peak wavelength of 855 nm ensures effective infrared emission.
- Radiant flux of 27 mW provides high brightness output.
- Radiant intensity rated at 30 mW/sr ensures strong directional emission.
- Compact 1206 package size (3.2 mm x 1.6 mm x 1.9 mm) fits standard SMT assembly methods.
- Dome-shaped lens with a 40° viewing angle optimizes light distribution.
- Manufactured using advanced semiconductor materials including InGaN, GaAlAs, GaP, and AlInGaP.
- Gold plated solder pads enhance mounting quality and reliability.
- Single LED device with two pins designed for surface mount assembly.
Product Description
OSA Opto OIS-330-IT855-X-TU is a high quality Infrared (IR) LED with a peak wavelength of 855 nm housed in a compact 1206 surface mount package. It emits a radiant flux of 27 mW and radiant intensity of 30 mW/sr, making it ideal for applications requiring strong infrared light output. The dome lens shape and 40° viewing angle optimize the LED's light distribution characteristics.
The LED is constructed using semiconductor materials such as Indium Gallium Nitride (InGaN), Gallium Aluminium Arsenide (GaAlAs), Gallium Phosphide (GaP), and Aluminium Indium Gallium Phosphide (AlInGaP), offering reliable performance and durability. Gold plated soldering pads facilitate superior connectivity and are compatible with all standard surface mount technology (SMT) assembly methods.
This device is supplied as a single LED with two pins and is packaged on tape to support automated manufacturing processes. Its small size of 3.2 mm by 1.6 mm by 1.9 mm enables compact circuit designs and efficient board space utilization.
OSA Opto specializes in a broad range of high brightness and high power LED chips and modules across visible and infrared spectra to support diverse industrial, manufacturing, electronics assembly, sensing, and communication applications.
Peak wavelength of 855 nm. Radiant flux is 27 mW. Radiant intensity at 30 mW/sr. 1206 size surface mount package measuring 3.2 × 1.6 × 1.9 mm. Dome lens with 40 degree viewing angle. LED material: InGaN, GaAlAs, GaP, and AlInGaP.
Gold plated soldering pads for reliable mounting. Supplied on tape for automated assembly. Single LED with 2 pins for SMT assembly. OSA Opto continues to innovate in LED materials and packaging technologies to meet demanding use cases in electronics manufacturing and lighting.
Explore more in electronic components and LEDs with OSA Opto's extensive product range available at EnvMart.
Explore more products in our Infrared LED category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 855 nm, ensuring effective infrared emission.
This model has a radiant flux of 27 mW, providing high brightness output.
The radiant intensity is rated at 30 mW/sr, ensuring strong directional emission.
The LED is housed in a compact 1206 package measuring 3.2 mm x 1.6 mm x 1.9 mm.
It features a dome-shaped lens with a 40° viewing angle, optimizing light distribution.
The LED is constructed using semiconductor materials including InGaN, GaAlAs, GaP, and AlInGaP.
This model has two pins designed for surface mount assembly.
It has gold plated soldering pads, enhancing mounting quality and reliability.
The LED is supplied on tape to support automated manufacturing processes.
The mount type for this model is surface mount, suitable for standard SMT assembly methods.
This LED belongs to the OIS-330 series, which includes high brightness and high power LED chips.
The country of origin for this LED is India.
