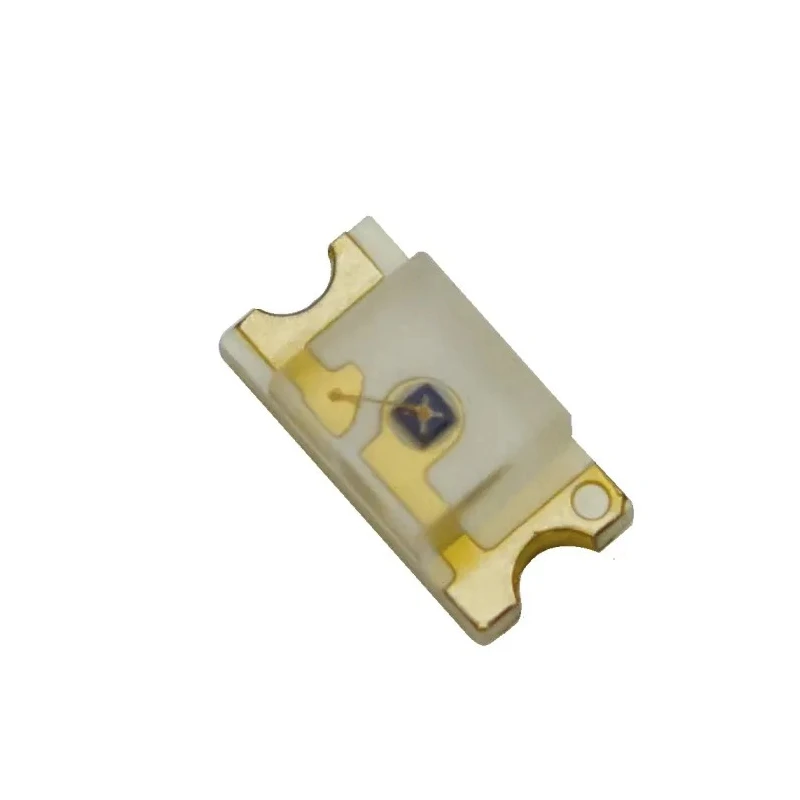

OSA Opto Infrared LED 1300 nm Radiant Flux 1.5 mW Radiant Intensity 0.5 mW/sr 1206 Surface Mount Package OIS-150-1300p-X-T
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.2mm |
| Brand | OSA Opto |
| Model | OIS-150-1300p-X-T |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape |
| Mount Type | Surface |
| Series | OIS-150 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Number of Pins | 2 |
| Lens Shape | Square |
| Peak Wavelength | 1300nm |
| Radiant Flux | 1.5mW |
| LED Material | InGaN, GaP, GaAlAs, AlInGaP |
| Radiant Intensity | 0.5mW/sr |
| view angle | 140° |
| soldering pads | gold plated |
| circuit substrate | glass laminated epoxy |
| Lead free solderable, soldering pads | gold plated |
| taping | face-up(TU) or face-down(TD) possible |
Key Features
- Operating at a peak wavelength of 1300 nm for infrared applications.
- Radiant flux of 1.5 mW providing efficient light output.
- Radiant intensity rated at 0.5 mW/sr for precise directional emission.
- Compact 1206 surface mount package measuring 3.2 mm x 1.6 mm x 1.2 mm.
- Gold plated soldering pads compatible with all SMT assembly methods.
- Square lens shape with a wide 140° viewing angle.
- Constructed using advanced LED materials including InGaN, GaP, GaAlAs, and AlInGaP.
- Circuit substrate made of glass laminated epoxy ensuring durability.
Product Description
OSA Opto presents the OIS-150-1300p-X-T infrared LED featuring a peak wavelength of 1300 nm, delivering a radiant flux of 1.5 mW with a radiant intensity of 0.5 mW/sr. Packaged in a standard 1206 surface mount device, this IR LED is designed for efficient emission and integration into SMT assemblies.
Measuring 3.2 mm by 1.6 mm by 1.2 mm, the LED utilizes a square lens shape providing a broad 140 degree viewing angle, suitable for a variety of electronic and optoelectronic equipment. Gold plated soldering pads ensure excellent solderability and reliability in automated mounting processes.
Constructed using advanced semiconductor materials such as InGaN, GaP, GaAlAs, and AlInGaP, the LED achieves high brightness and consistency. The circuit substrate is composed of glass laminated epoxy, enhancing thermal and mechanical stability during operation.
Additional product features include lead-free solderable pads and flexible tape packaging with face-up or face-down taping options to meet diverse manufacturing requirements.
This Infrared LED is well suited for applications in industrial electronics, power connectors, displays, optoelectronics, and other high-reliability LED systems. It complies with RoHS standards and offers no automotive certifications.
Operating at 1300 nm peak wavelength for infrared emission. Radiant flux of 1.5 mW with radiant intensity 0.5 mW/sr. 1206 surface mount package sized 3.2 × 1.6 × 1.2 mm. Gold plated soldering pads compatible with SMT assembly.
Wide viewing angle of 140 degrees with square lens shape. Advanced materials including InGaN, GaP, GaAlAs, AlInGaP. Glass laminated epoxy circuit substrate for durability. Lead-free soldering pads and flexible taping options.
Ideal for industrial electronics and optoelectronic devices. Explore the extensive range of IR LEDs and electronic components at EnvMart for innovative and reliable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 1300 nm, making it suitable for infrared applications.
This model has a radiant flux of 1.5 mW, providing efficient light output for various applications.
The radiant intensity is rated at 0.5 mW/sr, allowing for precise directional emission.
The dimensions of the surface mount package are 3.2 mm x 1.6 mm x 1.2 mm.
The LED is constructed using advanced materials including InGaN, GaP, GaAlAs, and AlInGaP.
It features a wide viewing angle of 140 degrees, thanks to its square lens shape.
This infrared LED has gold plated soldering pads, which are compatible with all SMT assembly methods.
The circuit substrate is made of glass laminated epoxy, enhancing thermal and mechanical stability during operation.
Flexible taping options include face-up (TU) or face-down (TD) configurations to meet diverse manufacturing requirements.
This model includes one LED per package.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
This infrared LED is well suited for applications in industrial electronics, power connectors, displays, and optoelectronics.
