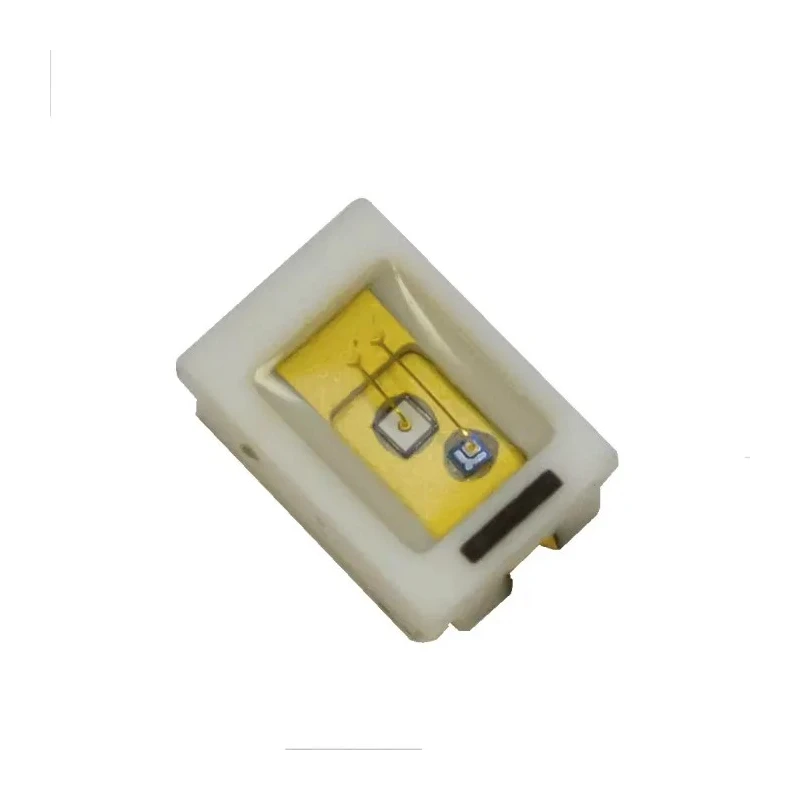

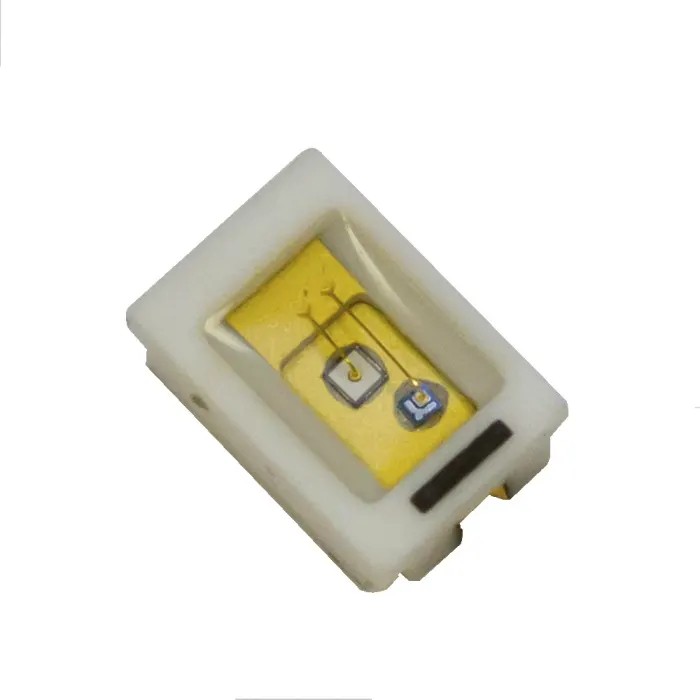

OSA Opto UV LED 367 nm 10 mW 1-LED Surface Mount 2-Pin Ceramic Package OCU-400-UE365-X-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | OSA Opto |
| Height | 1mm |
| Length | 3mm |
| Model | OCU-400-UE365-X-T |
| Packaging | Taped in 8 mm Blister Tape |
| Width | 2mm |
| Mount Type | Surface |
| Series | OCU-400 |
| Number Of Leds | 1 |
| Package Type | Surface Mount |
| Standards/Approvals | RoHs and Reach |
| Number of Pins | 2 |
| Lens Shape | Square |
| Peak Wavelength | 367nm |
| Radiant Flux | 10mW |
| LED Material | Aluminium Oxide (Ceramic) |
| UV Type | Ultraviolet |
Key Features
- The LED has a peak wavelength of 367 nm and a radiant flux of 10 mW.
- It features a ceramic aluminium oxide LED material with a square lens shape for optimal UV light emission.
- The compact package has dimensions of 3 mm length, 2 mm width, and 1 mm height suitable for surface mounting.
- The device includes 2 pins and is taped in 8 mm blister tape for automated assembly.
- Designed for cosmetic curing, industrial curing, forensics, plant growth and sterilisation applications.
- Lead-free soldering pads are gold-plated, ensuring reliability and environmental compliance.
- All devices are sorted into luminous intensity classes for consistent performance.
- The substrate is made of AI2O3 ceramics with AIN ceramic encapsulation for durability.
Product Description
OSA Opto OCU-400-UE365-X-T is a high-performance UV LED with a peak wavelength of 367 nm and radiant flux of 10 mW. This 1-LED device features a 2-pin surface mount package constructed with aluminium oxide (ceramic) LED material for durable and efficient ultraviolet emission.
Its package dimensions measure 3 mm in length, 2 mm in width, and 1 mm height, making it suitable for surface mounting in compact electronic assemblies. The device is supplied taped in 8 mm blister tape, face up, facilitating automated placement and soldering processes.
The LED’s square lens design enhances light extraction efficiency, making it ideal for applications such as cosmetic curing, industrial curing, forensic analysis, plant growth enhancement, security, and sterilisation processes. The lead-free solderable gold-plated pads provide environmental compliance and reliable electrical contacts.
The OCU-400 series devices are sorted into luminous intensity classes to guarantee uniformity and predictable performance across batches. The circuit substrate comprises AI2O3 ceramics with AIN ceramics encapsulation, offering excellent thermal management and mechanical stability.
Certified under RoHS and Reach standards, this UV LED is suitable for industrial and laboratory use requiring precise ultraviolet light. The product provides a modern discrete power device alternative and can be integrated into conventional or chip-on-board (COB) technologies as customized solutions.
The LED has a peak wavelength of 367 nm and an output radiant flux of 10 mW. Its package is a ceramic surface mount type with dimensions 3 x 2 x 1 mm (LxWxH). Equipped with 2 pins and supplied on an 8 mm blister tape for streamlined manufacturing.
Constructed with aluminium oxide ceramic LED material and AIN ceramic encapsulation. Complies with RoHS and Reach environmental standards. Ideal for cosmetic curing, forensics, industrial curing, plant growth, security, and sterilisation.
All devices undergo luminous intensity classification for quality assurance. Lead-free soldering pads with gold plating offer durability and environmental safety. Compatible with conventional discrete power devices or COB technology applications.
Explore our wide range of UV LEDs and optoelectronic components available at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this UV LED is 367 nm.
This model has a radiant flux output of 10 mW.
The package dimensions are 3 mm in length, 2 mm in width, and 1 mm in height.
This unit features 2 pins for connection.
It is constructed from aluminium oxide ceramic material and features AIN ceramic encapsulation.
It is designed for applications such as cosmetic curing, industrial curing, forensic analysis, plant growth enhancement, security, and sterilisation processes.
Yes, it is certified under RoHS and Reach standards, ensuring environmental compliance.
The LED is taped in 8 mm blister tape for automated assembly.
The lens shape of this model is square, which enhances light extraction efficiency.
This unit uses a surface mount type for installation.
It belongs to the OCU-400 series, which ensures luminous intensity classification for consistent performance.
The country of origin for this product is India.
