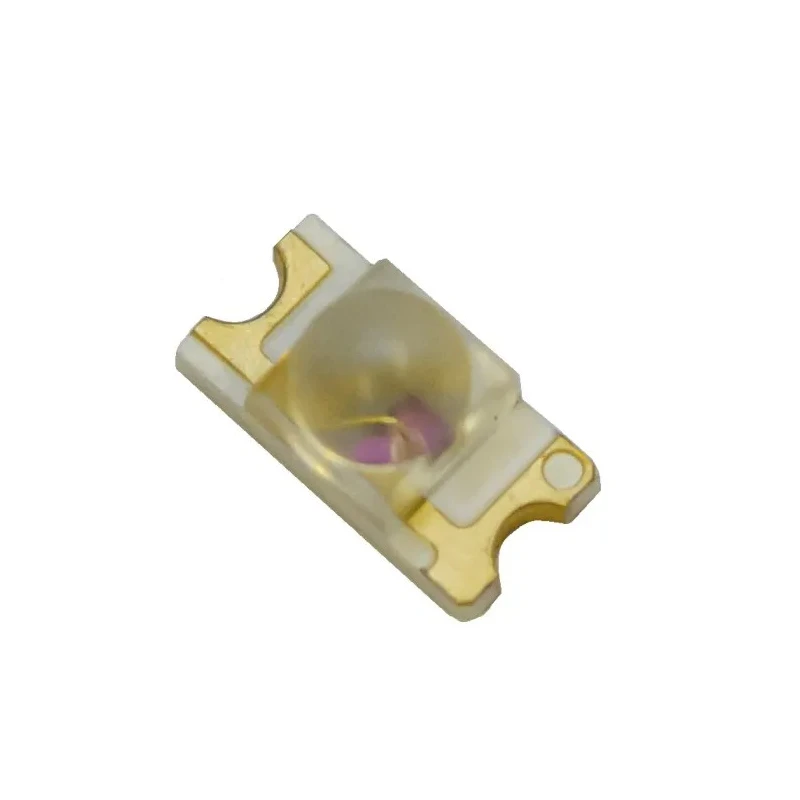

OSA Opto 880 nm IR LED 1206 Surface Package OIS-330-880-X-TU
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.9mm |
| Brand | OSA Opto |
| Model | OIS-330-880-X-TU |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape |
| Mount Type | Surface |
| Series | OIS-330 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Maximum Supply Voltage | 1.7V |
| Peak Wavelength | 880nm |
| LED Material | GaP, GaAlAs, AlInGaP, InGaN |
| Radiant Intensity | 14mW/sr |
| view angle | 40° |
| soldering pads | gold plated |
| circuit substrate | glass laminated epoxy |
| Lead free solderable, soldering pads | gold plated |
| taping | face-up(TU) or face-down(TD) possible |
Key Features
- Peak wavelength of 880 nm suitable for infrared applications.
- Single LED in a compact 1206 surface mount package.
- Gold plated soldering pads ensure superior connectivity.
- Glass laminated epoxy circuit substrate with dome-shaped lens.
- High radiant intensity of 14 mW/sr with a 40° viewing angle.
- Maximum supply voltage rating of 1.7 V for safe operation.
- Lead free solderable and compatible with all SMT assembly methods.
- Reel packaging with tape and face-up or face-down taping options.
Product Description
OSA Opto OIS-330-880-X-TU is a high-performance infrared (IR) LED emitting at 880 nm wavelength, available in a 1206 surface mount package. It is designed for demanding industrial, manufacturing, and electronics environments where reliable IR emission is needed for sensing, communication, or illumination.
This IR LED features a compact size of 3.2 mm × 1.6 mm × 1.9 mm, making it suitable for space-constrained PCB assemblies. The dome-shaped lens provides a focused 40° view angle, optimizing radiant intensity which reaches 14 mW/sr. The device utilizes advanced semiconductor materials including GaP, GaAlAs, AlInGaP, and InGaN to deliver consistent performance.
It incorporates a glass laminated epoxy circuit substrate and gold plated soldering pads which enable strong solder joints and durability. The LED is fully lead free solderable, supporting environment-friendly manufacturing practices. It can be mounted using face-up (TU) or face-down (TD) taping methods and is supplied on an 8 mm tape reel to facilitate automated SMT assembly processes.
Peak wavelength: 880 nm for IR applications. Package size: 1206 (3.2 mm x 1.6 mm x 1.9 mm). Radiant intensity: 14 mW/sr with dome lens and 40° viewing angle. Gold plated soldering pads and glass laminated epoxy substrate.
Lead free and compatible with all SMT assembly processes. Reel packaging with flexible taping options.
This IR LED from OSA Opto supports advanced electronics manufacturing and is suitable for industrial, laboratory, electronic components, manufacturing, and optoelectronic device integration. Navigate EnvMart’s Electronics Components category for more IR LEDs and related optoelectronic products.
Explore more products in our Infrared LED category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the OSA Opto OIS-330-880-X-TU infrared LED is 880 nm, making it suitable for various infrared applications.
This infrared LED has a radiant intensity of 14 mW/sr, optimized by its dome-shaped lens and 40° viewing angle.
The dimensions of this infrared LED are 3.2 mm x 1.6 mm x 1.9 mm, which makes it compact for space-constrained PCB assemblies.
The maximum supply voltage rating for this model is 1.7 V, ensuring safe operation in various applications.
It is supplied on an 8 mm tape reel, with options for face-up (TU) or face-down (TD) taping methods to facilitate automated SMT assembly processes.
The LED is constructed using advanced semiconductor materials including GaP, GaAlAs, AlInGaP, and InGaN, along with a glass laminated epoxy circuit substrate.
This model supports surface mount (SMT) installation, making it suitable for various electronic applications.
The lens shape of this infrared LED is dome-shaped, which helps to focus the emitted infrared light effectively.
Yes, the OIS-330-880-X-TU is lead-free solderable, supporting environmentally friendly manufacturing practices.
This model contains a single LED in its compact 1206 surface mount package.
The viewing angle of this infrared LED is 40°, which optimizes its radiant intensity for various applications.
This infrared LED is suitable for industrial, laboratory, electronic components, manufacturing, and optoelectronic device integration applications.
