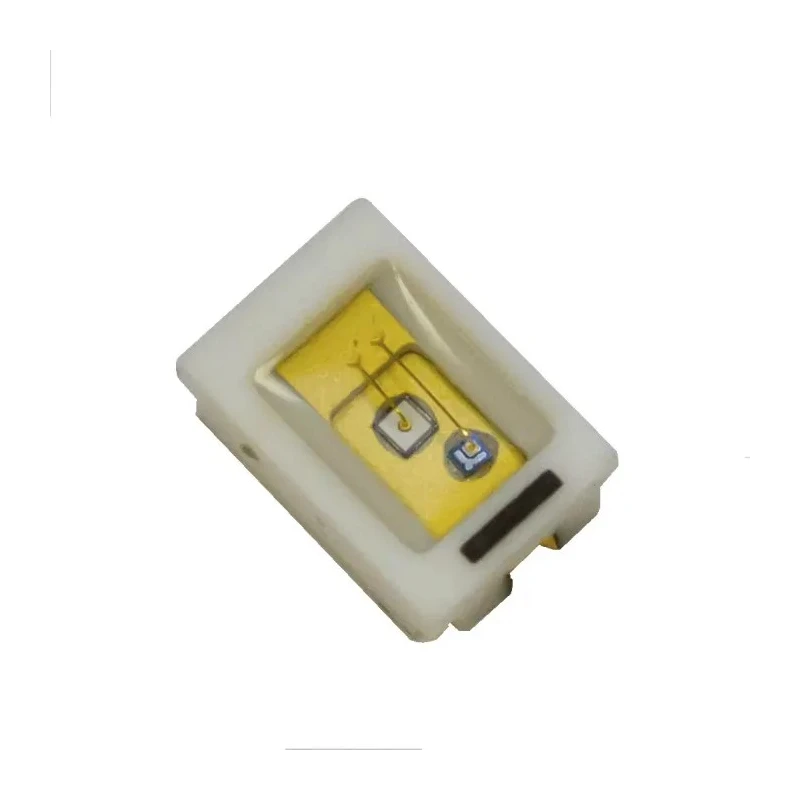

OSA Opto UV LED 380 nm 1-LED Surface Mount 2-Pin Aluminium Oxide (Ceramic) OCU-400-UC375-X-T

OSA Opto OCU-400-UC375-X-T is a high-quality UV LED from the OCU-400 series, designed for electronic applications requiring ultraviolet light emission at a peak wavelength of 380 nm. The device features a single LED housed in a surface mount package with a robust aluminium oxide ceramic substrate, ensuring excellent thermal performance and longevity. With dimensions of 3 mm length, 2 mm width, and 1 mm height, it is optimized for compact PCB designs in industrial, laboratory, medical, and commercial electronics.

This UV LED is designed with a square lens shape to provide precise illumination and efficient light output. The device includes 2 gold-plated pins to ensure reliable electrical contact and superior solderability under lead-free processes. Compliance with RoHS and REACH regulations confirms that the product meets stringent environmental and safety standards, making it suitable for eco-conscious manufacturing.

Packaged in an 8 mm taped blister format with face-up orientation, the device is convenient for automated assembly lines and various electronic manufacturing setups. Its construction makes it suitable for a wide range of applications including UV curing, sensing, sterilization, and inspection in industrial and scientific equipment. The ceramic substrate offers excellent resistance to thermal and mechanical stresses, enhancing reliability in demanding conditions.

The device is sorted into luminous intensity classes for consistent performance. Circuit substrate is sealed with aluminium oxide (AIO2O3) ceramic for stability. Encapsulation uses silicone for protection and durability.

Lead-free soldering pads enhance environmental compliance and manufacturing safety. Soldering pads are gold plated to ensure optimal electrical and mechanical connection. The LED is taped in 8 mm blister tape with face-up (T) orientation for easy handling.

OSA Opto’s OCU-400 series UV LED devices are ideal for integration in electronics ranging from consumer products to specialized industrial systems. Their compact size and reliable performance make them a preferred choice for applications requiring ultraviolet light in a robust surface mount format.
