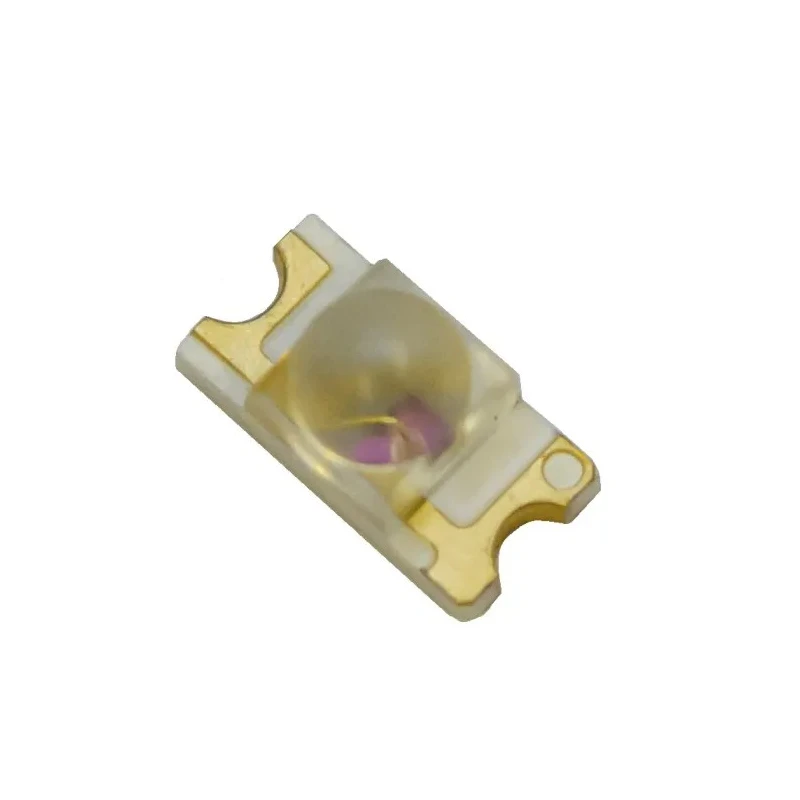

OSA Opto 1050 nm Infrared LED 1206 Surface Mount Package OIS-330-1050p-X-TU
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.9mm |
| Brand | OSA Opto |
| Model | OIS-330-1050p-X-TU |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape and Reel |
| Mount Type | Surface |
| Series | OIS-330 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Standards/Approvals | REACH, RoHS |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 1050nm |
| LED Material | InGaN, GaP, GaAlAs, AlInGaP |
| Angle of half intensity | 40° |
| Radiant Intensity | 7.2mW/sr |
| view angle | 40° |
| soldering pads | gold plated |
Key Features
- Peak wavelength of 1050 nm ensures targeted IR emission.
- Compact 1206 surface mount package measuring 3.2 mm x 1.6 mm x 1.9 mm.
- Radiant intensity of 7.2 mW/sr provides strong IR output.
- Gold plated soldering pads optimize conductivity and durability.
- Wide half intensity angle of 40 degrees allows for broad IR coverage.
- Single LED configuration with 2 pins and dome lens shape.
- Constructed using InGaN, GaP, GaAlAs, and AlInGaP semiconductor materials.
- Maximum supply voltage of 5 V suitable for low voltage electronics.
Product Description
OSA Opto OIS-330-1050p-X-TU is a high-performance infrared LED with a peak wavelength of 1050 nm, packaged in a standard 1206 surface mount package. It is designed to provide efficient and reliable IR emission for electronic, optical, and sensing applications. The LED features a radiant intensity of 7.2 mW/sr, ensuring sufficient IR output for industrial and laboratory use.
The compact size of 3.2 mm x 1.6 mm x 1.9 mm and the surface mount design make it compatible with modern SMT assembly techniques. Gold plated soldering pads enhance electrical connectivity and longevity. Its dome-shaped lens offers a viewing angle of 40 degrees, delivering broad IR coverage suitable for precision sensing and signaling systems.
Constructed with advanced semiconductor materials including InGaN, GaP, GaAlAs, and AlInGaP, this LED meets stringent quality and environmental regulations such as REACH and RoHS. Its maximum supply voltage is rated at 5 V, making it suitable for integration into low voltage circuits in electronics manufacturing.
This product is supplied in tape and reel packaging, optimized for automated pick-and-place assembly lines in industrial and manufacturing environments. IR LEDs like this are widely utilized in remote controls, security systems, optical communication, and various sensing applications within industrial, commercial, and laboratory settings.
Peak wavelength of 1050 nm ensures targeted IR emission. Compact 1206 surface mount package measuring 3.2 mm x 1.6 mm x 1.9 mm. Radiant intensity of 7.2 mW/sr provides strong IR output. Gold plated soldering pads optimize conductivity and durability.
Wide half intensity angle of 40 degrees allows for broad IR coverage. Single LED configuration with 2 pins and dome lens shape. Constructed using InGaN, GaP, GaAlAs, and AlInGaP semiconductor materials. Maximum supply voltage of 5 V suitable for low voltage electronics.
Complies with REACH and RoHS environmental standards. Designed for surface mount technology (SMT) assembly methods with tape and reel packaging. Explore more high-quality optoelectronics and IR LEDs on EnvMart to find components tailored for your industrial, laboratory, and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 1050 nm, ensuring targeted IR emission.
The dimensions of the 1206 surface mount package are 3.2 mm x 1.6 mm x 1.9 mm.
This model has a radiant intensity of 7.2 mW/sr, providing strong IR output.
The maximum supply voltage for this infrared LED is 5 V, making it suitable for low voltage electronics.
This LED is constructed using advanced semiconductor materials including InGaN, GaP, GaAlAs, and AlInGaP.
The angle of half intensity for the emitted IR light is 40 degrees, allowing for broad IR coverage.
This infrared LED features a single LED configuration with 2 pins.
The LED is equipped with a dome-shaped lens, which provides a viewing angle of 40 degrees.
This infrared LED complies with REACH and RoHS environmental standards.
It is supplied in tape and reel packaging, optimized for automated pick-and-place assembly lines.
This model uses a surface mount type, suitable for modern SMT assembly techniques.
This infrared LED belongs to the OIS-330 series.
